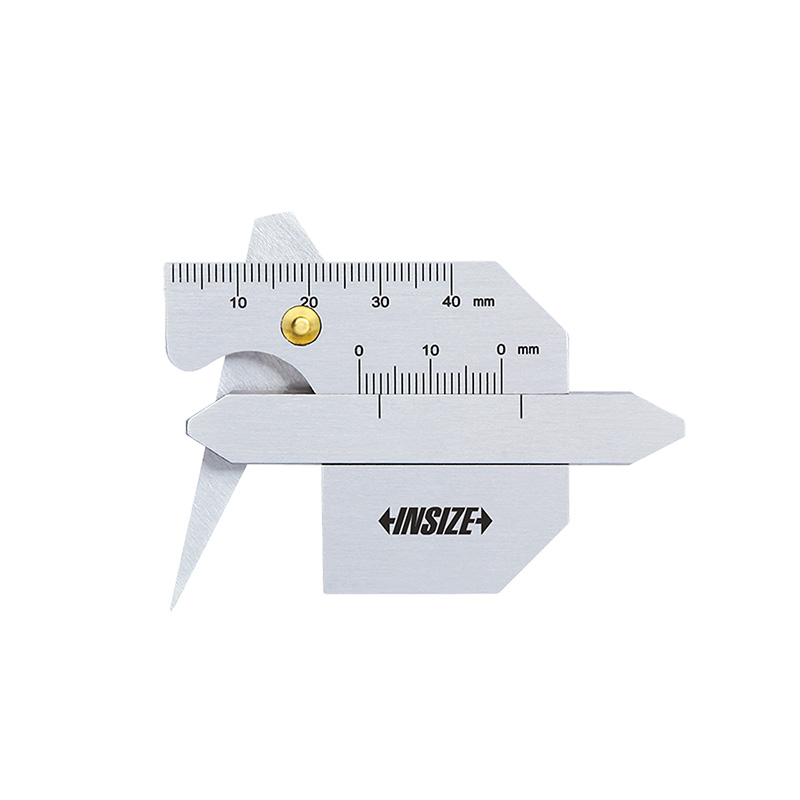

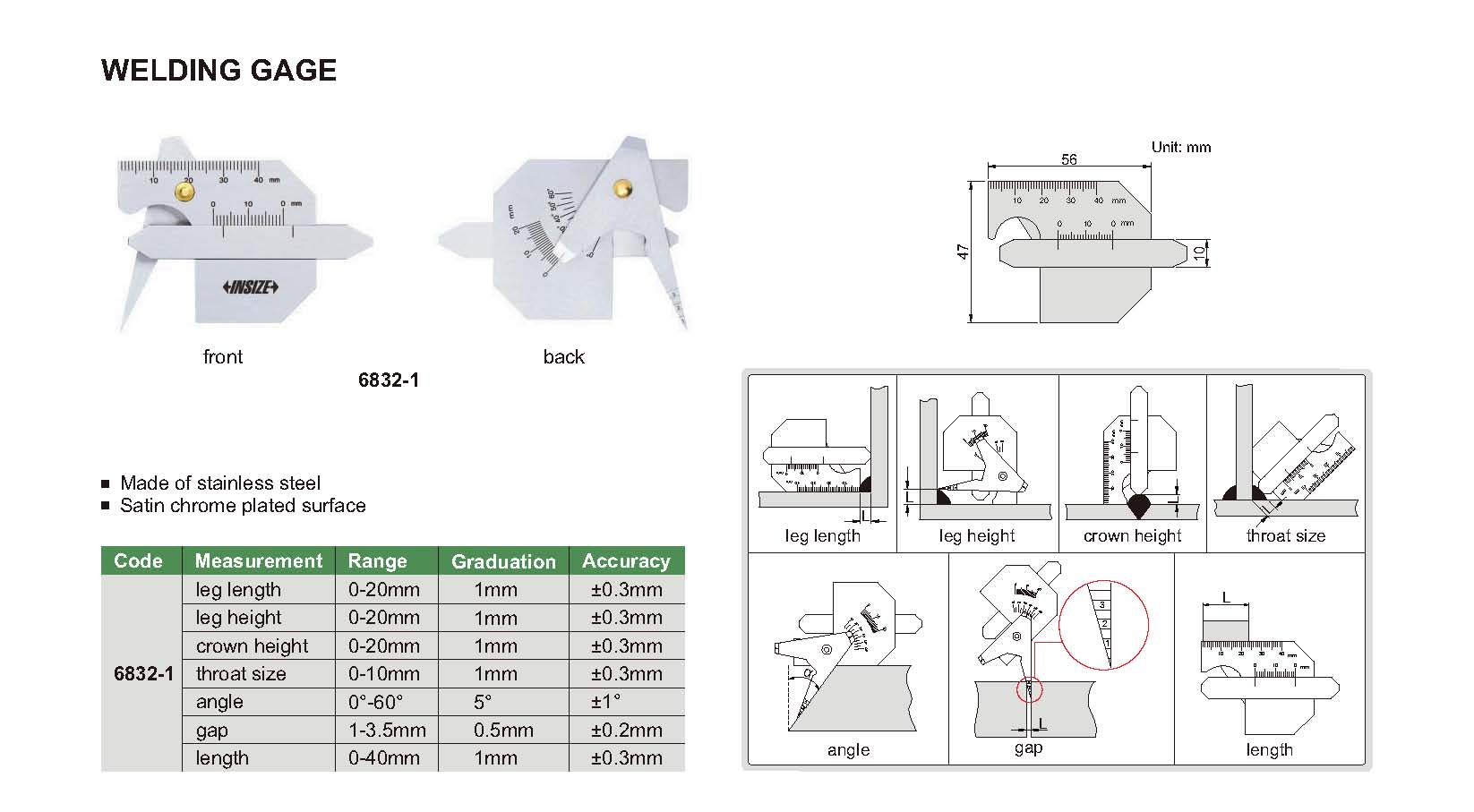

Welding Gauge
Code: 6832-1
Made of stainless steel
Satin chrome plated surface
| Code | Range | Accuracy | Graduation | Measurement |
|---|---|---|---|---|
| 6832-1 | 0-20mm | ±0.3mm | 1mm | leg length |
| 6832-1 | 0-20mm | ±0.3mm | 1mm | leg height |
| 6832-1 | 0-20mm | ±0.3mm | 1mm | crown height |
| 6832-1 | 0-10mm | ±0.3mm | 1mm | throat size |
| 6832-1 | 0°-60° | ±1° | 5° | angle |
| 6832-1 | 1-3.5mm | ±0.2mm | 0.5mm | gap |
| 6832-1 | 0-40mm | ±0.3mm | 1mm | length |
