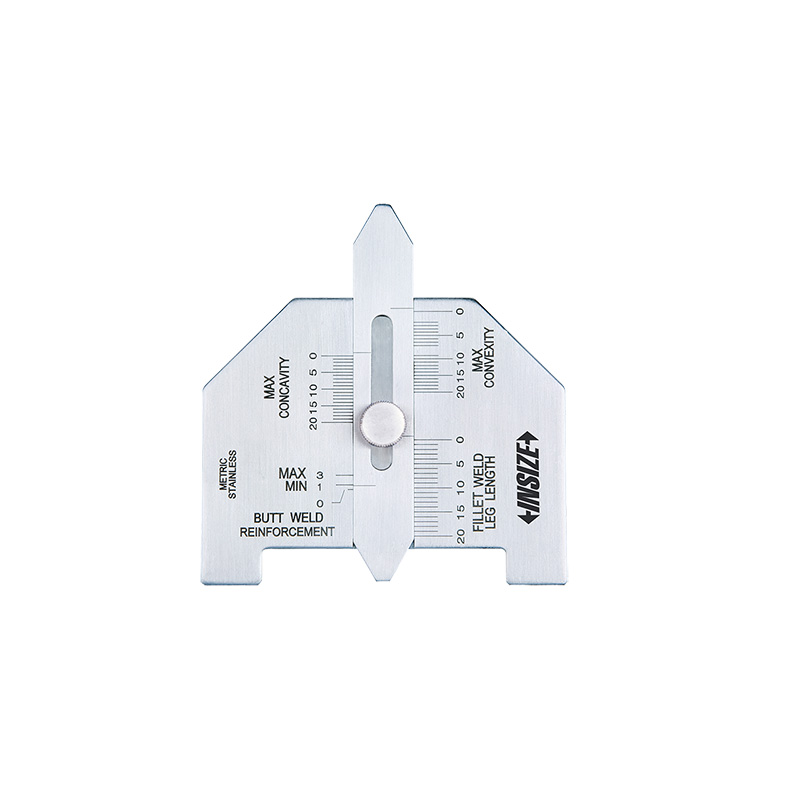

Welding Gauge
Code: 4851-1
Made of stainless steel

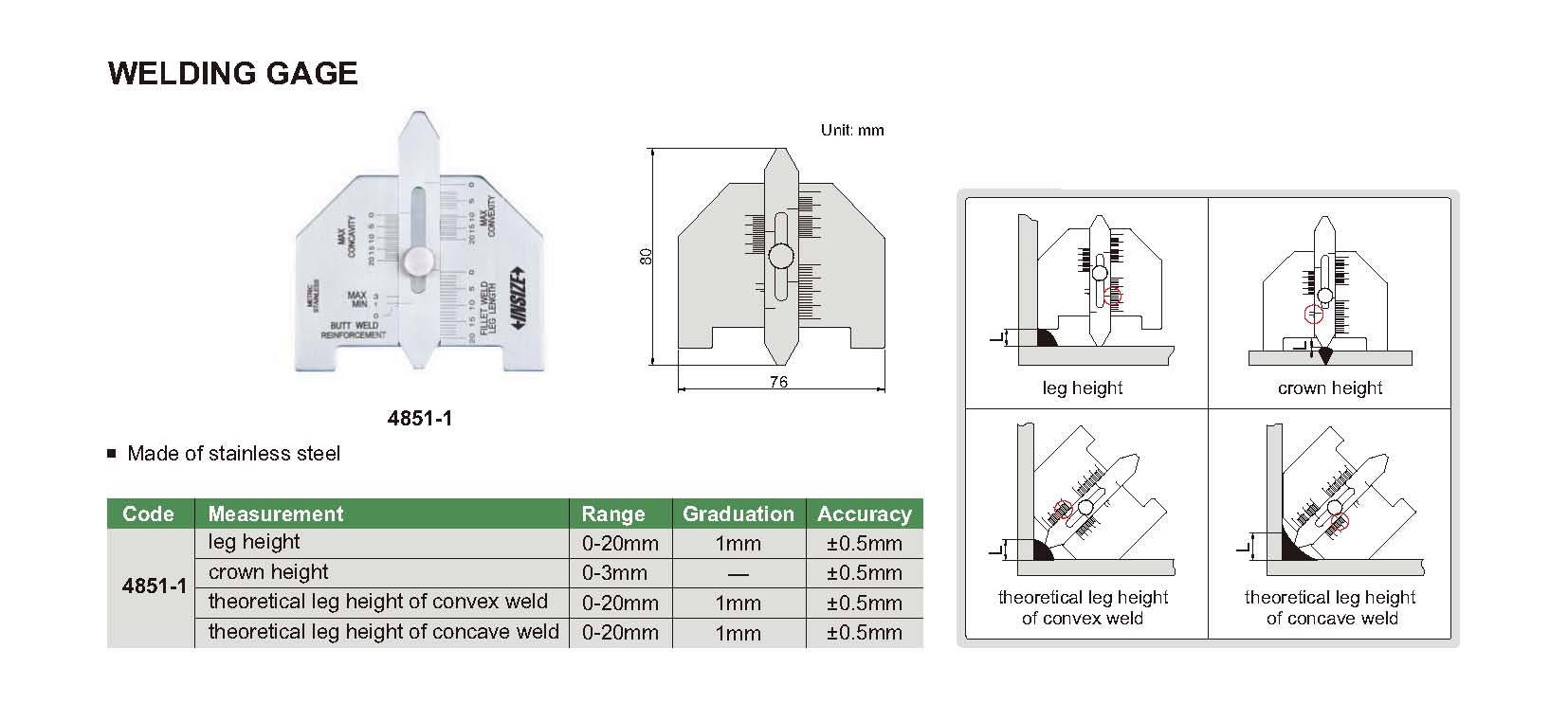

| Code | Range | Accuracy | Graduation | Measurement |
|---|---|---|---|---|
| 4851-1 | 0-20mm | ±0.5mm | 1mm | leg height |
| 4851-1 | 0-3mm | ±0.5mm | — | crown height |
| 4851-1 | 0-20mm | ±0.5mm | 1mm | theoretical leg height of convex weld |
| 4851-1 | 0-20mm | ±0.5mm | 1mm | theoretical leg height of concave weld |
