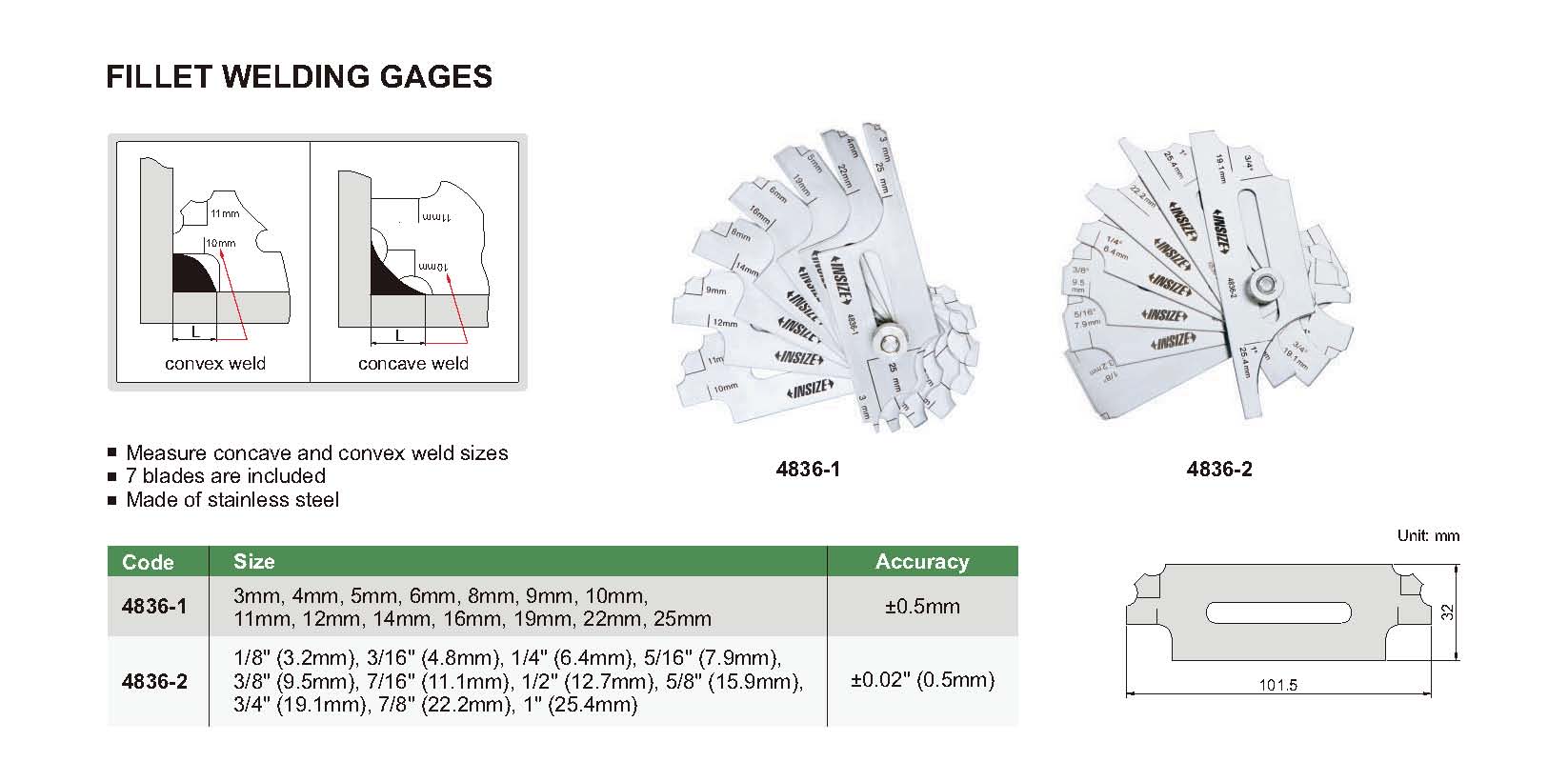

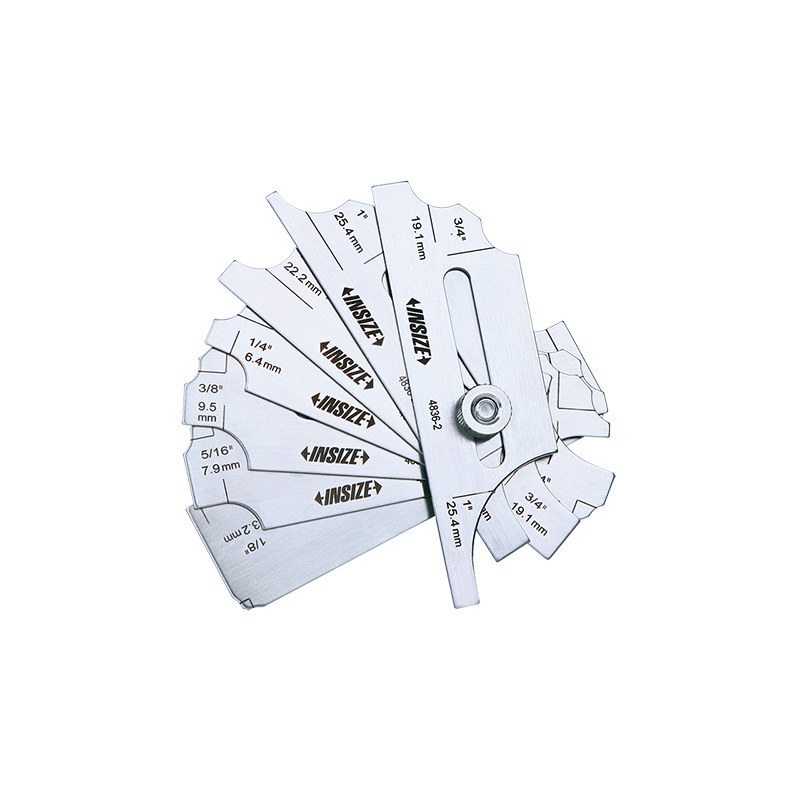

Fillet Welding Gauges
Code: 4836
Measure concave and convex weld sizes
7 blades are included
Made of stainless steel
| Code | Accuracy | Size |
|---|---|---|
| 4836-1 | ±0.5mm | 3mm, 4mm, 5mm, 6mm, 8mm, 9mm, 10mm, 11mm, 12mm, 14mm, 16mm, 19mm, 22mm, 25mm |
| 4836-2 | ±0.02" (0.5mm) | 1/8" (3.2mm), 3/16" (4.8mm), 1/4" (6.4mm), 5/16" (7.9mm), 3/8" (9.5mm), 7/16" (11.1mm), 1/2" (12.7mm), 5/8" (15.9mm), 3/4" (19.1mm), 7/8" (22.2mm), 1" (25.4mm) |
