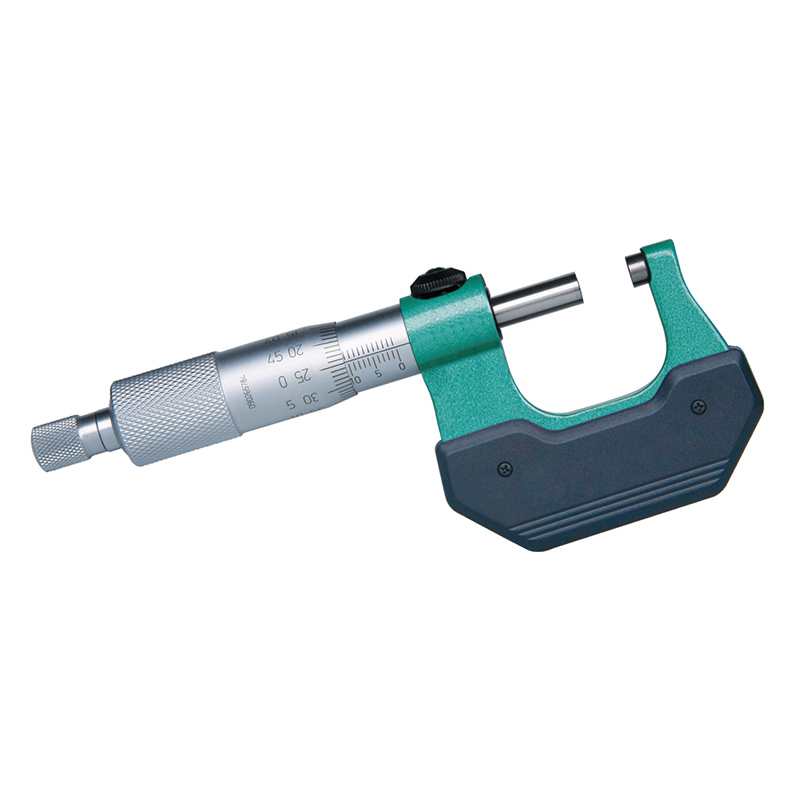

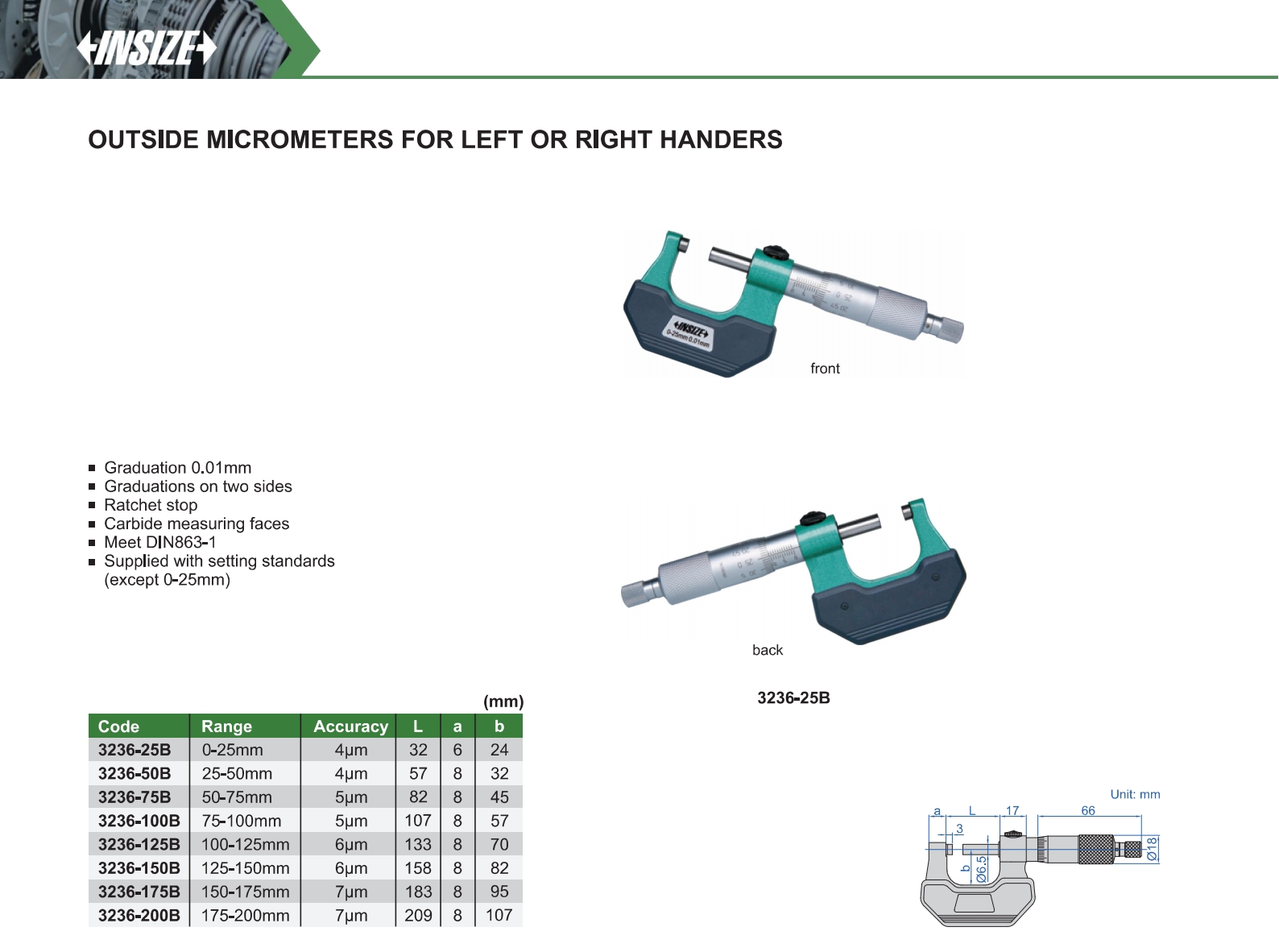

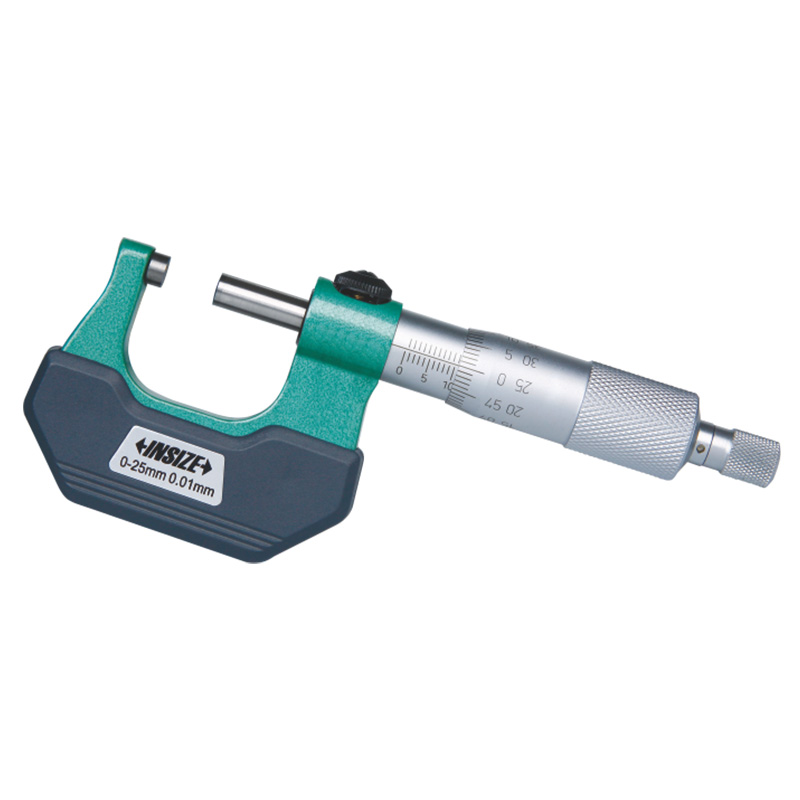

Outside Micrometers For Left Or Right Handers
Code: 3236
Graduations on two sides
Ratchet stop
Carbide measuring faces
Meet DIN863-1
Supplied with setting standards (except 0-25mm)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3236-25B | 0-25mm | 4μm | 0.01mm |
| 3236-50B | 25-50mm | 4μm | 0.01mm |
| 3236-75B | 50-75mm | 5μm | 0.01mm |
| 3236-100B | 75-100mm | 5μm | 0.01mm |
| 3236-125B | 100-125mm | 6μm | 0.01mm |
| 3236-150B | 125-150mm | 6μm | 0.01mm |
| 3236-175B | 150-175mm | 7μm | 0.01mm |
| 3236-200B | 175-200mm | 7μm | 0.01mm |
