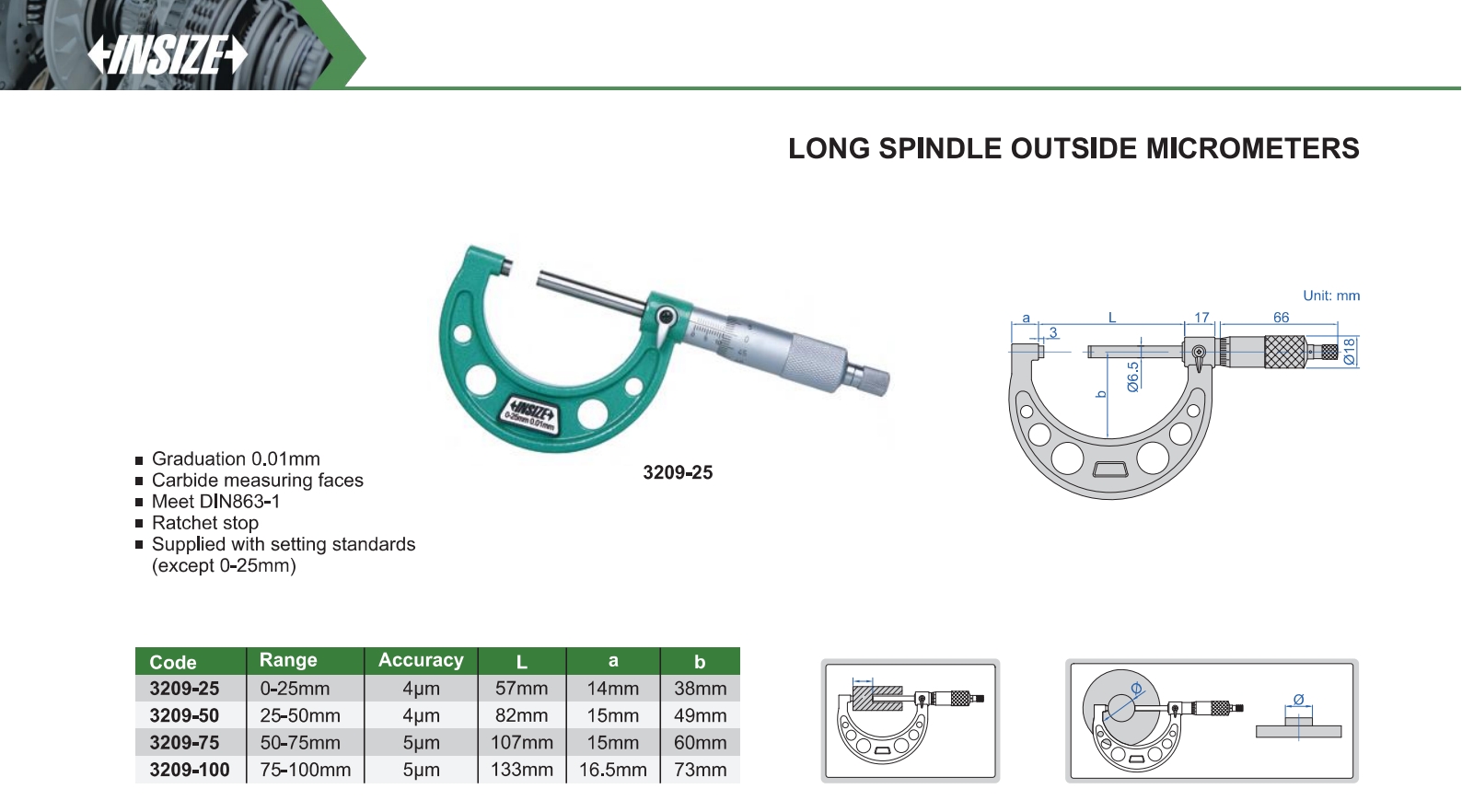

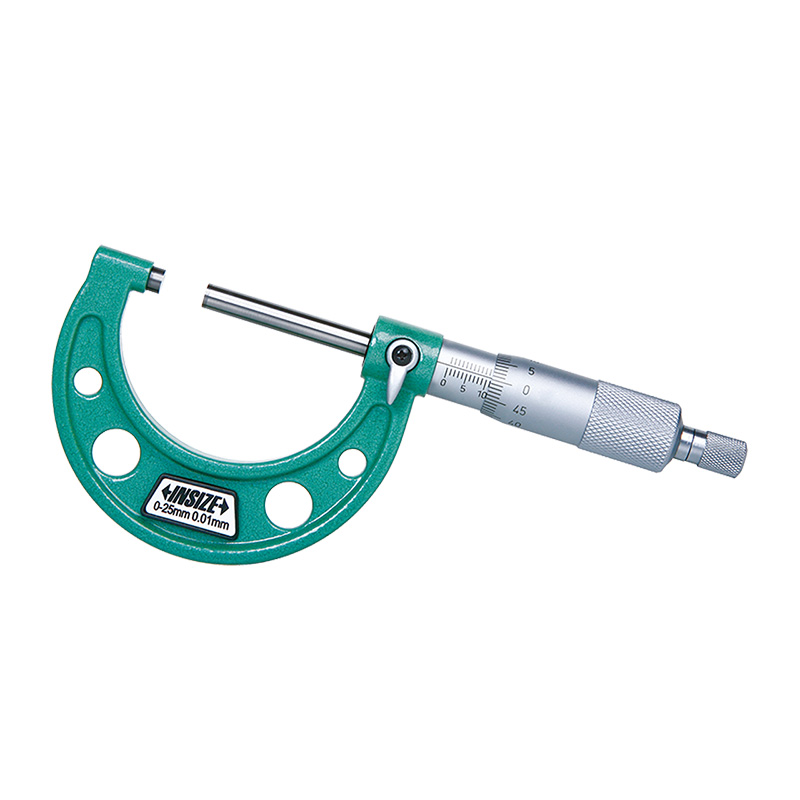

Long Spindle Outside Micrometers
Code: 3209
Carbide measuring faces
Meet DIN863-1
Ratchet stop
Supplied with setting standards (except 0-25mm)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3209-25 | 0-25mm | 4μm | 0.01mm |
| 3209-50 | 25-50mm | 4μm | 0.01mm |
| 3209-75 | 50-75mm | 5μm | 0.01mm |
| 3209-100 | 75-100mm | 5μm | 0.01mm |
