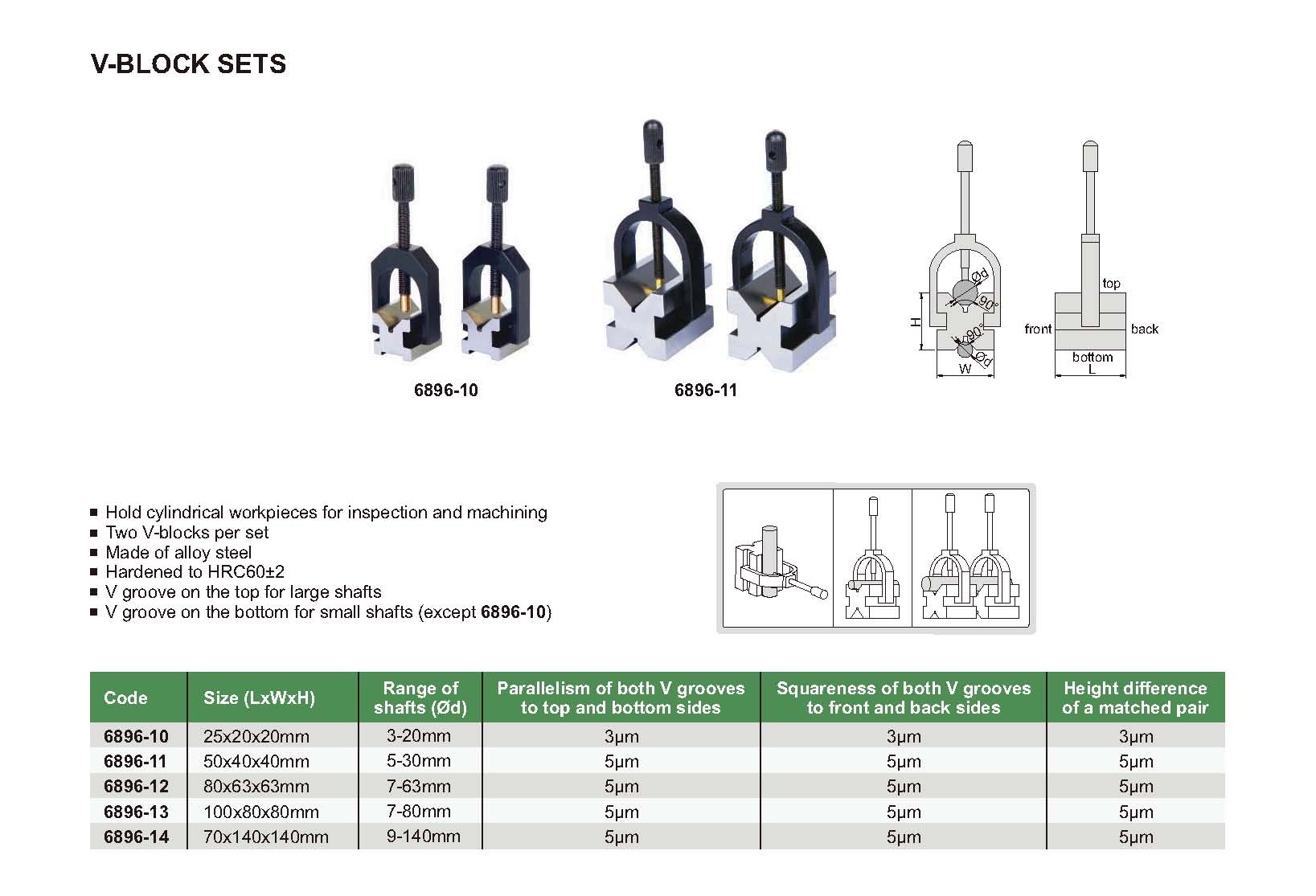

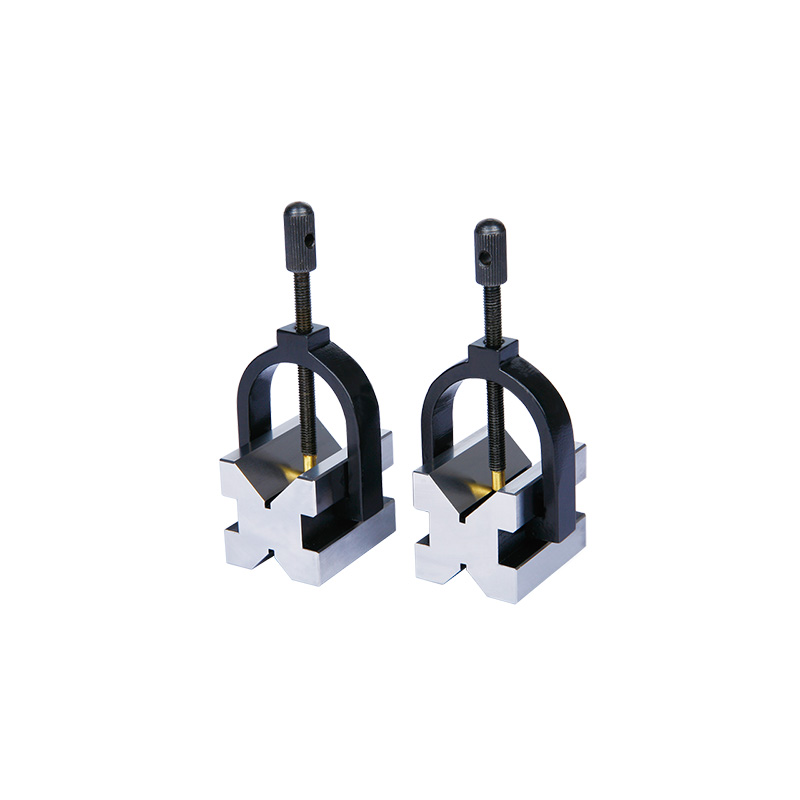

V-Block Sets
Code: 6896
Hold cylindrical workpieces for inspection and machining
Two V-blocks per set
Made of alloy steel
Hardened to HRC60±2
V groove on the top for large shafts
| Code | Size | Range of shafts |
|---|---|---|

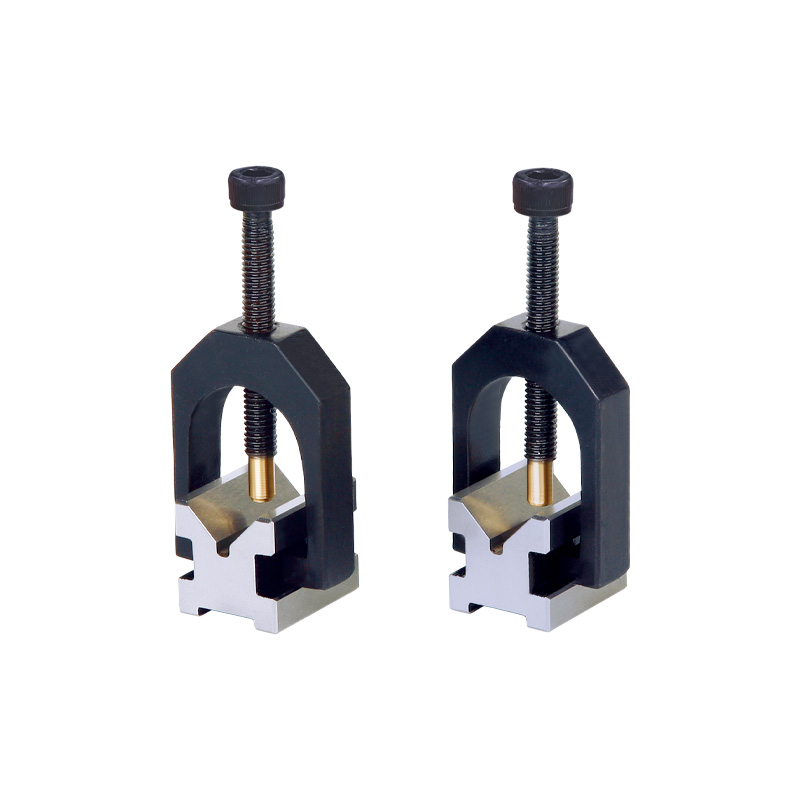

| 6896-10 | 25x20×20mm | 3-20mm |

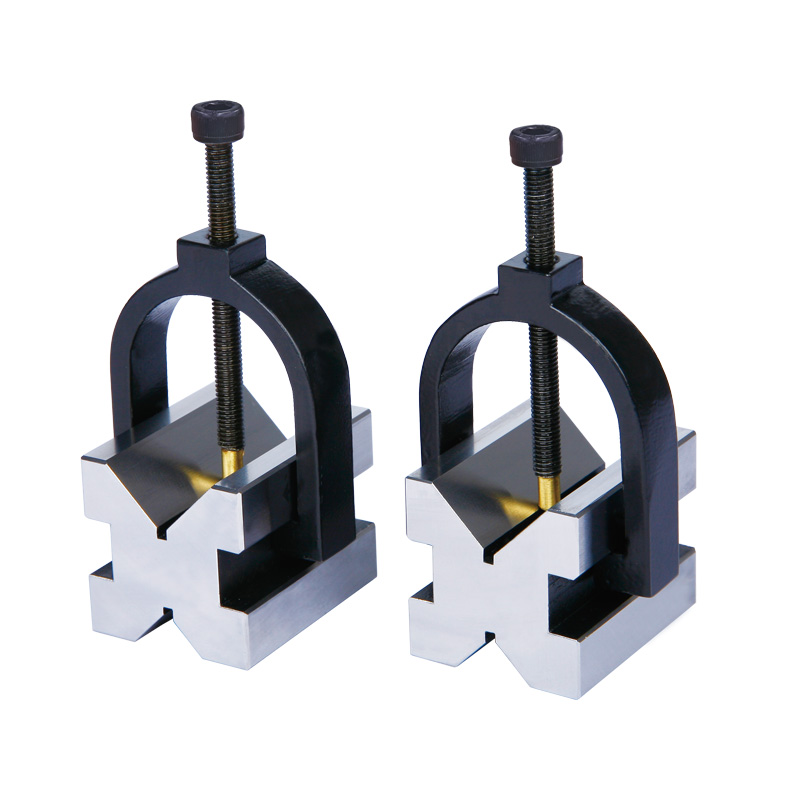

| 6896-11 | 50×40×40mm | 5-30mm |
| 6896-12 | 80×63×63mm | 7-63mm |
| 6896-13 | 100×80×80mm | 7-80mm |
| 6896-14 | 70×140×140mm | 9-140mm |
