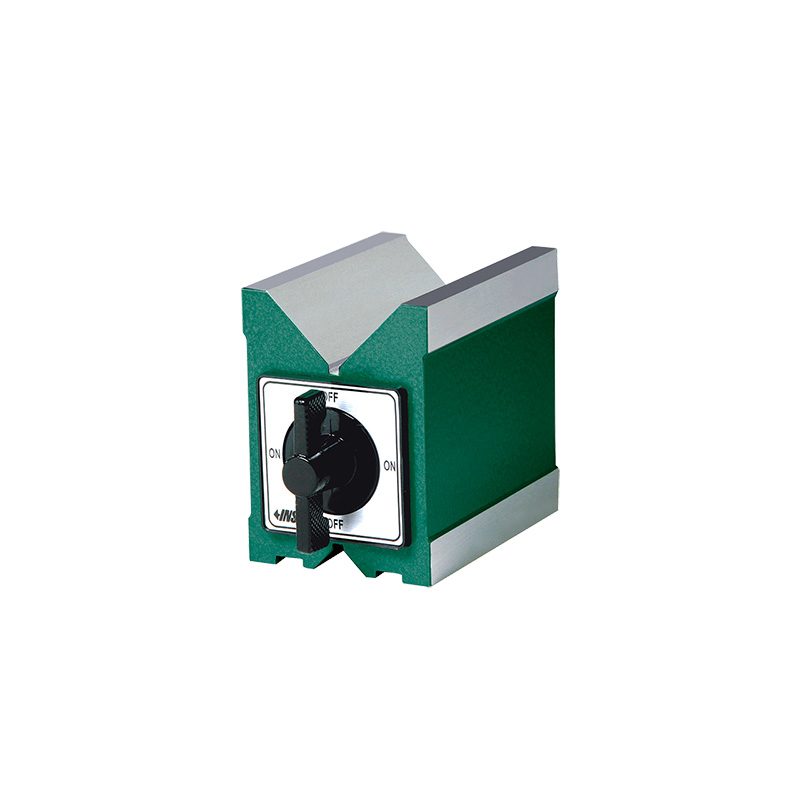

Magnetic v-Blocks
Code: 6801
Hold cylindrical workpieces for inspection and machining
V groove on the top for large shafts
V groove on the bottom for small shafts
Not suitable for steel or iron surfaces, otherwise the magnetic force will be reduced

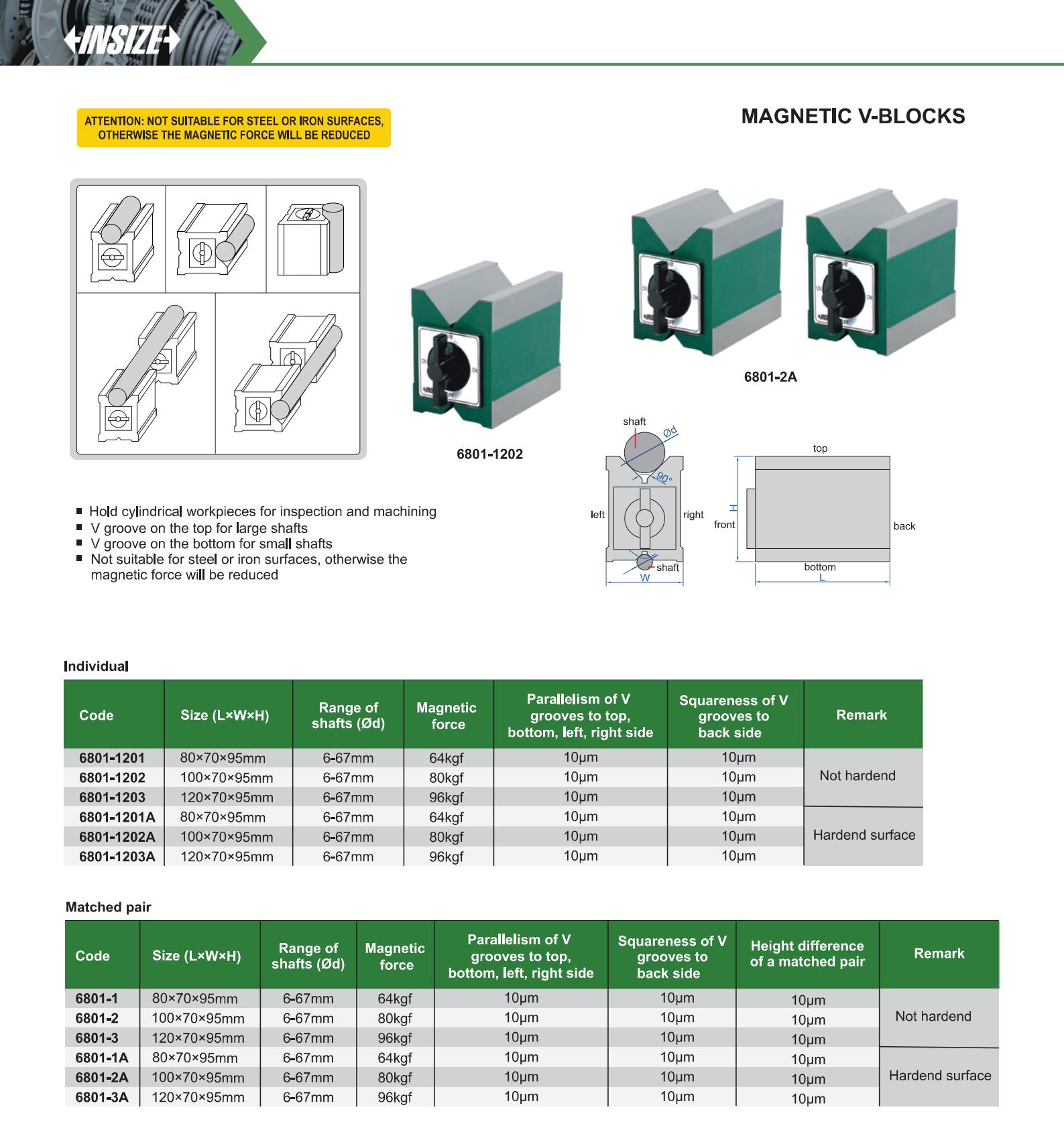

| Code | Size | Range of shafts | Magnetic force |
|---|---|---|---|
| 6801-1201 | 80×70×95mm | 6-67mm | 64kgf |
| 6801-1202 | 100×70×95mm | 6-67mm | 80kgf |
| 6801-1203 | 120×70×95mm | 6-67mm | 96kgf |
| 6801-1201A | 80×70×95mm | 6-67mm | 64kgf |
| 6801-1202A | 100×70×95mm | 6-67mm | 80kgf |
| 6801-1203A | 120×70×95mm | 6-67mm | 96kgf |
| 6801-1 | 80×70×95mm | 6-67mm | 64kgf |
| 6801-2 | 100×70×95mm | 6-67mm | 80kgf |
| 6801-3 | 120×70×95mm | 6-67mm | 96kgf |
| 6801-1A | 80×70×95mm | 6-67mm | 64kgf |
| 6801-2A | 100×70×95mm | 6-67mm | 80kgf |
| 6801-3A | 120×70×95mm | 6-67mm | 96kgf |
