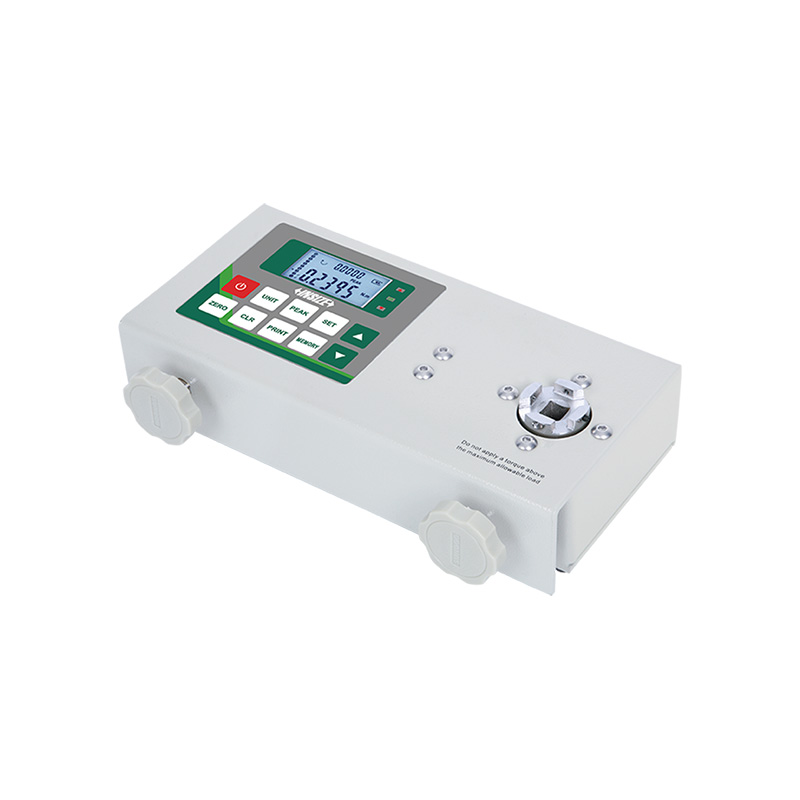

Torque Testers
Code: IST-HP Series
For testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools
Clockwise and counter-clockwise operation
Peak and track working modes
High-definition display, backlighting available
High sampling frequency for accurate peak capture
Unit: N.m, lb.in, kgf.cm
Upper and lower limits can be set, automatic audible and visual alarm with red and green indicator lights and buzzer
| Code | Sensor type | Torque testing category | Installation method | With buffer | Maximum range |
|---|---|---|---|---|---|
| IST-HP1 | Fixed type | Dynamic torque/Static torque | Portable installation | yes | 1N.m |
| IST-HP2 | Fixed type | Dynamic torque/Static torque | Portable installation | yes | 2N.m |
| IST-HP5 | Fixed type | Dynamic torque/Static torque | Portable installation | yes | 5N.m |
| IST-HP10 | Fixed type | Dynamic torque/Static torque | Portable installation | yes | 10N.m |
| IST-HP20 | Fixed type | Dynamic torque/Static torque | Portable installation | yes | 20N.m |
