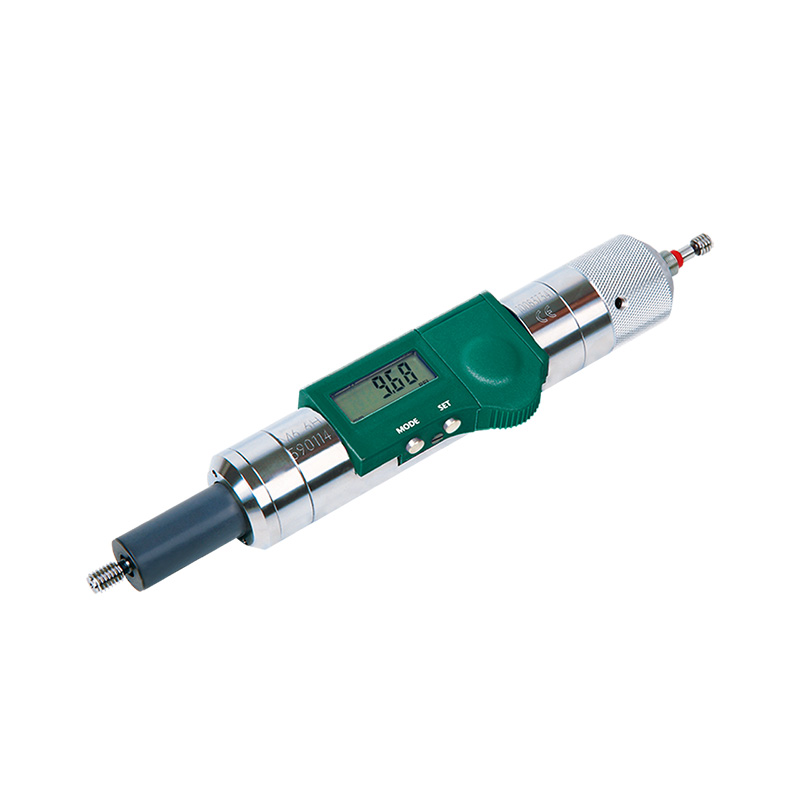

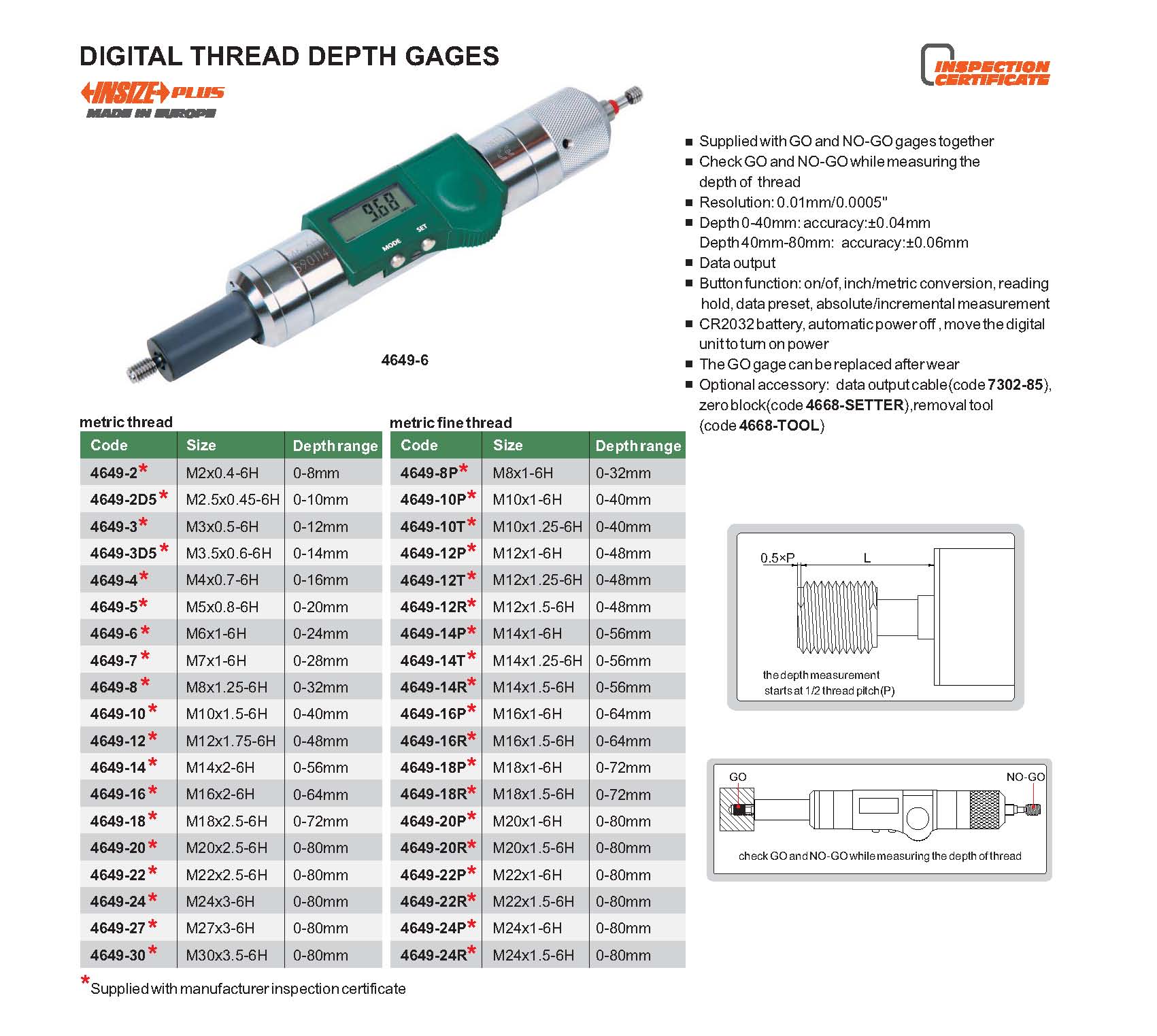

Digital Thread Depth Gauges
Code: 4649
Supplied with GO and NO-GO gauges together
Check GO and NO-GO while measuring the depth of thread holes
Button function: on/off, inch/metric conversion, reading hold, data preset, absolute/incremental measurement
| Code | Accuracy | Resolution | Depth range | Size (mm) |
|---|---|---|---|---|
| 4649-2 | ±0.04mm | 0.01mm/0.0005" | 0-8mm | M2x0.4-6H |
| 4649-2D5 | ±0.04mm | 0.01mm/0.0005" | 0-10mm | M2.5x0.45-6H |
| 4649-3 | ±0.04mm | 0.01mm/0.0005" | 0-12mm | M3x0.5-6H |
| 4649-3D5 | ±0.04mm | 0.01mm/0.0005" | 0-14mm | M3.5x0.6-6H |
| 4649-4 | ±0.04mm | 0.01mm/0.0005" | 0-16mm | M4x0.7-6H |
| 4649-5 | ±0.04mm | 0.01mm/0.0005" | 0-20mm | M5x0.8-6H |
| 4649-6 | ±0.04mm | 0.01mm/0.0005" | 0-24mm | M6x1-6H |
| 4649-7 | ±0.04mm | 0.01mm/0.0005" | 0-28mm | M7x1-6H |
| 4649-8 | ±0.04mm | 0.01mm/0.0005" | 0-32mm | M8x1.25-6H |
| 4649-10 | ±0.04mm | 0.01mm/0.0005" | 0-40mm | M10x1.5-6H |
| 4649-12 | ±0.06mm | 0.01mm/0.0005" | 0-48mm | M12x1.75-6H |
| 4649-14 | ±0.06mm | 0.01mm/0.0005" | 0-56mm | M14x2-6H |
| 4649-16 | ±0.06mm | 0.01mm/0.0005" | 0-64mm | M16x2-6H |
| 4649-18 | ±0.06mm | 0.01mm/0.0005" | 0-72mm | M18x2.5-6H |
| 4649-20 | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M20x2.5-6H |
| 4649-22 | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M22x2.5-6H |
| 4649-24 | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M24x3-6H |
| 4649-27 | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M27x3-6H |
| 4649-30 | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M30x3.5-6H |
| 4649-8P | ±0.04mm | 0.01mm/0.0005" | 0-32mm | M8x1-6H |
| 4649-10P | ±0.04mm | 0.01mm/0.0005" | 0-40mm | M10x1-6H |
| 4649-10T | ±0.04mm | 0.01mm/0.0005" | 0-40mm | M10x1.25-6H |
| 4649-12P | ±0.04mm | 0.01mm/0.0005" | 0-48mm | M12x1-6H |
| 4649-12T | ±0.04mm | 0.01mm/0.0005" | 0-48mm | M12x1.25-6H |
| 4649-12R | ±0.04mm | 0.01mm/0.0005" | 0-48mm | M12x1.5-6H |
| 4649-14P | ±0.04mm | 0.01mm/0.0005" | 0-56mm | M14x1-6H |
| 4649-14T | ±0.04mm | 0.01mm/0.0005" | 0-56mm | M14x1.25-6H |
| 4649-14R | ±0.04mm | 0.01mm/0.0005" | 0-56mm | M14x1.5-6H |
| 4649-16P | ±0.04mm | 0.01mm/0.0005" | 0-64mm | M16x1-6H |
| 4649-16R | ±0.06mm | 0.01mm/0.0005" | 0-64mm | M16x1.5-6H |
| 4649-18P | ±0.06mm | 0.01mm/0.0005" | 0-72mm | M18x1-6H |
| 4649-18R | ±0.06mm | 0.01mm/0.0005" | 0-72mm | M18x1.5-6H |
| 4649-20P | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M20x1-6H |
| 4649-20R | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M20x1.5-6H |
| 4649-22P | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M22x1-6H |
| 4649-22R | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M22x1.5-6H |
| 4649-24P | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M24x1-6H |
| 4649-24R | ±0.06mm | 0.01mm/0.0005" | 0-80mm | M24x1.5-6H |
