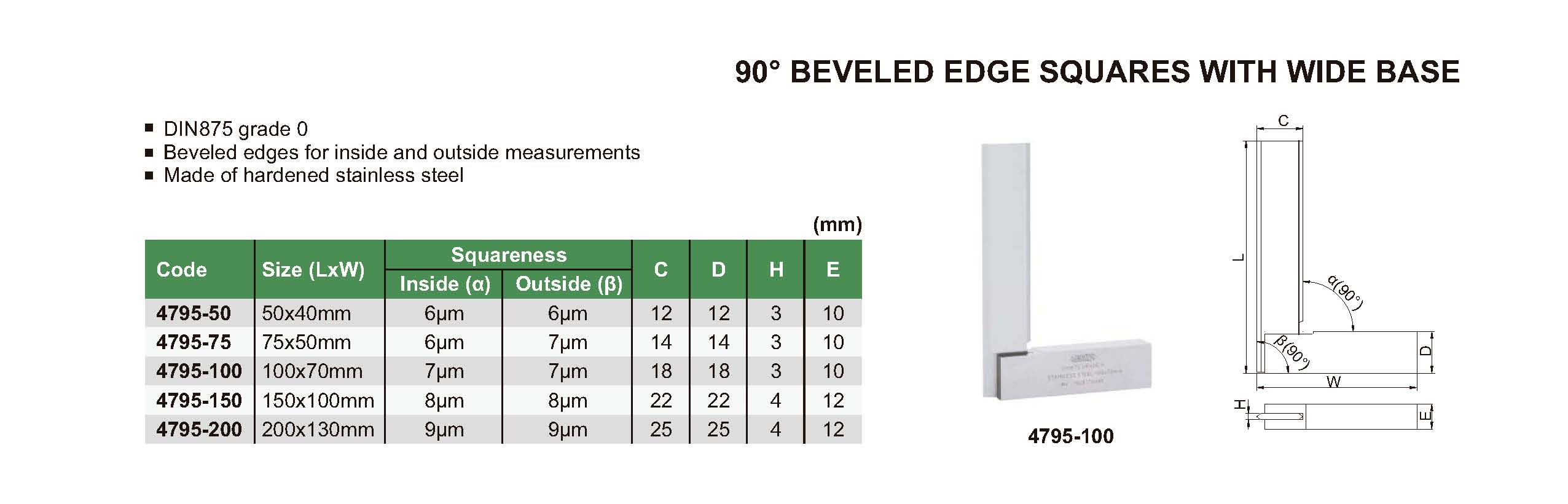

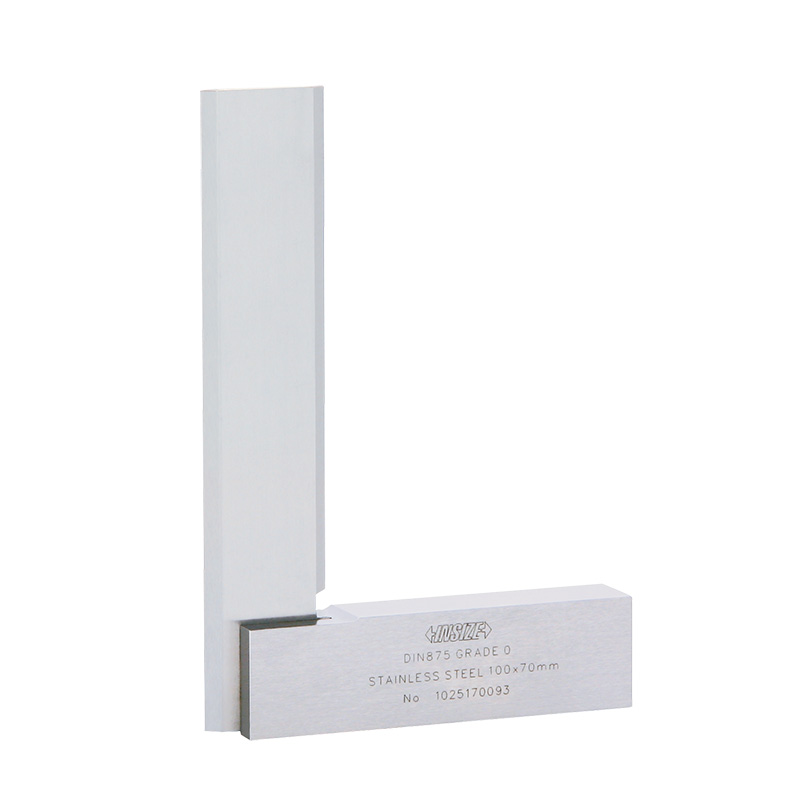

90°Beveled Edge Squares With Wide Base
Code: 4795
DIN875 grade 0
Beveled edges for inside and outside measurements
Made of hardened stainless steel
| Code | Size | Squareness Inside (α) | Squareness Outside (β) |
|---|---|---|---|
| 4795-50 | 50x40mm | 6µm | 6µm |
| 4795-75 | 75x50mm | 6µm | 7µm |
| 4795-100 | 100x70mm | 7µm | 7µm |
| 4795-150 | 150x100mm | 8µm | 8µm |
| 4795-200 | 200x130mm | 9µm | 9µm |
