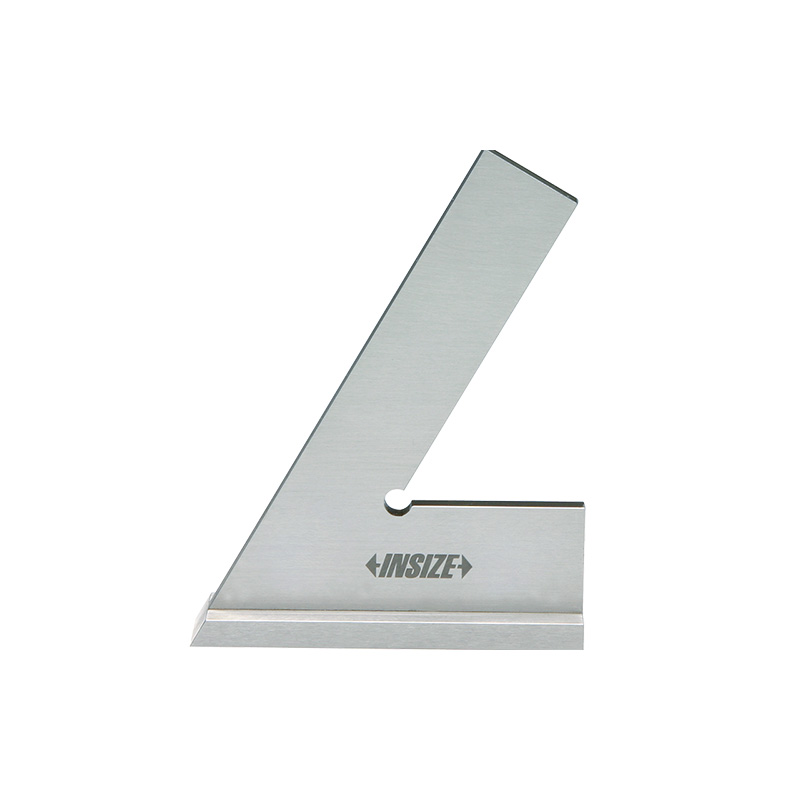

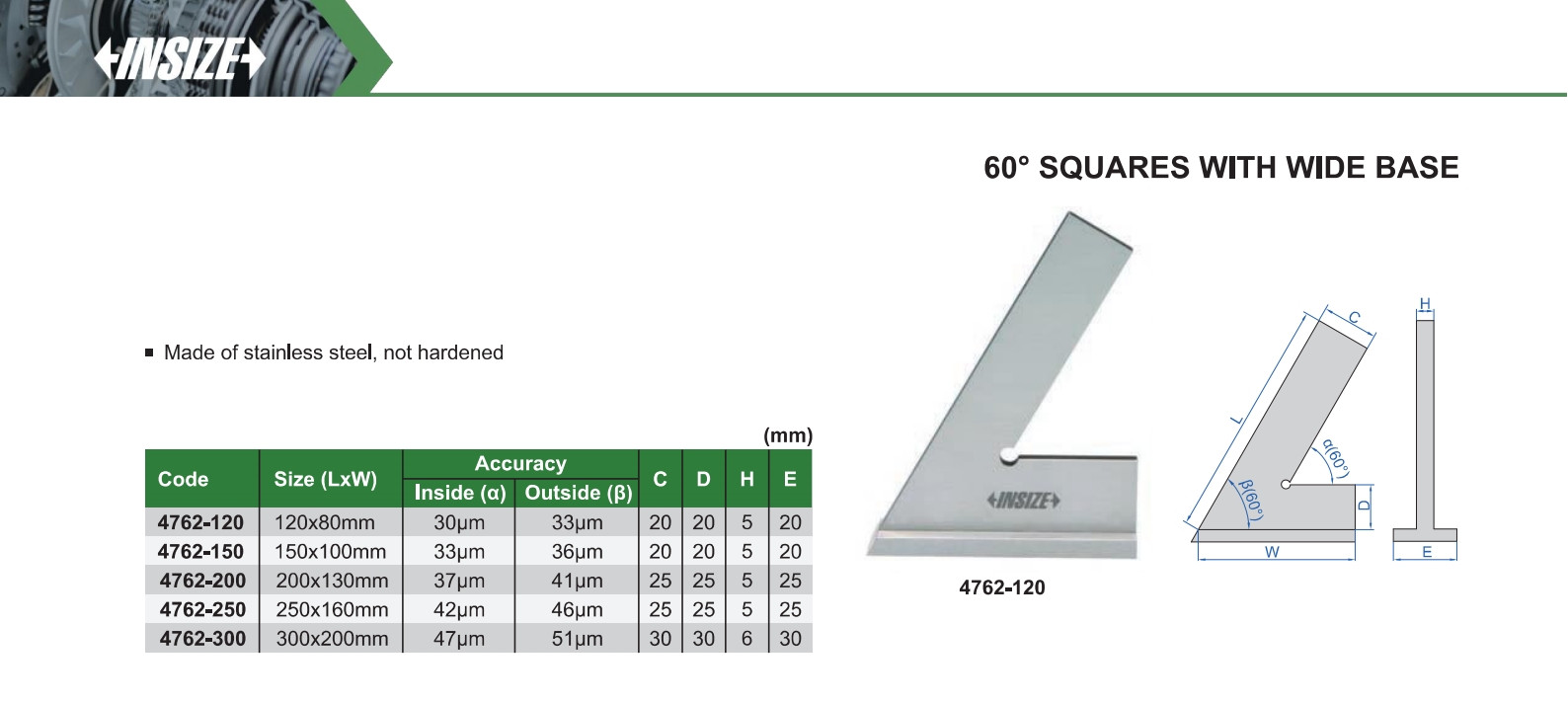

60°Squares With Wide Base
Code: 4762
Made of stainless steel, not hardened
| Code | Size | Accuracy Inside (α) | Accuracy Outside (β) |
|---|---|---|---|
| 4762-120 | 120x80mm | 30µm | 33µm |
| 4762-150 | 150x100mm | 33µm | 36µm |
| 4762-200 | 200x130mm | 37µm | 41µm |
| 4762-250 | 250x160mm | 42µm | 46µm |
| 4762-300 | 300x200mm | 47µm | 51µm |
