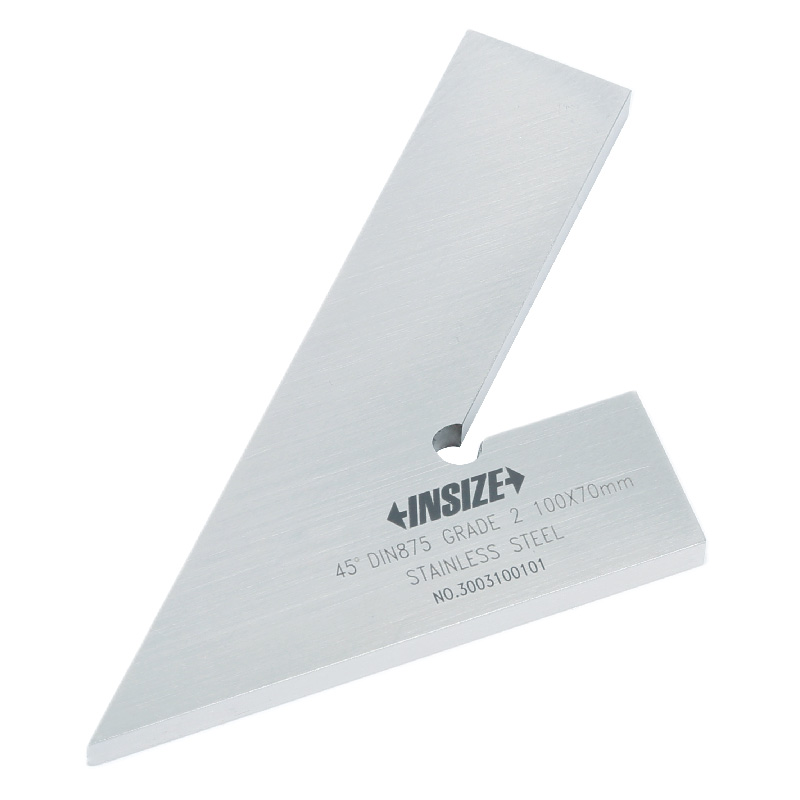

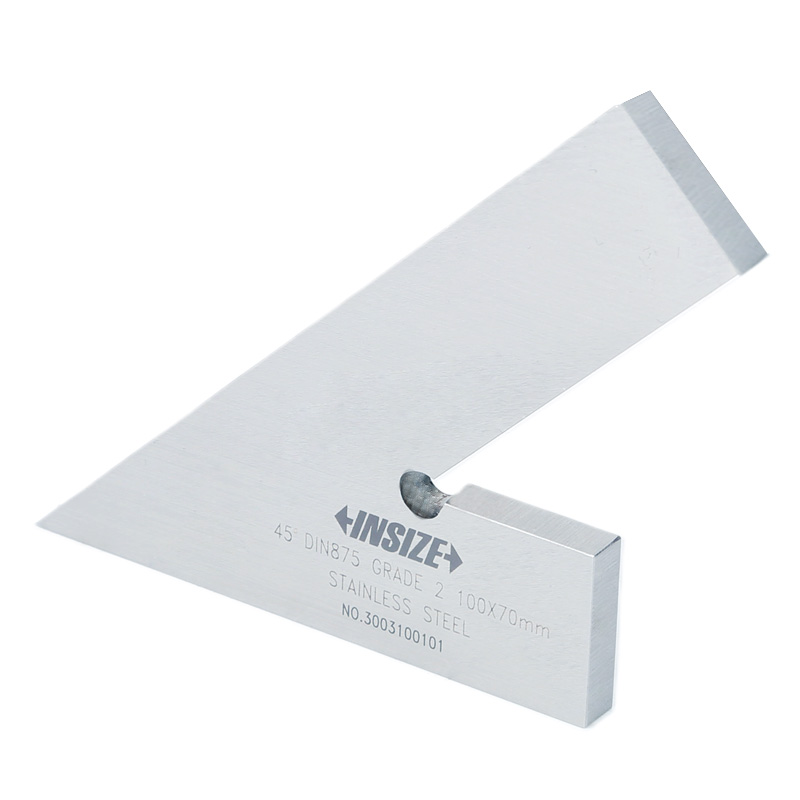

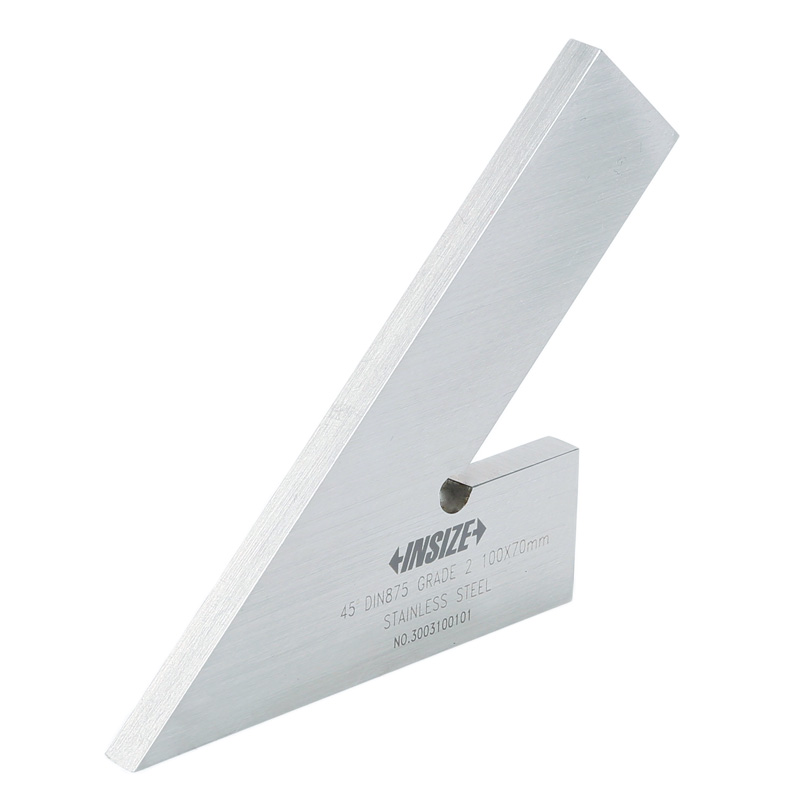

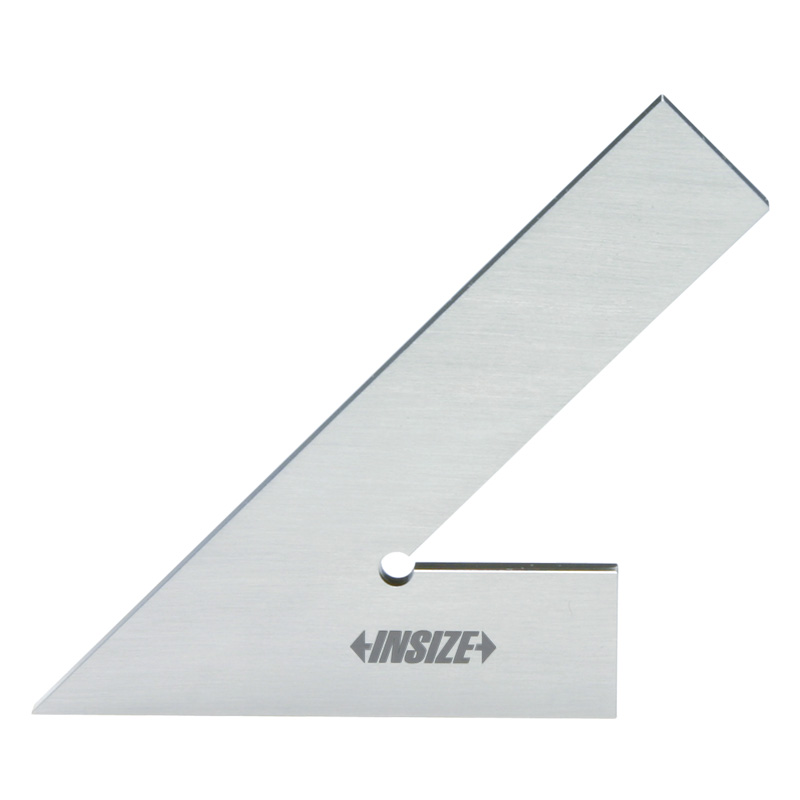

45°Squares
Code: 4745
Made of stainless steel, not hardened

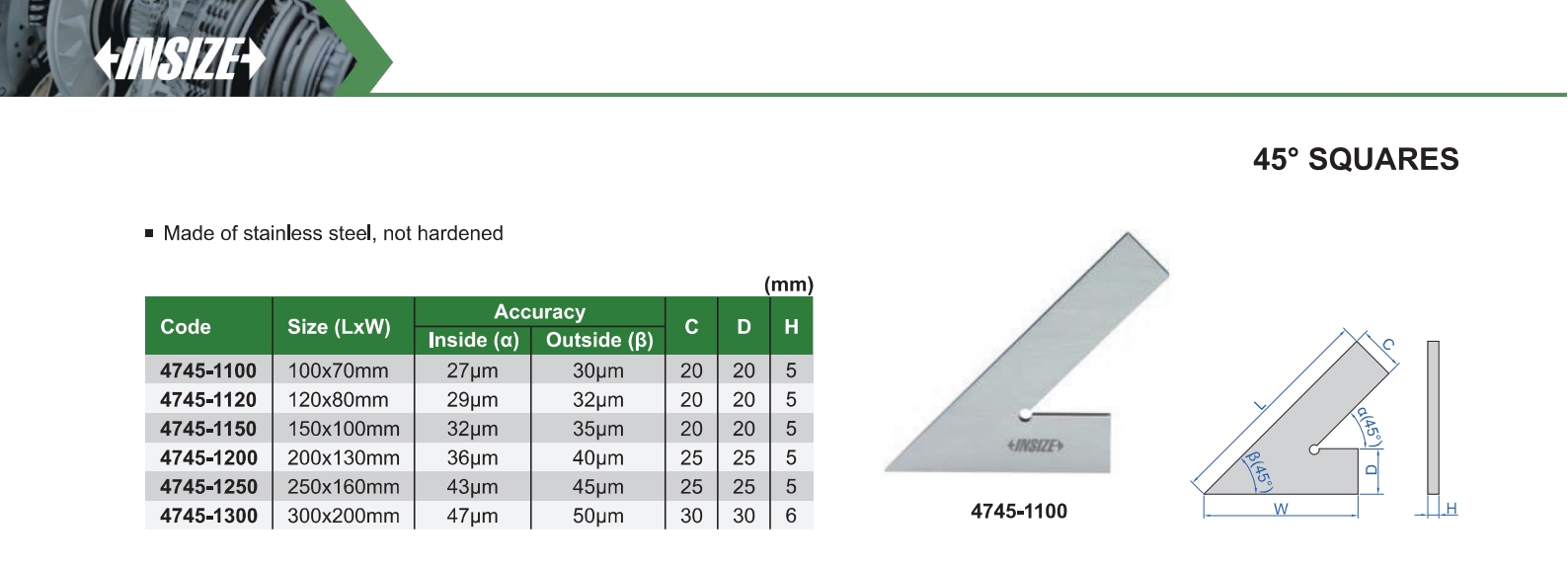

| Code | Size | Accuracy Inside (α) | Accuracy Outside (β) |
|---|---|---|---|
| 4745-1100 | 100x70mm | 27µm | 30µm |
| 4745-1120 | 120x80mm | 29µm | 32µm |
| 4745-1150 | 150x100mm | 32µm | 35µm |
| 4745-1200 | 200x130mm | 36µm | 40µm |
| 4745-1250 | 250x160mm | 43µm | 45µm |
| 4745-1300 | 300x200mm | 47µm | 50µm |
View the complete
product specifications
