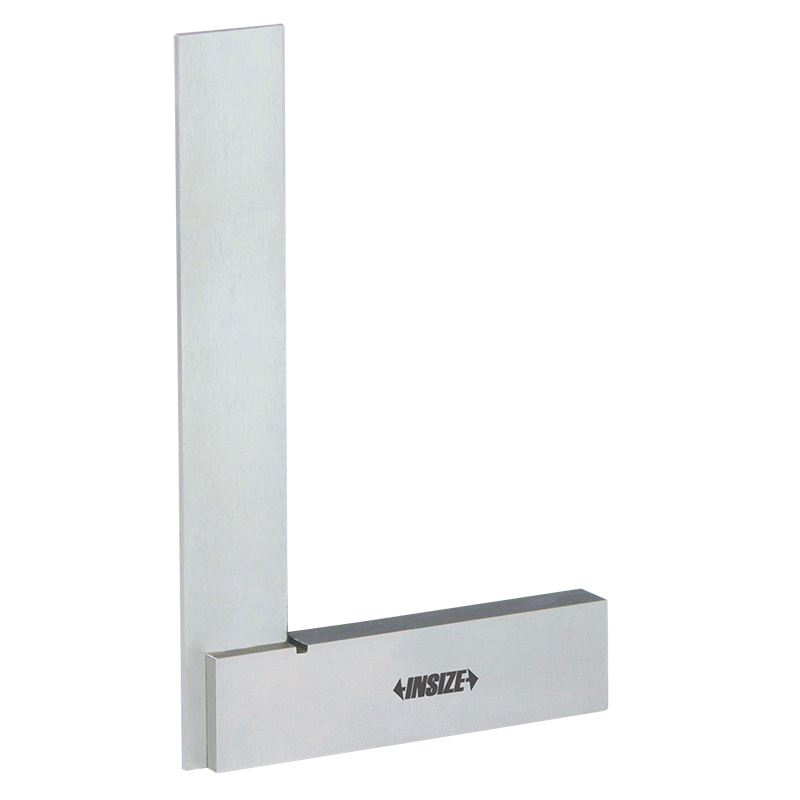

Machinist Squares With Wide Base (Economic Type)
Code: 4707
DIN875 grade 2
Made of carbon steel, no anti-rust treatment, not hardend

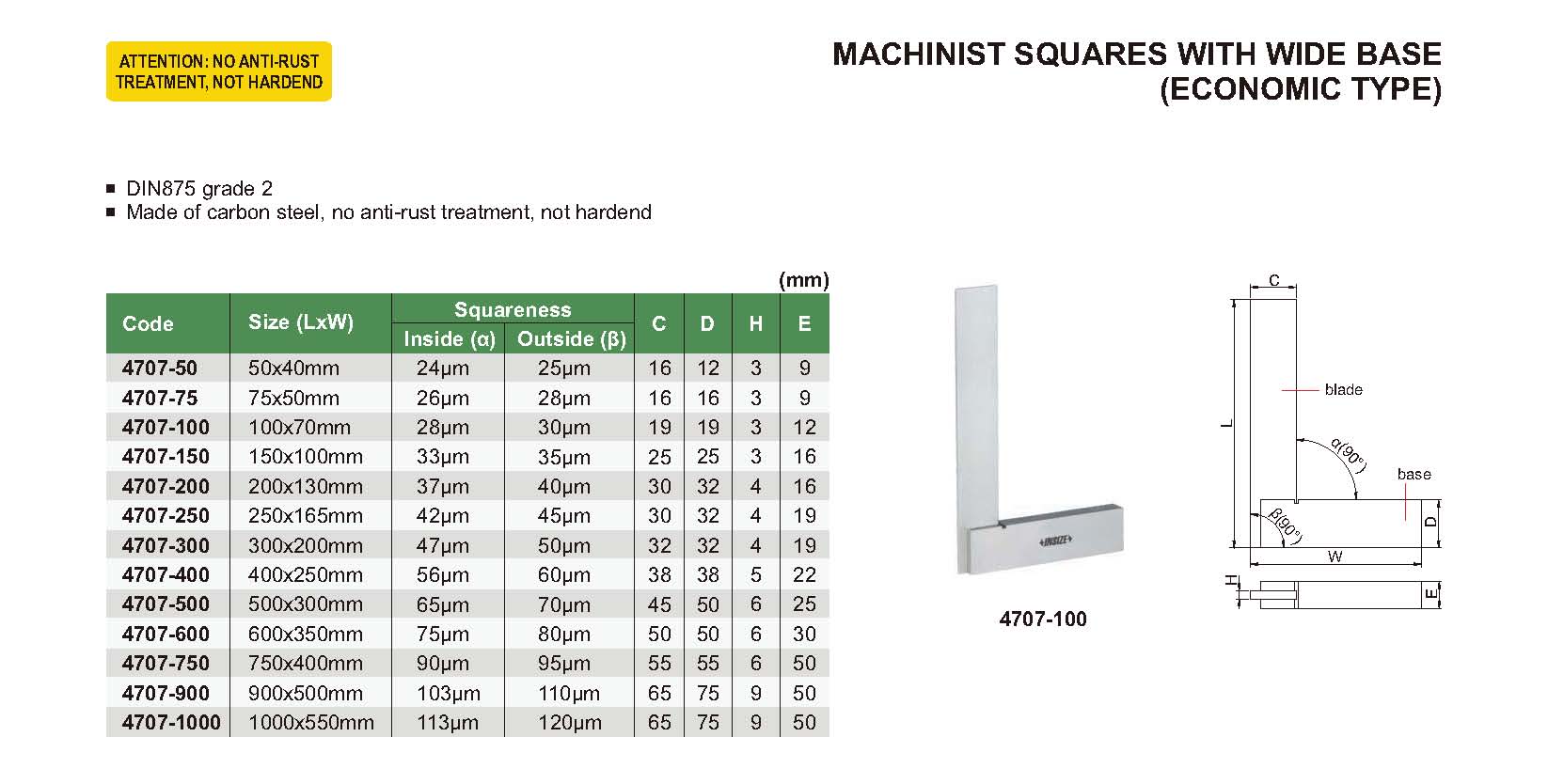

| Code | Size | Squareness Inside (α) | Squareness Outside (β) |
|---|---|---|---|
| 4707-50 | 50x40mm | 24µm | 25µm |
| 4707-75 | 75x50mm | 26µm | 28µm |
| 4707-100 | 100x70mm | 28µm | 30µm |
| 4707-150 | 150x100mm | 33µm | 35µm |
| 4707-200 | 200x130mm | 37µm | 40µm |
| 4707-250 | 250x165mm | 42µm | 45µm |
| 4707-300 | 300x200mm | 47µm | 50µm |
| 4707-400 | 400x250mm | 56µm | 60µm |
| 4707-500 | 500x300mm | 65µm | 70µm |
| 4707-600 | 600x350mm | 75µm | 80µm |
| 4707-750 | 750x400mm | 90µm | 95µm |
| 4707-900 | 900x500mm | 103µm | 110µm |
| 4707-1000 | 1000x550mm | 113µm | 120µm |
