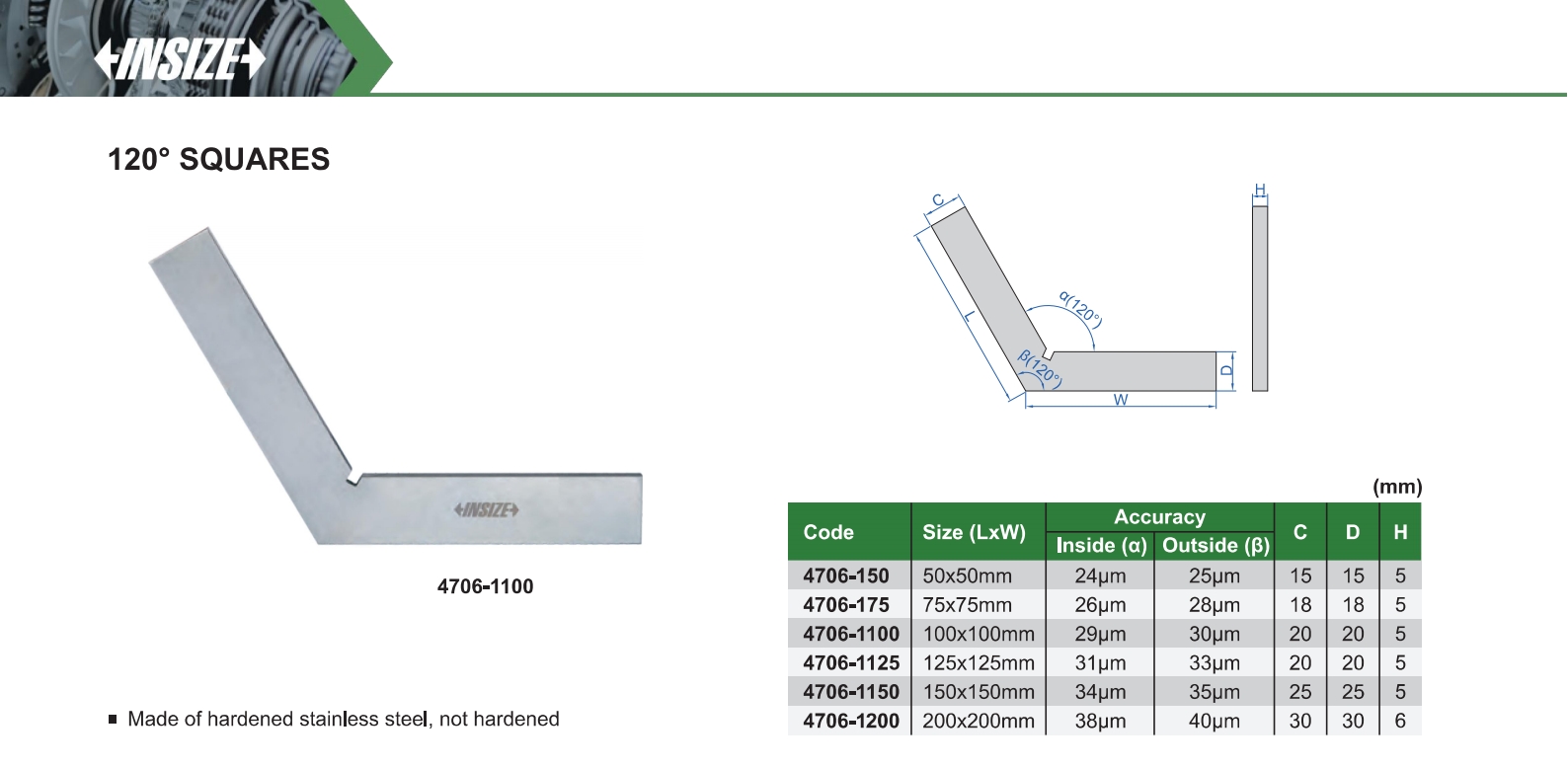

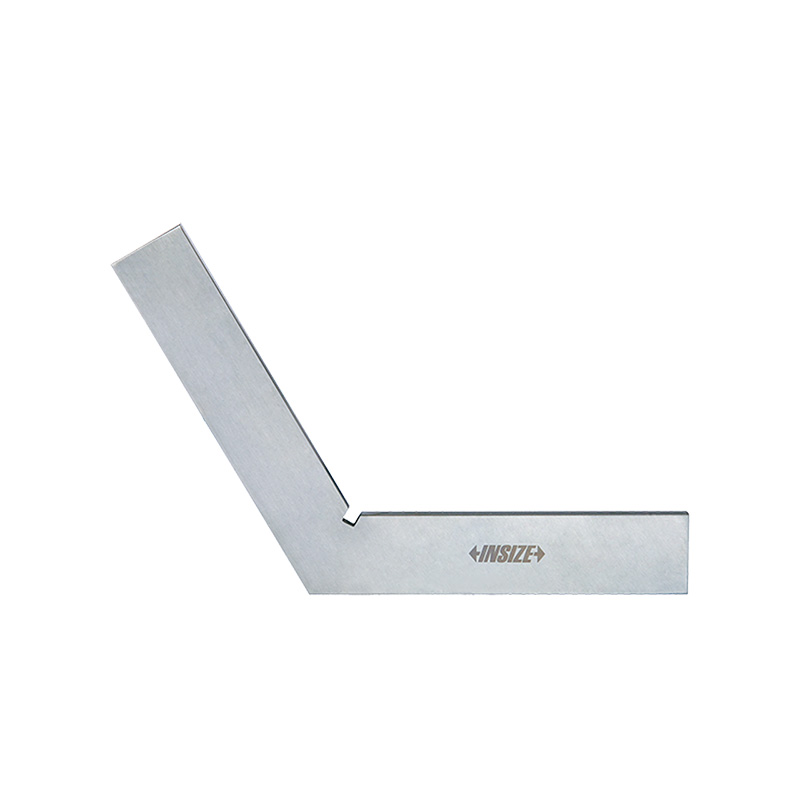

120° Squares
Code: 4706
Made of hardened stainless steel
| Code | Size | Squareness Inside (α) | Squareness Outside (β) |
|---|---|---|---|
| 4706-150 | 50x50mm | 24µm | 25µm |
| 4706-175 | 75x75mm | 26µm | 28µm |
| 4706-1100 | 100x100mm | 29µm | 30µm |
| 4706-1125 | 125x125mm | 31µm | 33µm |
| 4706-1150 | 150x150mm | 34µm | 35µm |
| 4706-1200 | 200x200mm | 38µm | 40µm |
