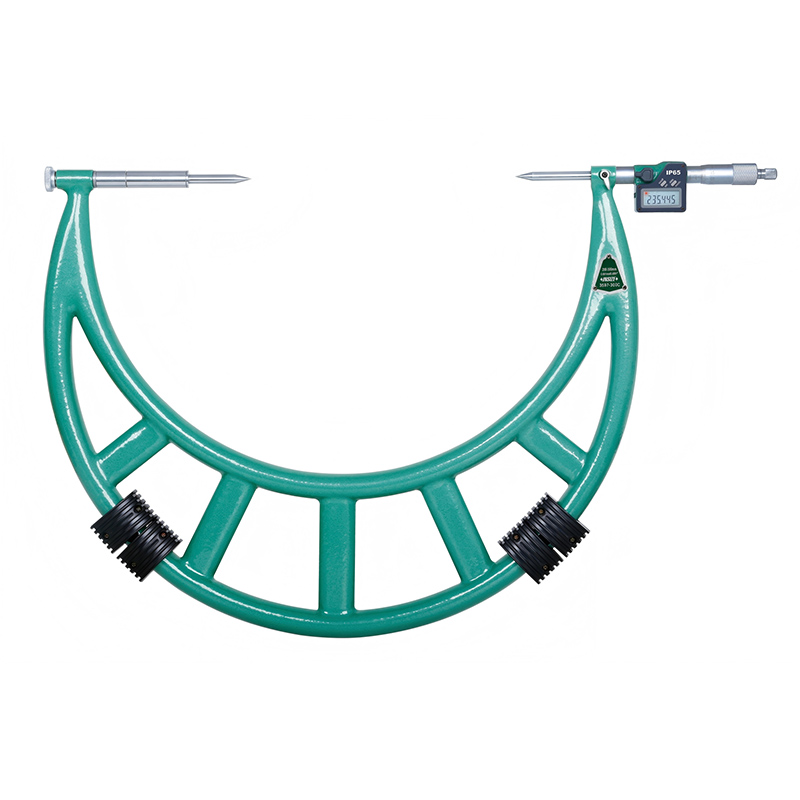

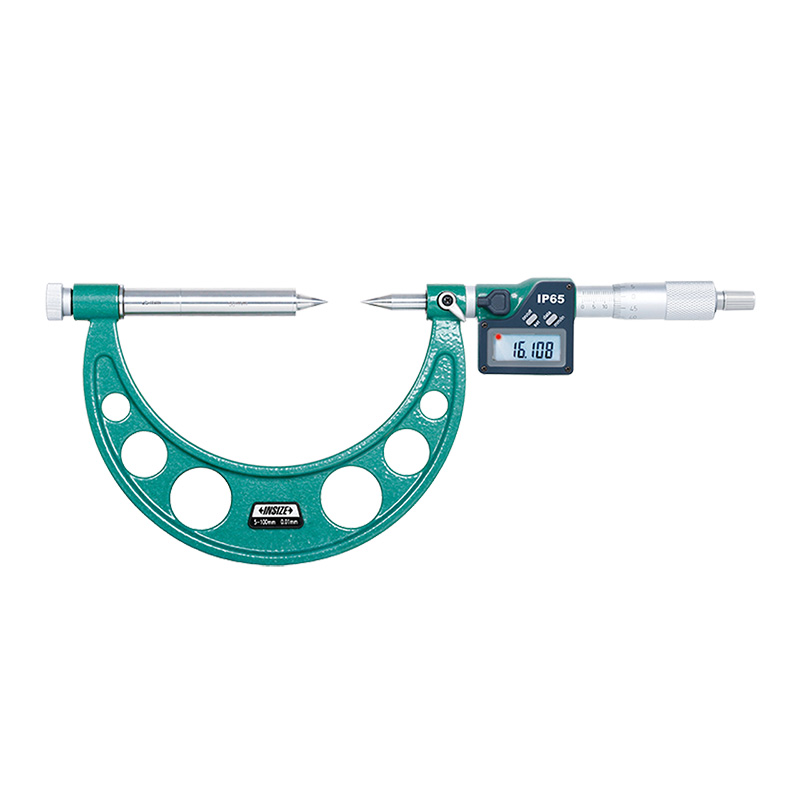

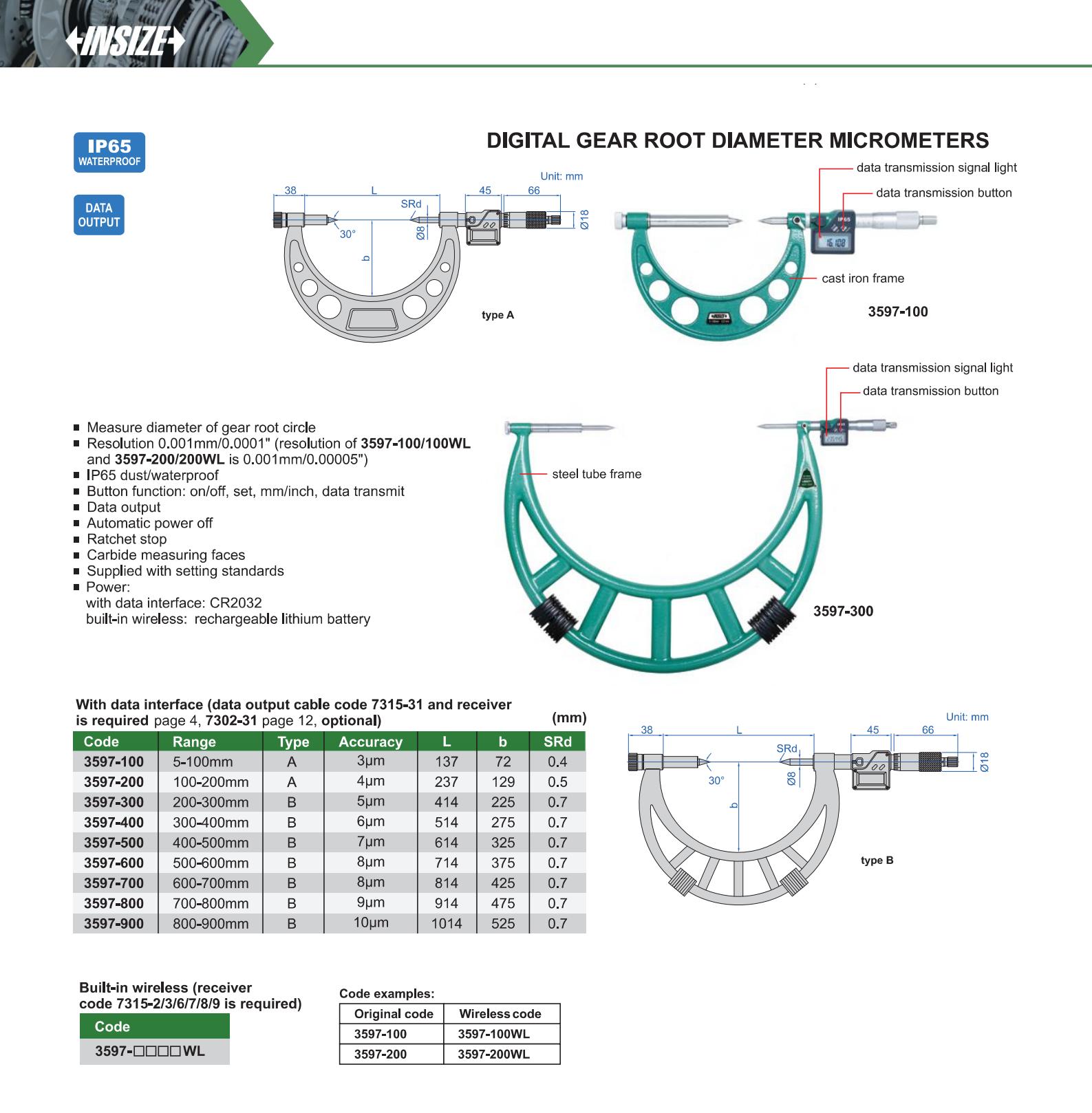

Digital Gear Root Diameter Micrometers
Code: 3597
Measure diameter of gear circleroot
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Carbide measuring faces
Supplied with setting standards
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3597-100 | 5-100mm | 3μm | 0.001mm/0.00005" | with data interface |
| 3597-200 | 100-200mm | 4μm | 0.001mm/0.00005" | with data interface |
| 3597-300 | 200-300mm | 5μm | 0.001mm/0.0001" | with data interface |
| 3597-400 | 300-400mm | 6μm | 0.001mm/0.0001" | with data interface |
| 3597-500 | 400-500mm | 7μm | 0.001mm/0.0001" | with data interface |
| 3597-600 | 500-600mm | 8μm | 0.001mm/0.0001" | with data interface |
| 3597-700 | 600-700mm | 8μm | 0.001mm/0.0001" | with data interface |
| 3597-800 | 700-800mm | 9μm | 0.001mm/0.0001" | with data interface |
| 3597-900 | 800-900mm | 10μm | 0.001mm/0.0001" | with data interface |
| 3597-100WL | 5-100mm | 3μm | 0.001mm/0.00005" | built-in wireless |
| 3597-200WL | 100-200mm | 4μm | 0.001mm/0.00005" | built-in wireless |
| 3597-300WL | 200-300mm | 5μm | 0.001mm/0.0001" | built-in wireless |
| 3597-400WL | 300-400mm | 6μm | 0.001mm/0.0001" | built-in wireless |
| 3597-500WL | 400-500mm | 7μm | 0.001mm/0.0001" | built-in wireless |
| 3597-600WL | 500-600mm | 8μm | 0.001mm/0.0001" | built-in wireless |
| 3597-700WL | 600-700mm | 8μm | 0.001mm/0.0001" | built-in wireless |
| 3597-800WL | 700-800mm | 9μm | 0.001mm/0.0001" | built-in wireless |
| 3597-900WL | 800-900mm | 10μm | 0.001mm/0.0001" | built-in wireless |
