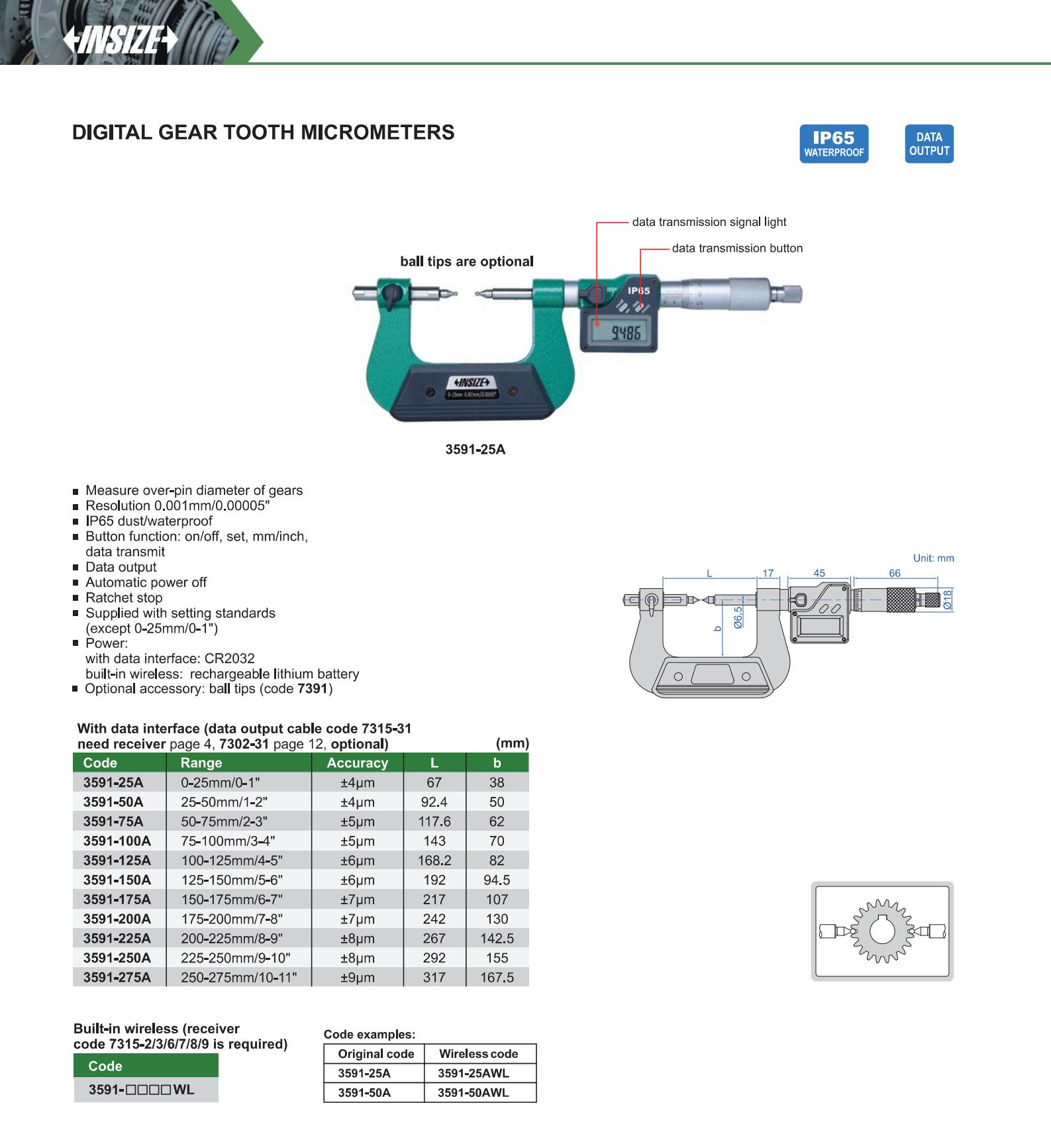

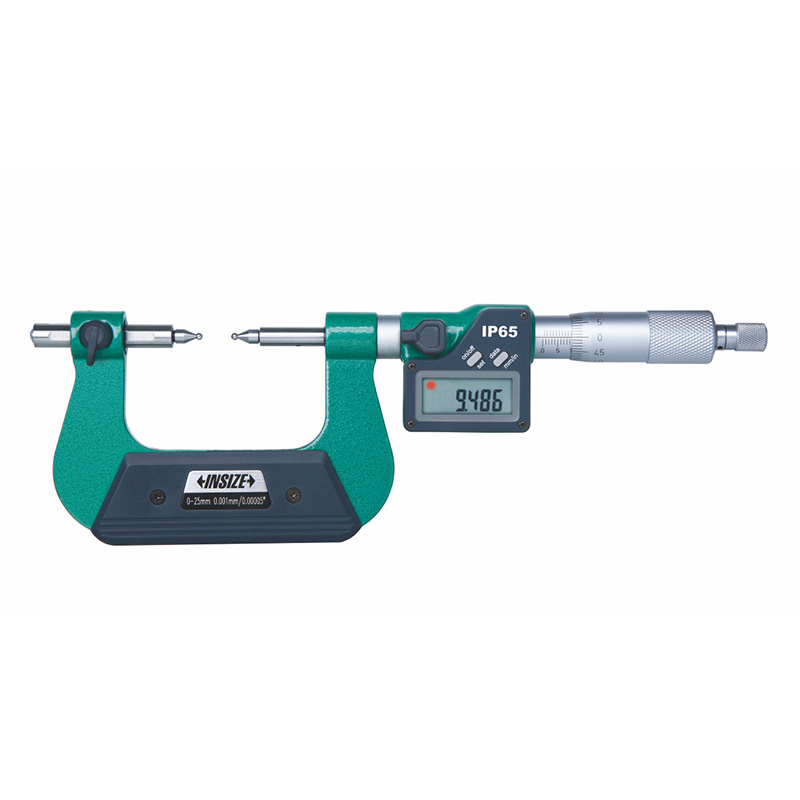

Digital Gear Tooth Micrometers
Code: 3591
Measure over-pin diameter of gears
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Supplied with setting standards (except 0-25mm/0-1")
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3591-25A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3591-50A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3591-75A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3591-100A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3591-125A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3591-150A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3591-175A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3591-200A | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3591-225A | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" | with data interface |
| 3591-250A | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" | with data interface |
| 3591-275A | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" | with data interface |
| 3591-25AWL | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3591-50AWL | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3591-75AWL | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3591-100AWL | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3591-125AWL | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3591-150AWL | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3591-175AWL | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | built-in wireless |
| 3591-200AWL | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" | built-in wireless |
| 3591-225AWL | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" | built-in wireless |
| 3591-250AWL | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" | built-in wireless |
| 3591-275AWL | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" | built-in wireless |
