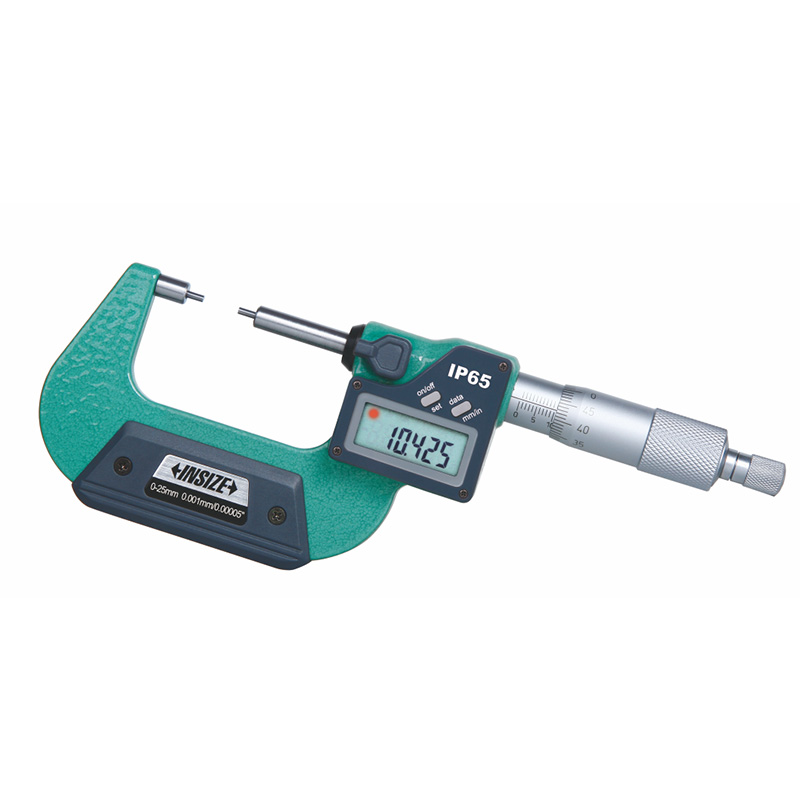

Digital Spline Micrometers
Code: 3533
Measure splined shafts, slots and keyways
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Carbide measuring faces
Supplied with setting standards (except 0-25mm/0-1")
| Code | Type | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|---|
| 3533-25A | A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3533-50A | A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3533-75A | A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3533-100A | A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3533-125A | A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3533-150A | A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3533-175A | A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3533-25BA | B | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3533-50BA | B | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3533-75BA | B | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3533-100BA | B | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3533-125BA | B | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3533-150BA | B | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3533-175BA | B | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3533-25AWL | A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3533-50AWL | A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3533-75AWL | A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3533-100AWL | A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3533-125AWL | A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3533-150AWL | A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3533-175AWL | A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | built-in wireless |
| 3533-25BAWL | B | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3533-50BAWL | B | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3533-75BAWL | B | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3533-100BAWL | B | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3533-125BAWL | B | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3533-150BAWL | B | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3533-175BAWL | B | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | built-in wireless |

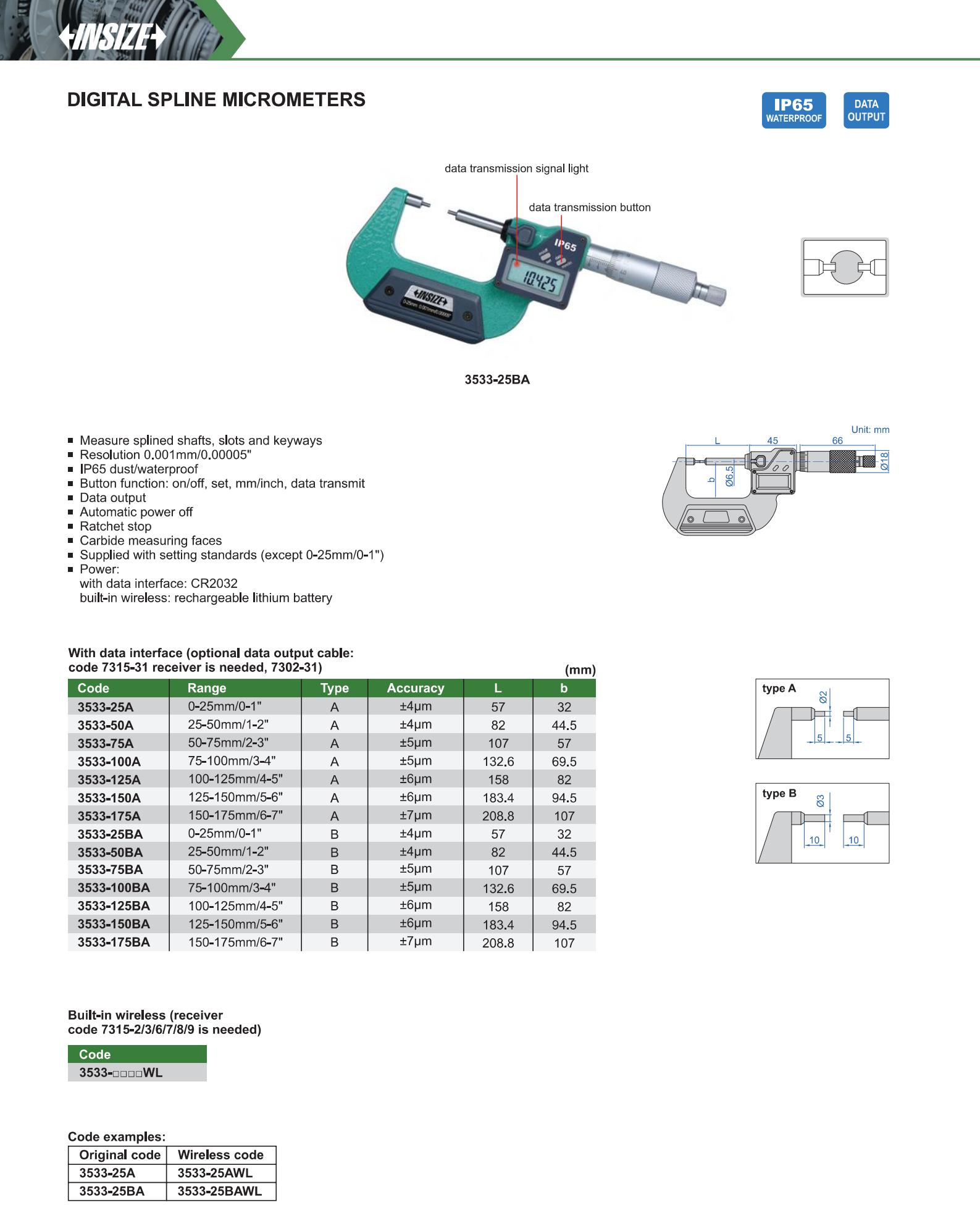

View the complete
