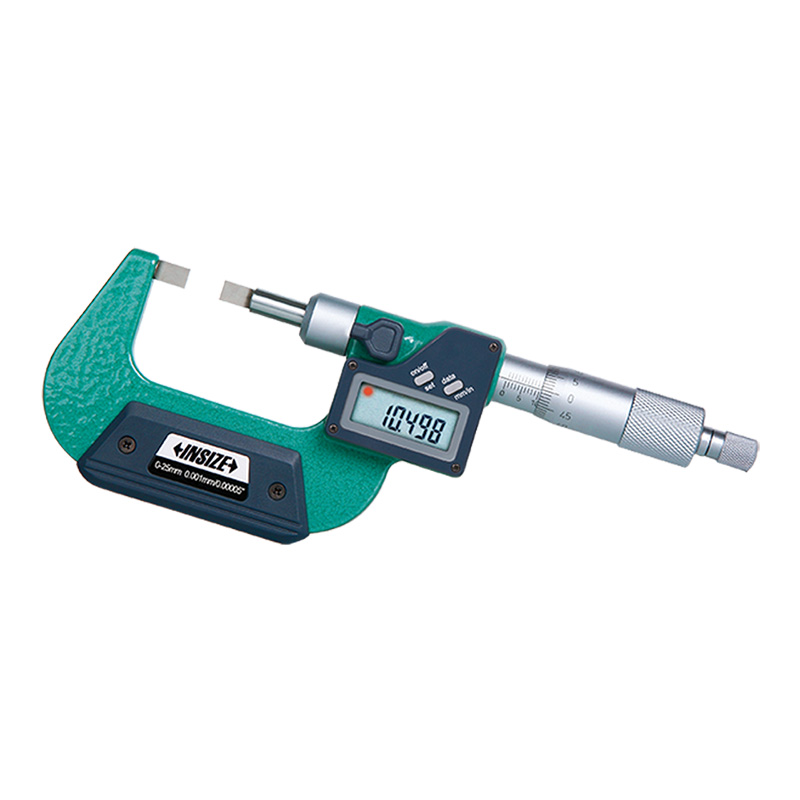

Digital Blade Micrometers
Code: 3532
Measure the groove diameter of shafts and keyways
Non-rotating spindle
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Supplied with setting standards (except 0-25mm/0-1")
| Code | Type | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|---|
| 3532-25A | A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3532-50A | A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3532-75A | A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3532-100A | A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3532-125A | A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3532-150A | A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3532-175A | A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3532-200A | A | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3532-225A | A | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" | with data interface |
| 3532-250A | A | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" | with data interface |
| 3532-275A | A | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" | with data interface |
| 3532-300A | A | 275-300mm/10-12" | ±9μm | 0.001mm/0.00005" | with data interface |
| 3532-25BA | B | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3532-50BA | B | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | with data interface |
| 3532-75BA | B | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3532-100BA | B | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | with data interface |
| 3532-125BA | B | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3532-150BA | B | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | with data interface |
| 3532-175BA | B | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3532-200BA | B | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" | with data interface |
| 3532-225BA | B | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" | with data interface |
| 3532-250BA | B | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" | with data interface |
| 3532-275BA | B | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" | with data interface |
| 3532-300BA | B | 275-300mm/10-12" | ±9μm | 0.001mm/0.00005" | with data interface |
| 3532-25AWL | A | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3532-50AWL | A | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3532-75AWL | A | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3532-100AWL | A | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3532-125AWL | A | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3532-150AWL | A | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3532-175AWL | A | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | built-in wireless |
| 3532-200AWL | A | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" | built-in wireless |
| 3532-225AWL | A | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" | built-in wireless |
| 3532-250AWL | A | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" | built-in wireless |
| 3532-275AWL | A | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" | built-in wireless |
| 3532-300AWL | A | 275-300mm/10-12" | ±9μm | 0.001mm/0.00005" | built-in wireless |
| 3532-25BAWL | B | 0-25mm/0-1" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3532-50BAWL | B | 25-50mm/1-2" | ±4μm | 0.001mm/0.00005" | built-in wireless |
| 3532-75BAWL | B | 50-75mm/2-3" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3532-100BAWL | B | 75-100mm/3-4" | ±5μm | 0.001mm/0.00005" | built-in wireless |
| 3532-125BAWL | B | 100-125mm/4-5" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3532-150BAWL | B | 125-150mm/5-6" | ±6μm | 0.001mm/0.00005" | built-in wireless |
| 3532-175BAWL | B | 150-175mm/6-7" | ±7μm | 0.001mm/0.00005" | built-in wireless |
| 3532-200BAWL | B | 175-200mm/7-8" | ±7μm | 0.001mm/0.00005" | built-in wireless |
| 3532-225BAWL | B | 200-225mm/8-9" | ±8μm | 0.001mm/0.00005" | built-in wireless |
| 3532-250BAWL | B | 225-250mm/9-10" | ±8μm | 0.001mm/0.00005" | built-in wireless |
| 3532-275BAWL | B | 250-275mm/10-11" | ±9μm | 0.001mm/0.00005" | built-in wireless |
| 3532-300BAWL | B | 275-300mm/10-12" | ±9μm | 0.001mm/0.00005" | built-in wireless |

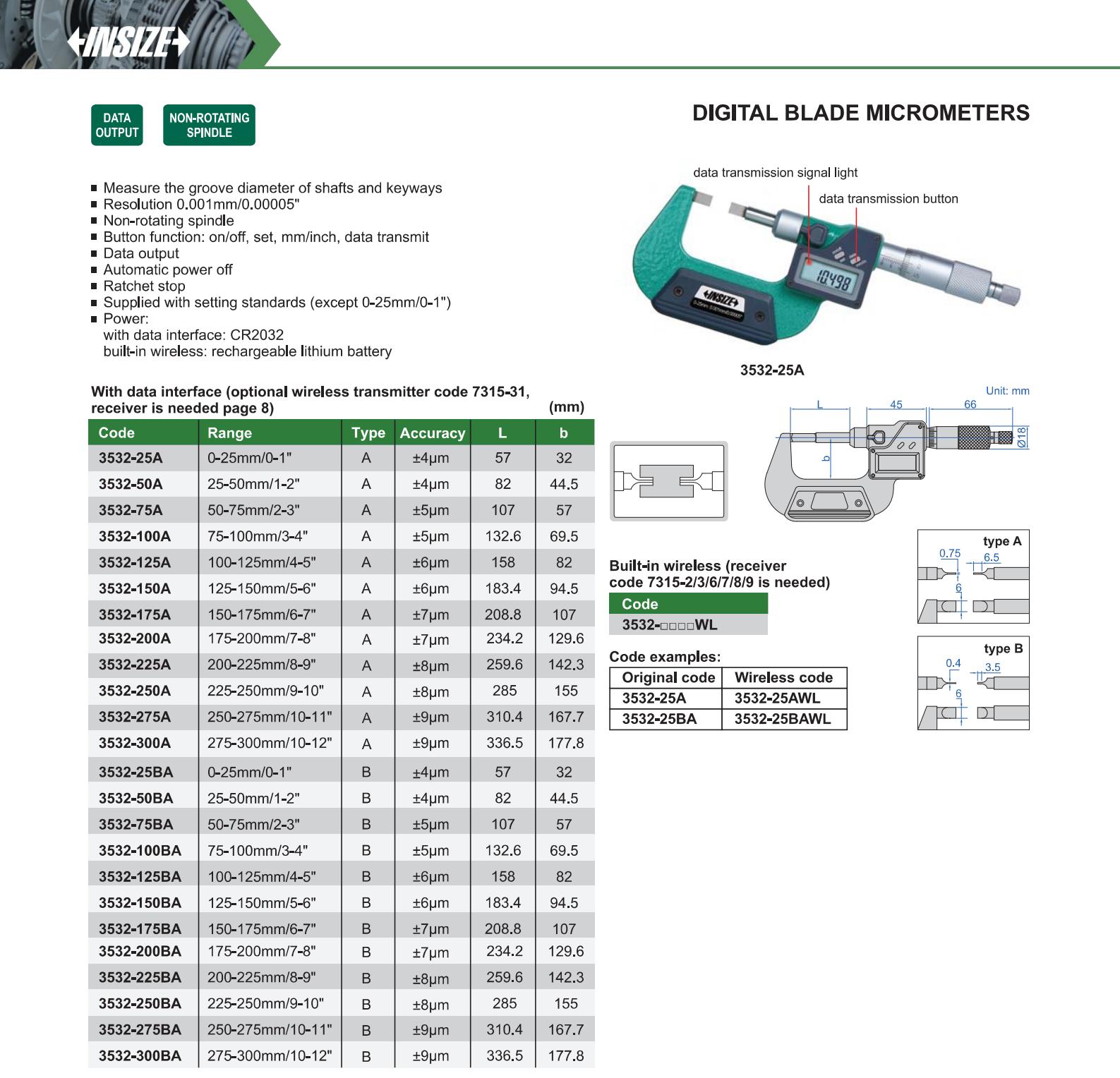

View the complete
