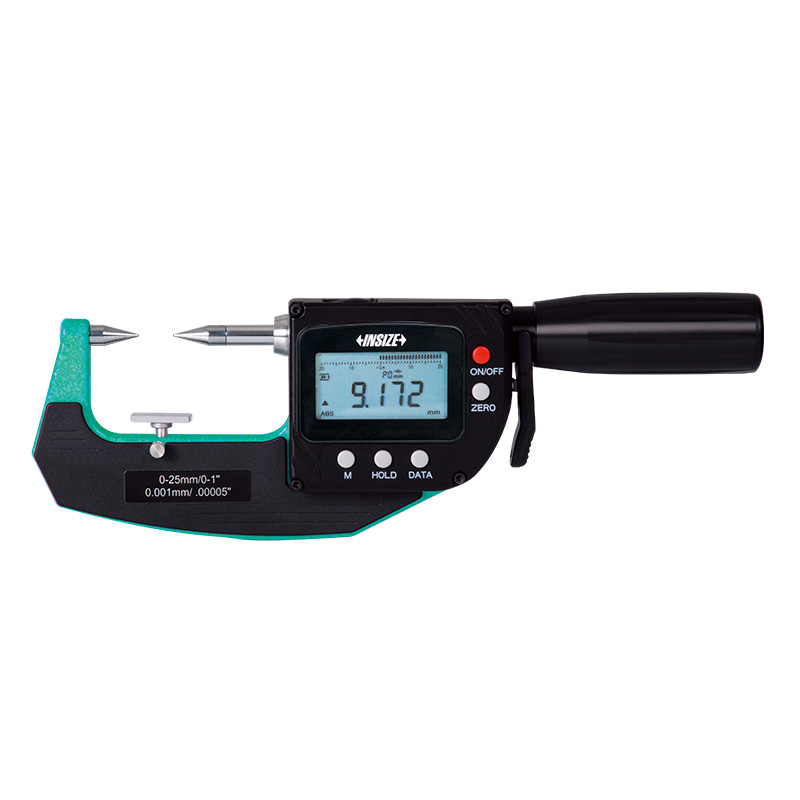

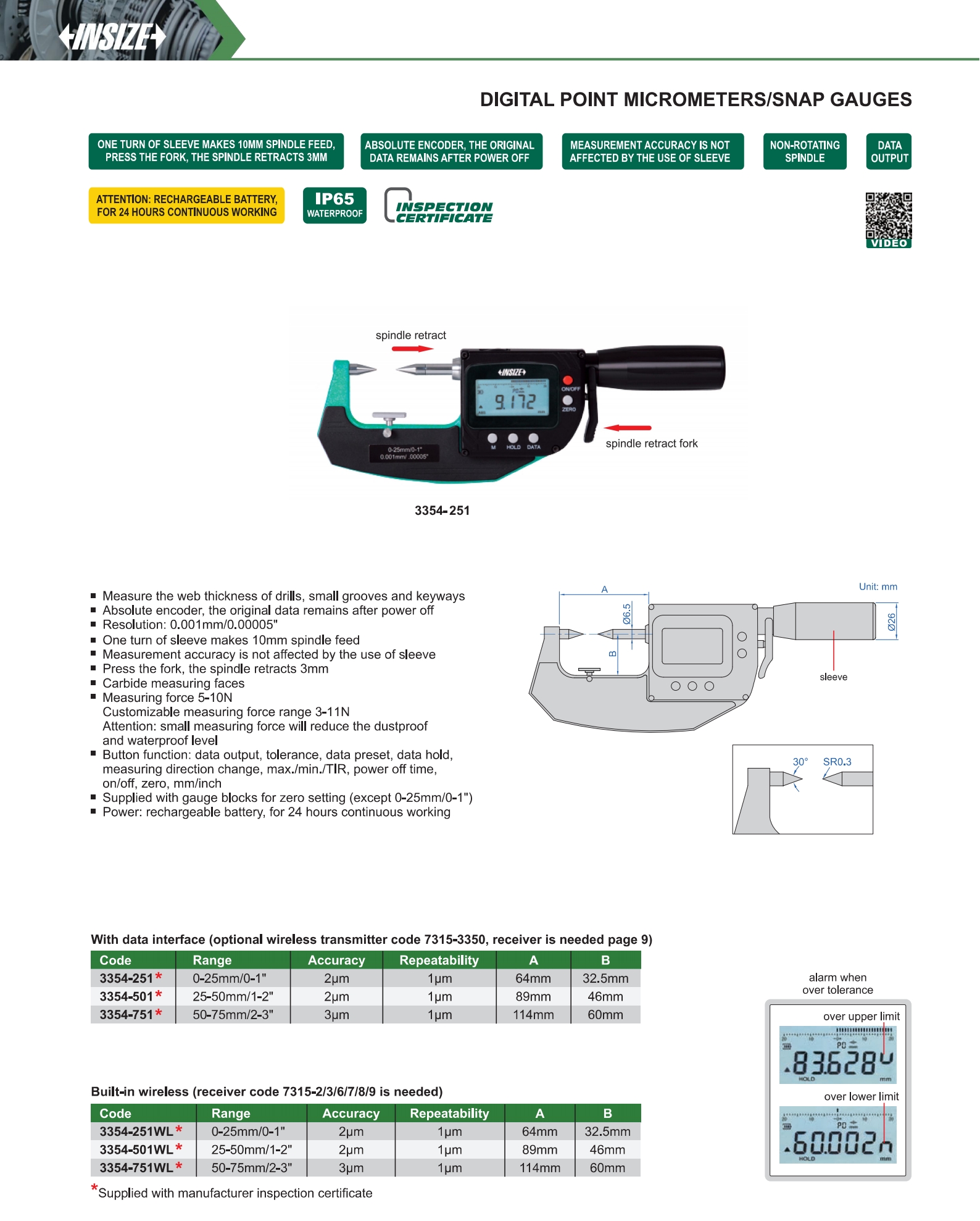

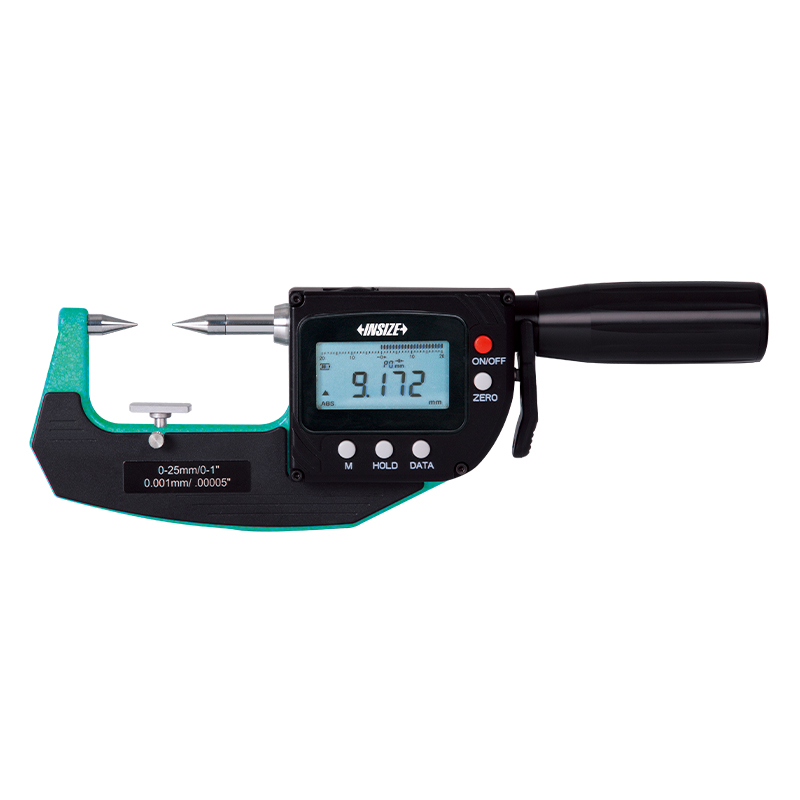

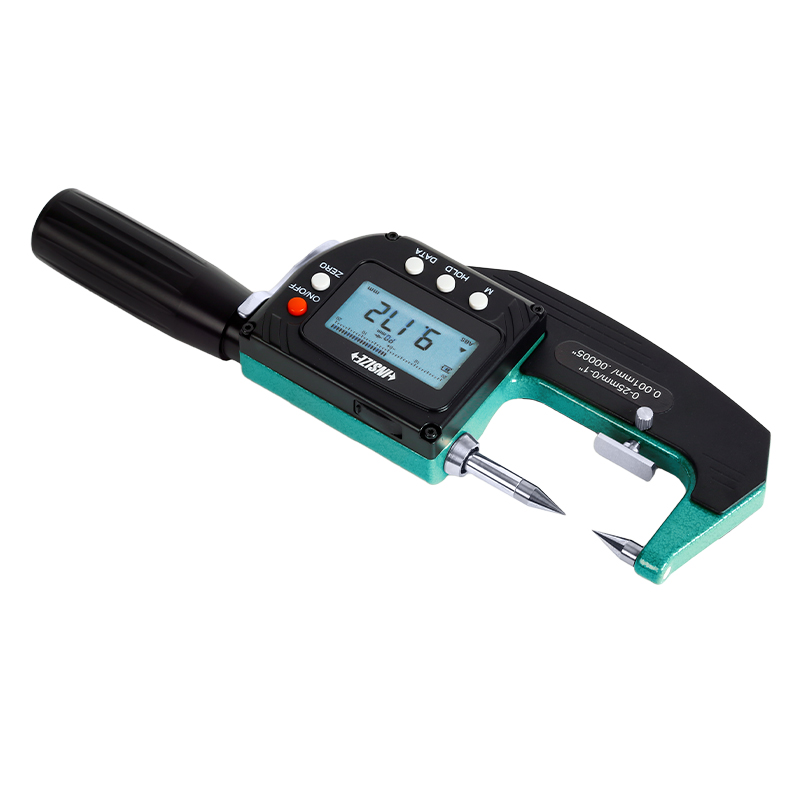

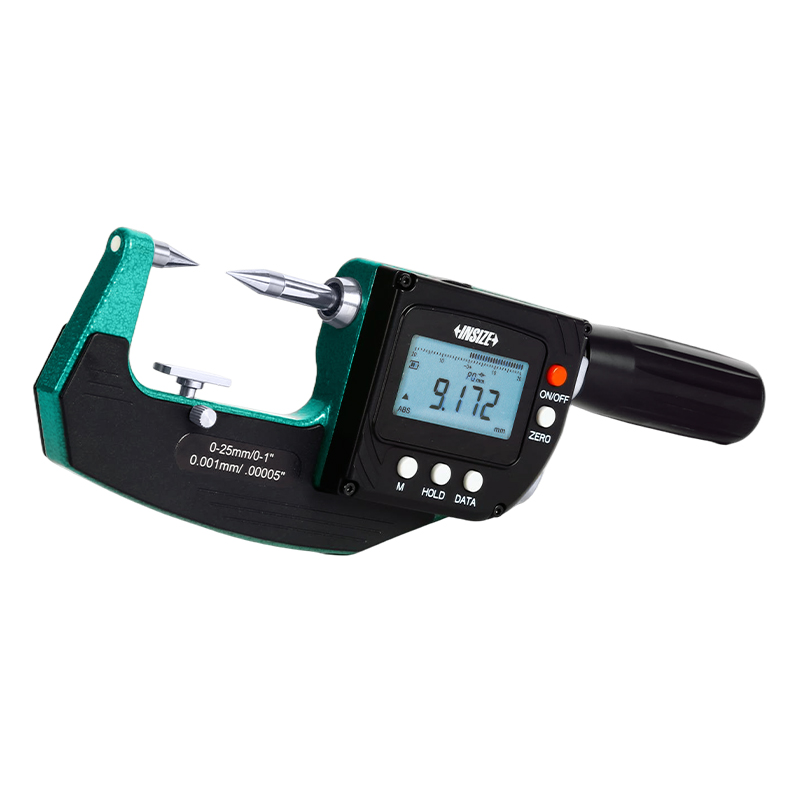

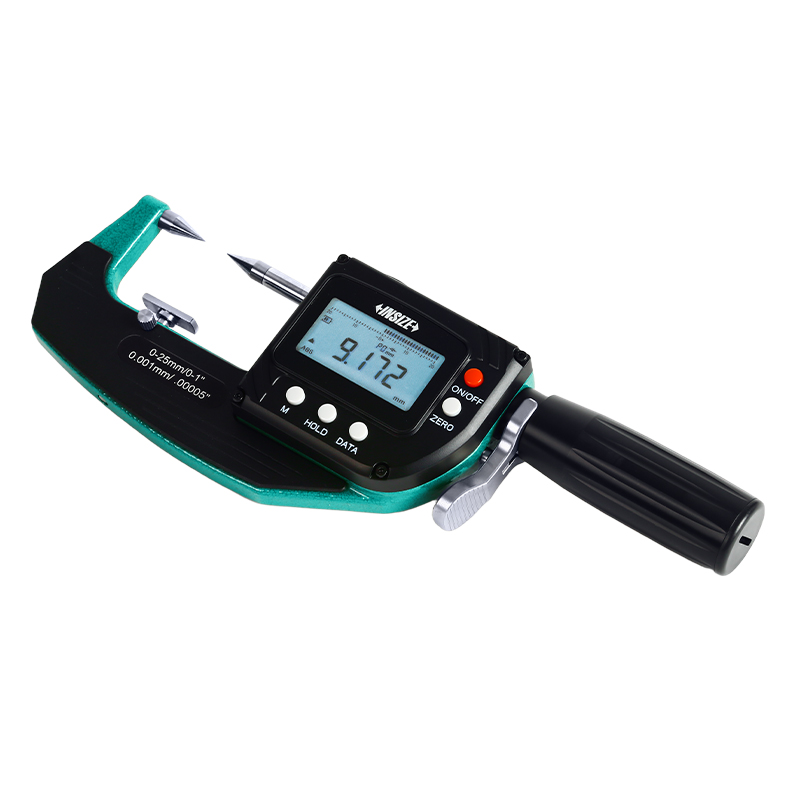

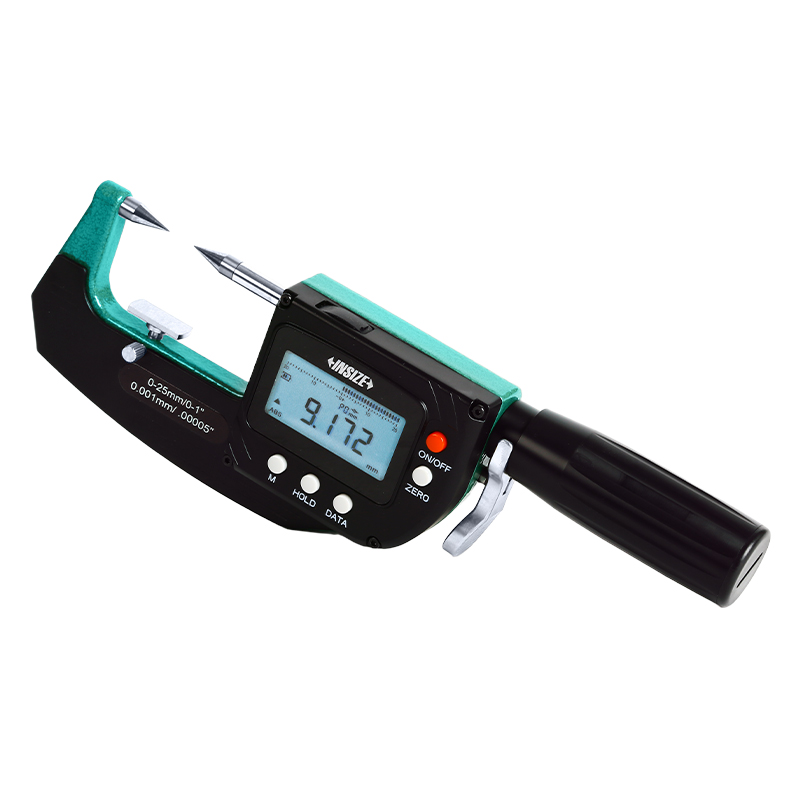

Digital Point Micrometers/Snap Gauges
Code: 3354
Measure the web thickness of drills, small grooves and keyways
Absolute encoder, the original data remains after power off
One turn of sleeve makes 10mm spindle feed
Measurement accuracy is not affected by the use of sleeve
Carbide measuring faces
Measuring force 5-10N，Customizable measuring force range 3-11N
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 3354-251 | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | with data interface |
| 3354-501 | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | with data interface |
| 3354-751 | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | with data interface |
| 3354-251AWL | 0-25mm/0-1" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3354-501AWL | 25-50mm/1-2" | 2μm | 0.001mm/0.00005" | built-in wireless |
| 3354-751AWL | 50-75mm/2-3" | 3μm | 0.001mm/0.00005" | built-in wireless |
