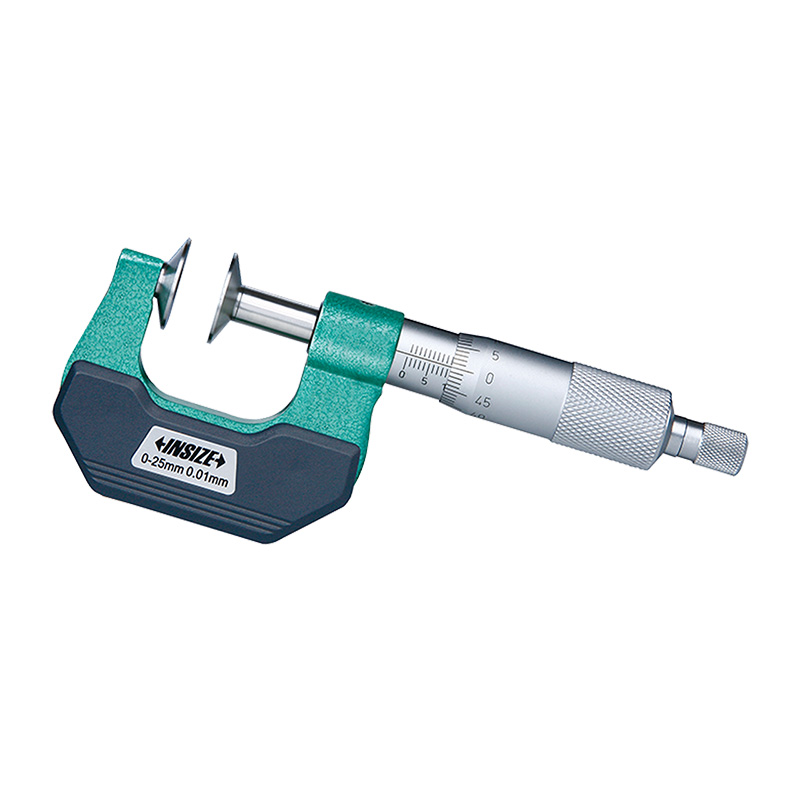

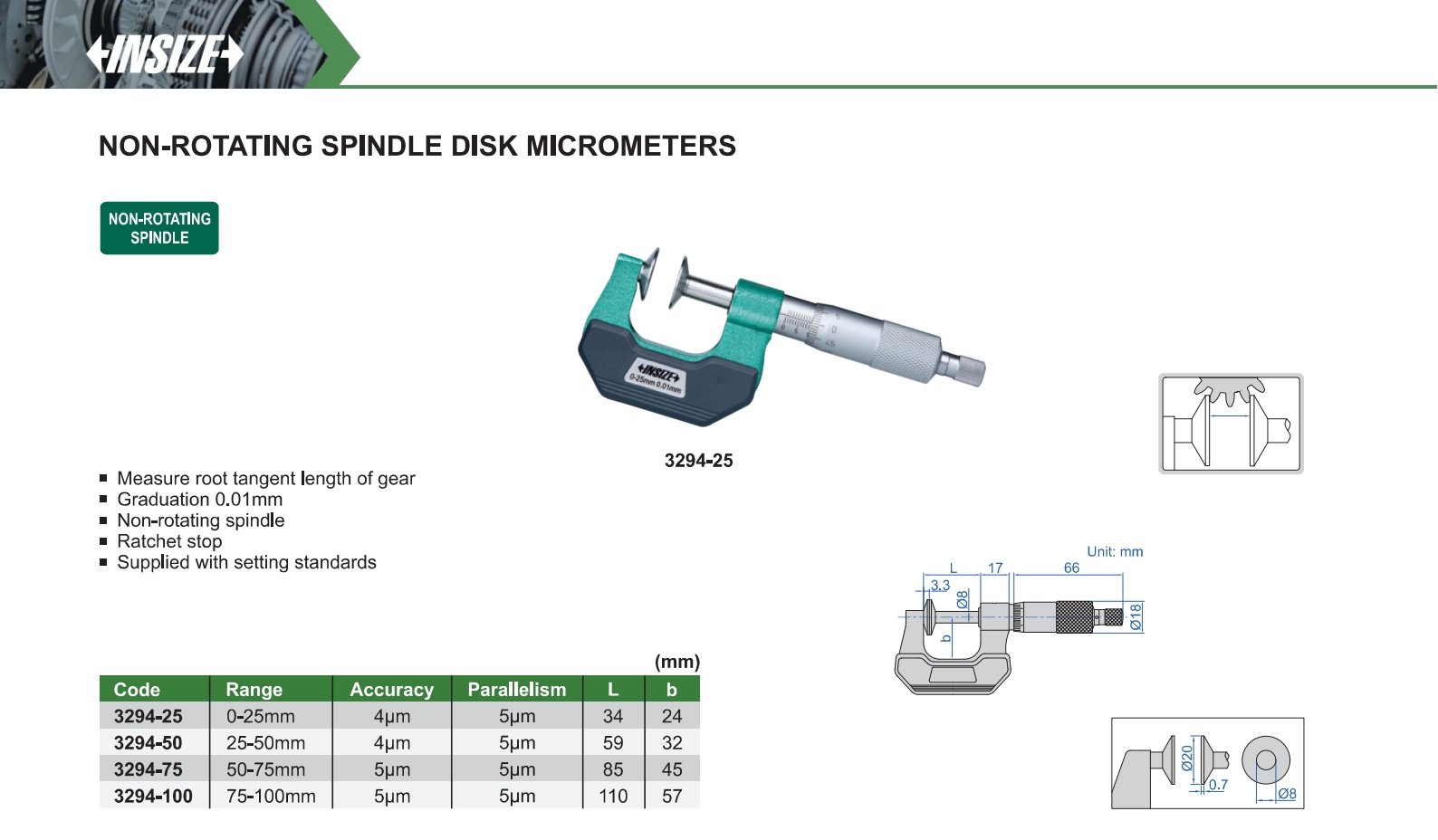

Non-Rotating Spindle Disk Micrometers
Code: 3294
Measure root tangent length of gear
Non-rotating spindle
Ratchet stop
Supplied with setting standards
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3294-25 | 0-25mm | 4μm | 0.01mm |
| 3294-50 | 25-50mm | 4μm | 0.01mm |
| 3294-75 | 50-75mm | 5μm | 0.01mm |
| 3294-100 | 75-100mm | 5μm | 0.01mm |
