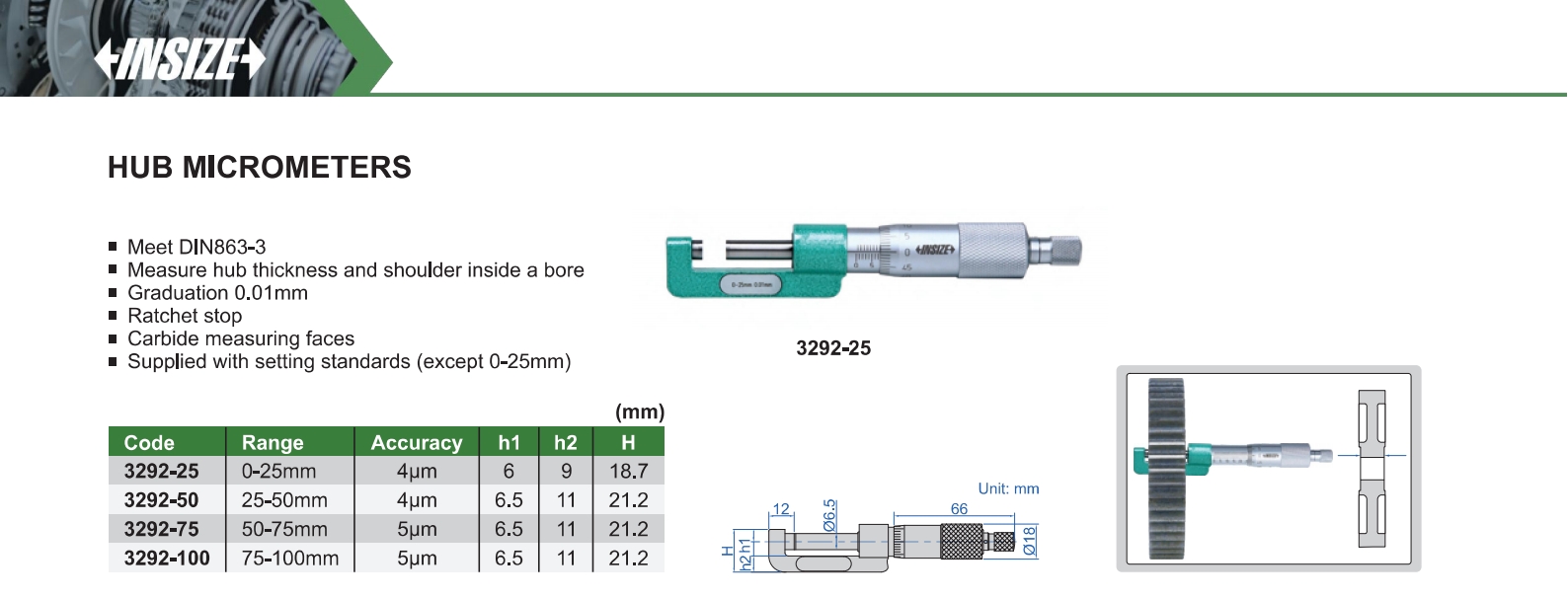

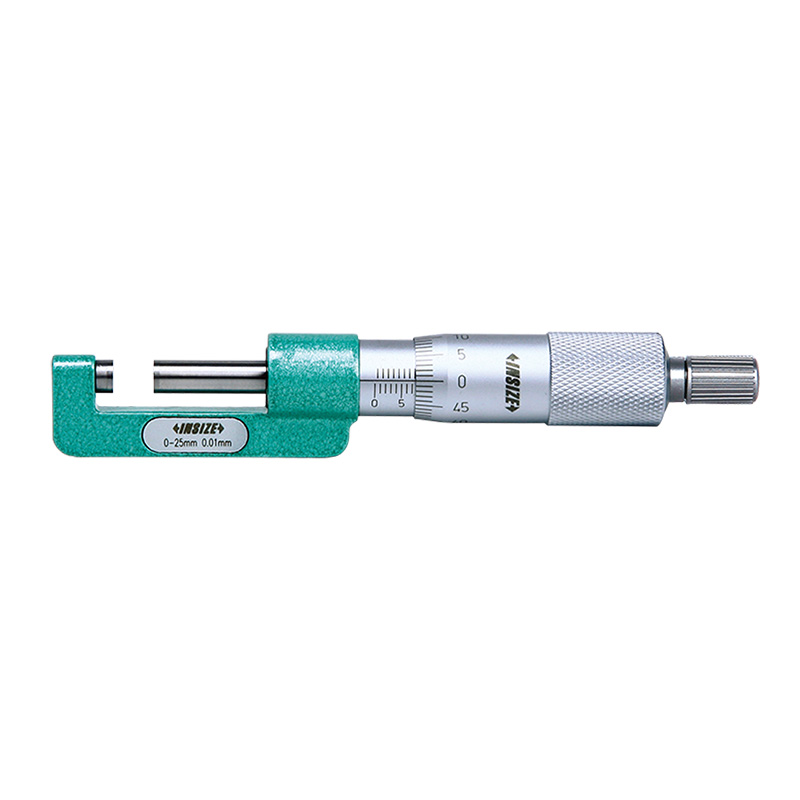

Hub Micrometers
Code: 3292
Meet DIN863-3
Measure hub thickness and shoulder inside a bore
Ratchet stop
Carbide measuring faces
Supplied with setting standards (except 0-25mm)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 3292-25 | 0-25mm | 4μm | 0.01mm |
| 3292-50 | 25-50mm | 4μm | 0.01mm |
| 3292-75 | 50-75mm | 5μm | 0.01mm |
| 3292-100 | 75-100mm | 5μm | 0.01mm |
View the complete
product specifications
