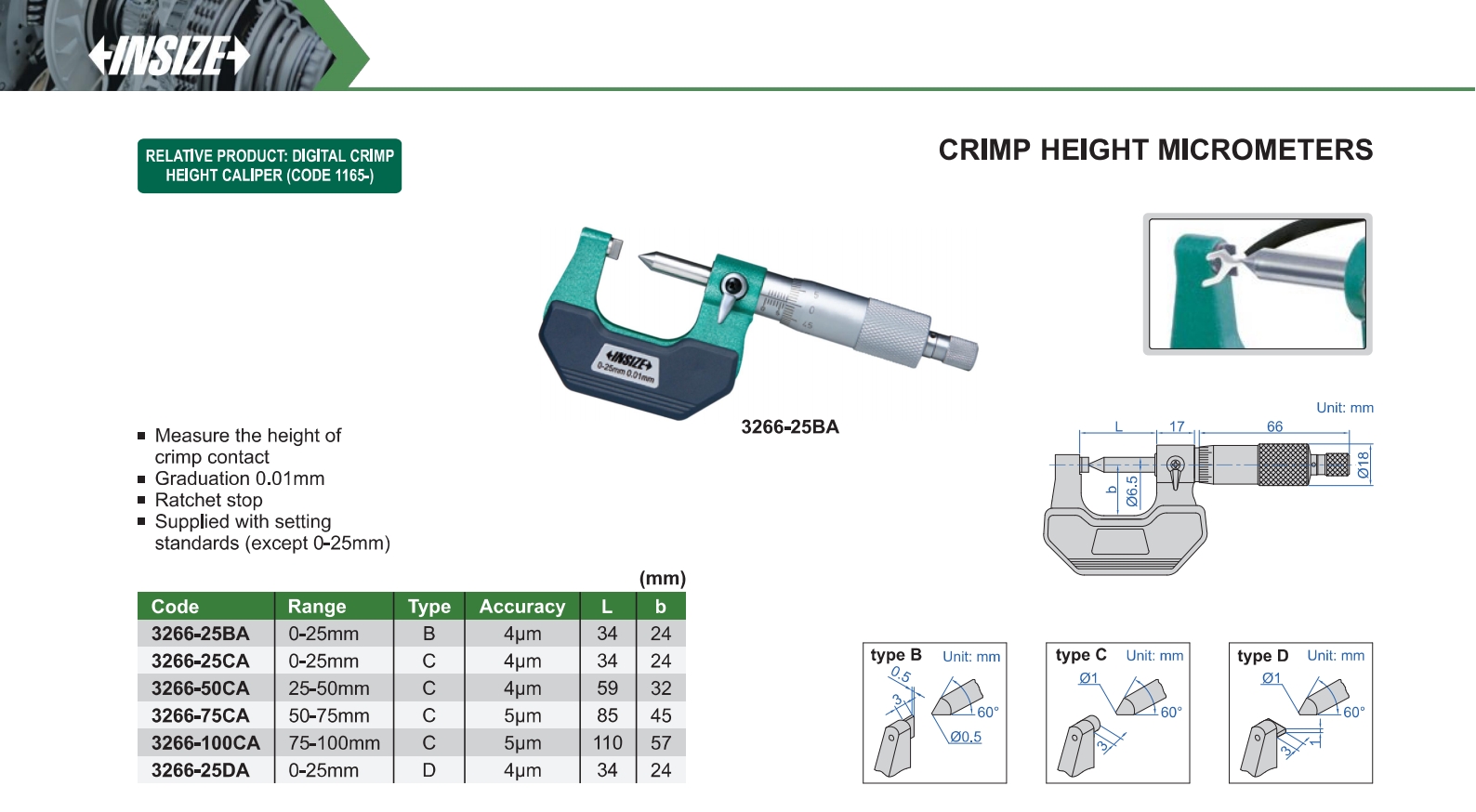

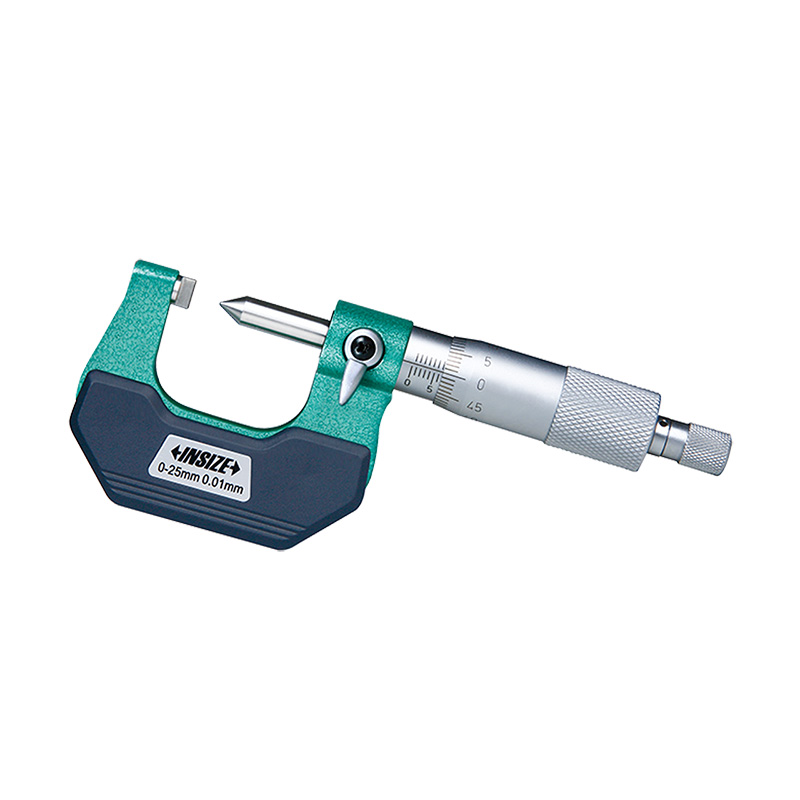

Crimp Height Micrometers
Code: 3266
Measure the height of crimp contact
Ratchet stop
Supplied with setting standards (except 0-25mm)
| Code | Type | Range | Accuracy | Graduation |
|---|---|---|---|---|
| 3266-25BA | B | 0-25mm | 4μm | 0.01mm |
| 3266-25CA | C | 0-25mm | 4μm | 0.01mm |
| 3266-50CA | C | 25-50mm | 4μm | 0.01mm |
| 3266-75CA | C | 50-75mm | 5μm | 0.01mm |
| 3266-100CA | C | 75-100mm | 5μm | 0.01mm |
| 3266-25DA | D | 0-25mm | 4μm | 0.01mm |
View the complete
product specifications
