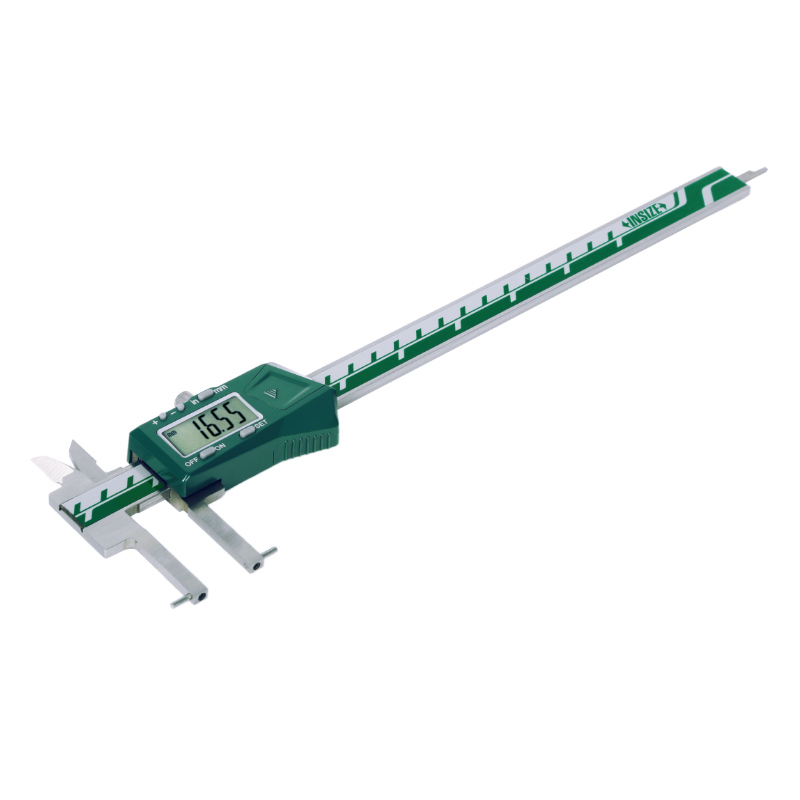

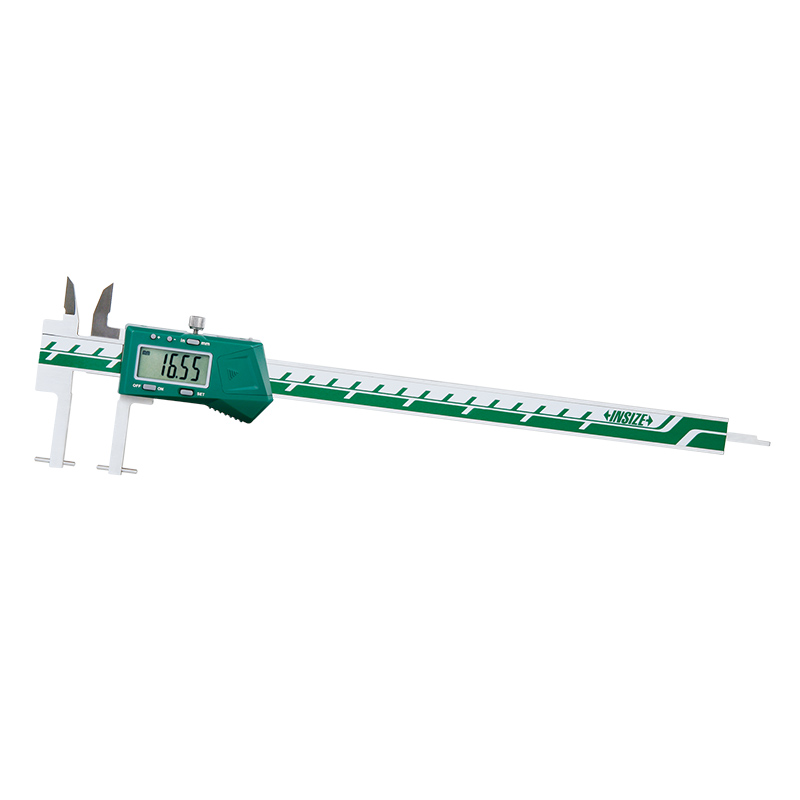

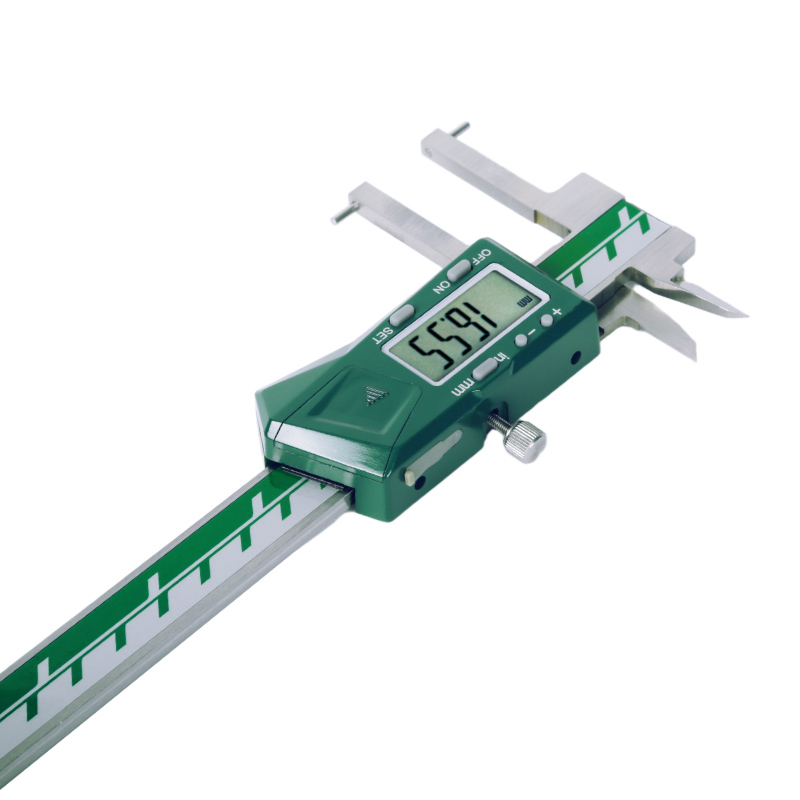

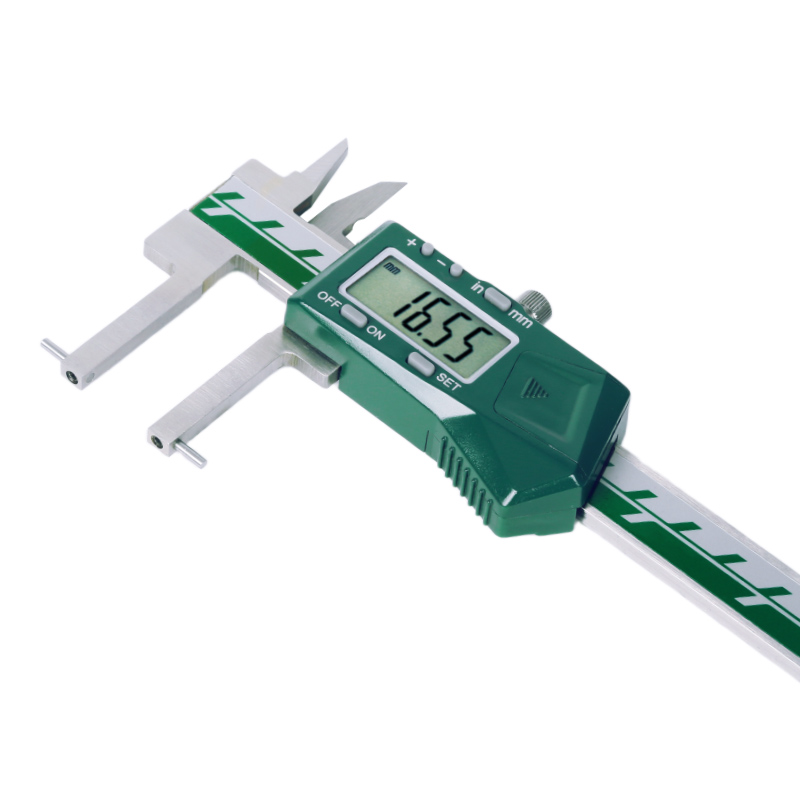

Digital Calipers With Interchangeable Points
Code: 1526
Non waterproof
Supplied with 3 pairs of points and zero setting block for external measurement
Resolution: 0.01mm/0.0005"
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output | Point |
|---|---|---|---|---|---|
| 1526-200 | 12-212mm(internal) | ±0.03mm | 0.01mm/0.0005" | with data interface | short spherical points |
| 1526-200 | 24-224mm (internal), 0-187mm (external) | ±0.03mm | 0.01mm/0.0005" | with data interface | long spherical/flat points |
| 1526-200 | 24-224mm (internal), 0-187mm (external) | ±0.03mm | 0.01mm/0.0005" | with data interface | spherical blade points |
| 1526-200WL | 12-212mm(internal) | ±0.03mm | 0.01mm/0.0005" | Built-in wireless | short spherical points |
| 1526-200WL | 24-224mm (internal), 0-187mm (external) | ±0.03mm | 0.01mm/0.0005" | Built-in wireless | long spherical/flat points |
| 1526-200WL | 24-224mm (internal), 0-187mm (external) | ±0.03mm | 0.01mm/0.0005" | Built-in wireless | spherical blade points |
View the complete
product specifications
