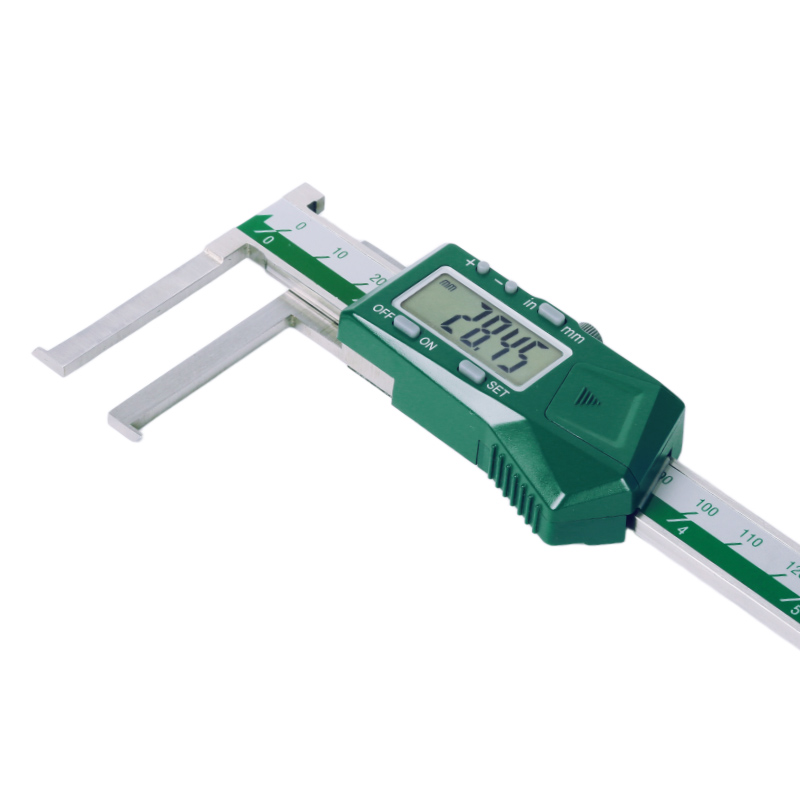

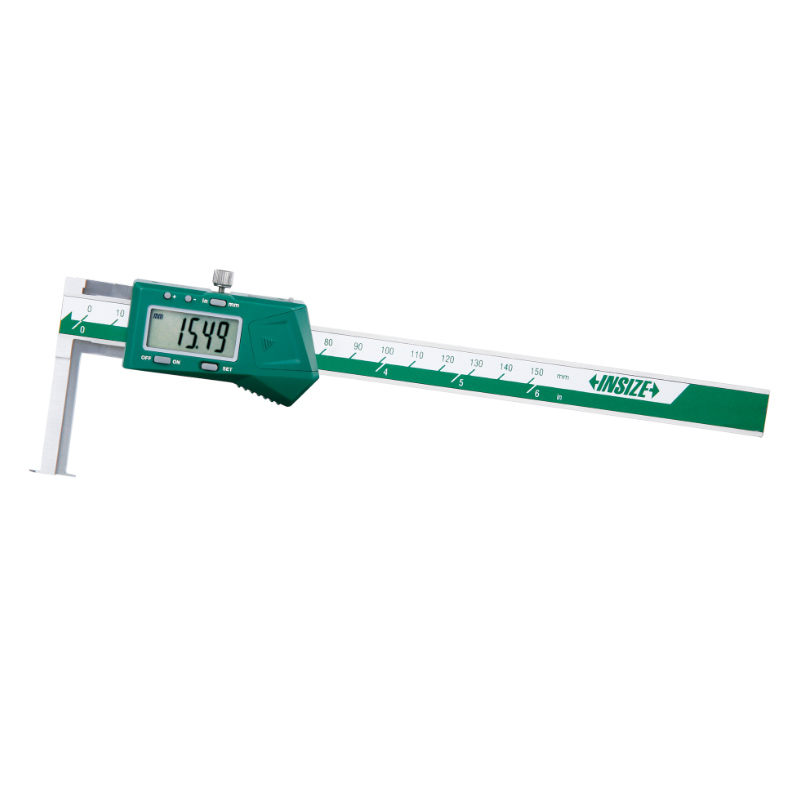

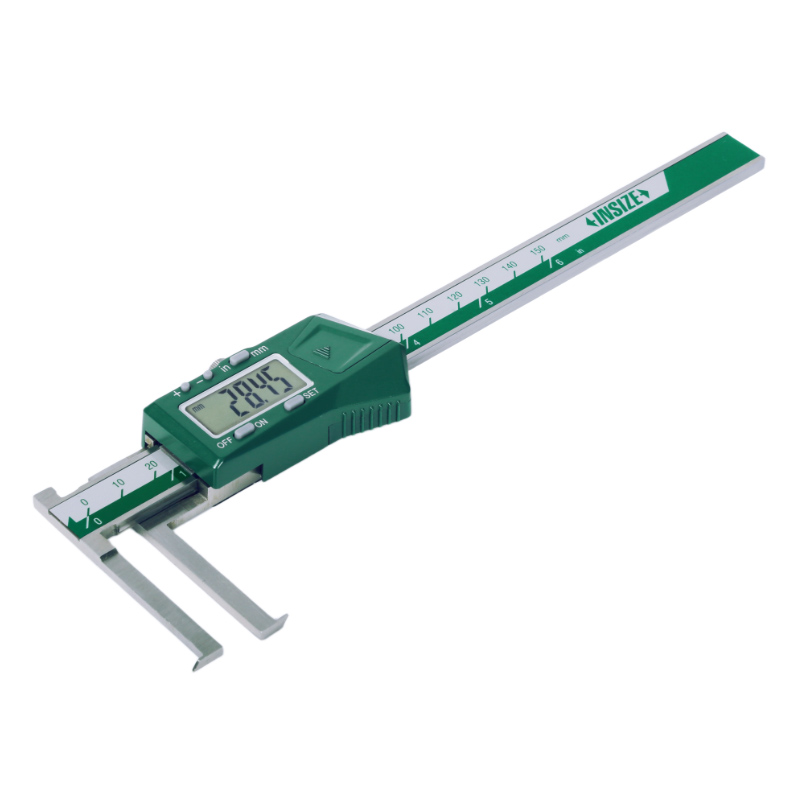

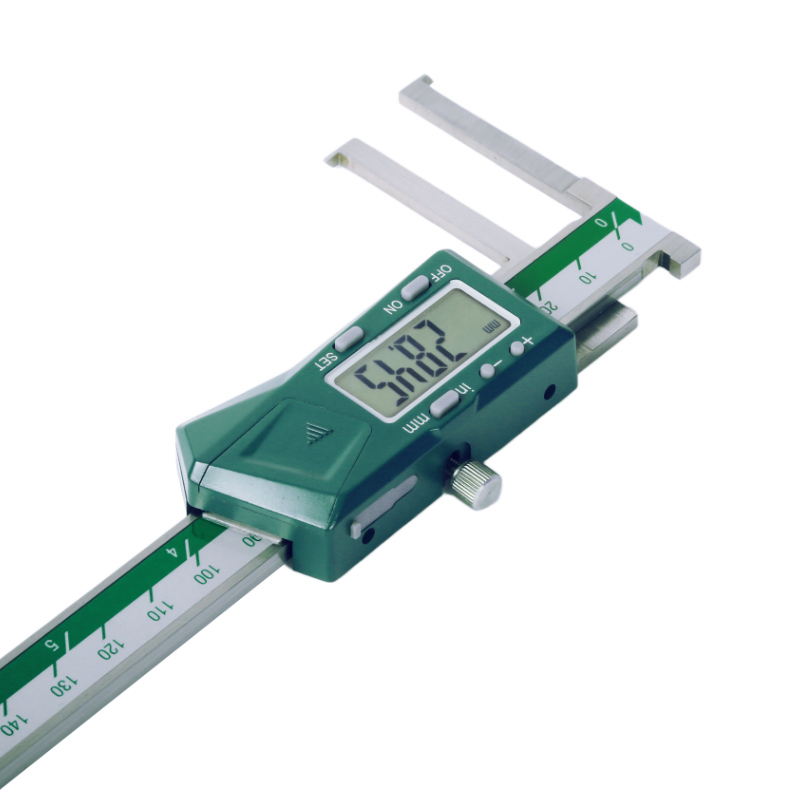

Digital Inside Groove Calipers
Code: 1520
Measure diameter of grooves inside small bores
Buttons type A: on/off, set, mm/inch, preset (+, -), type B: on/off, zero, mm/inch, ABS/REL, hold
Battery CR2032
Made of stainless steel
| Code | Type | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|---|
| 1520-150 | A | 11-150mm/0.43-6" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1520-200 | A | 16-200mm/0.63-8" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1520-300 | A | 20-300mm/0.79-12" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1520-150WL | A | 11-150mm/0.43-6" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
| 1520-200WL | A | 16-200mm/0.63-8" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
| 1520-300WL | A | 20-300mm/0.79-12" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1520-150P | B | 14-150mm/0.56-6" | ±0.04mm | 0.01mm/0.0005" | without data interface |
| 1520-1501P | B | 8-150mm/0.31-6" | ±0.04mm | 0.01mm/0.0005" | without data interface |
