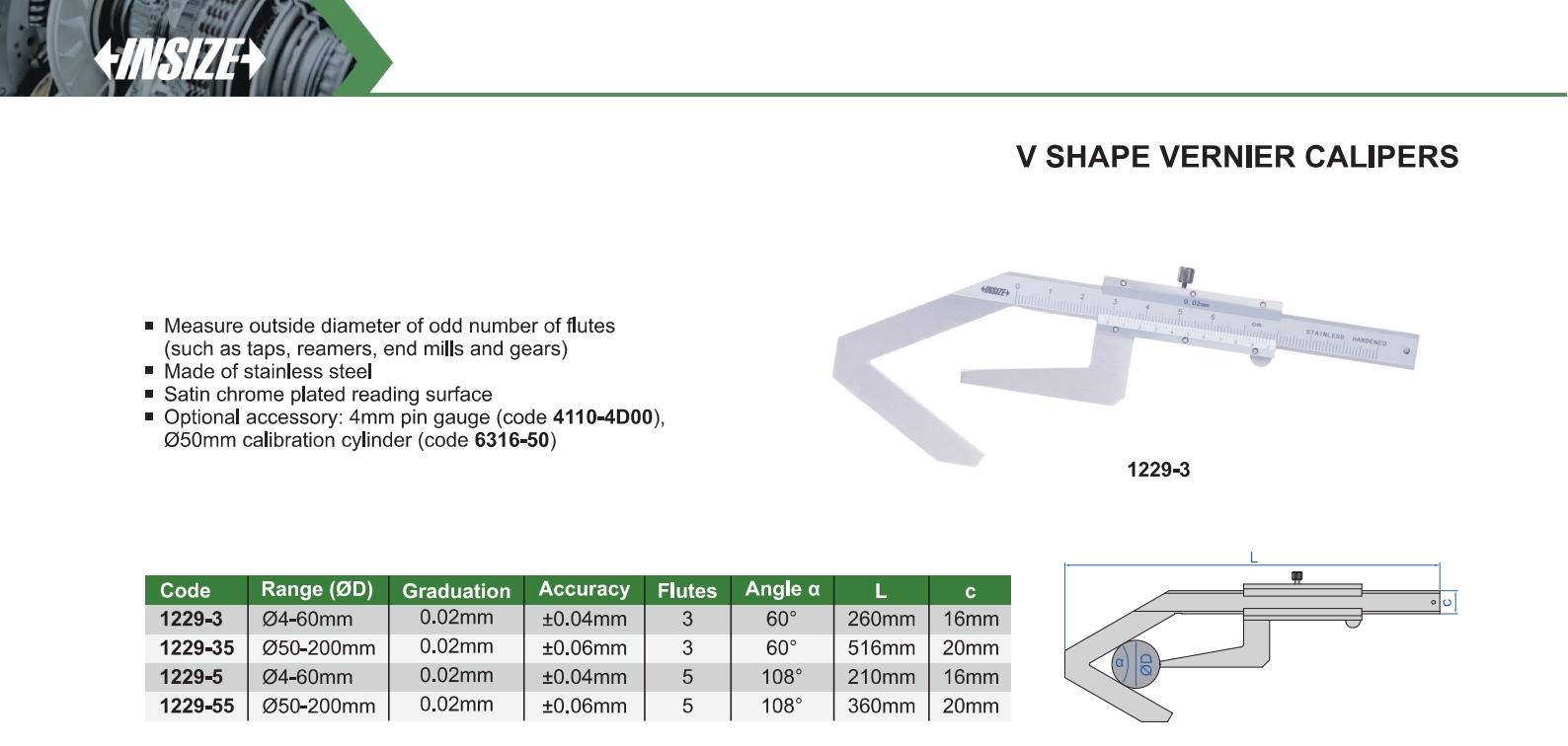

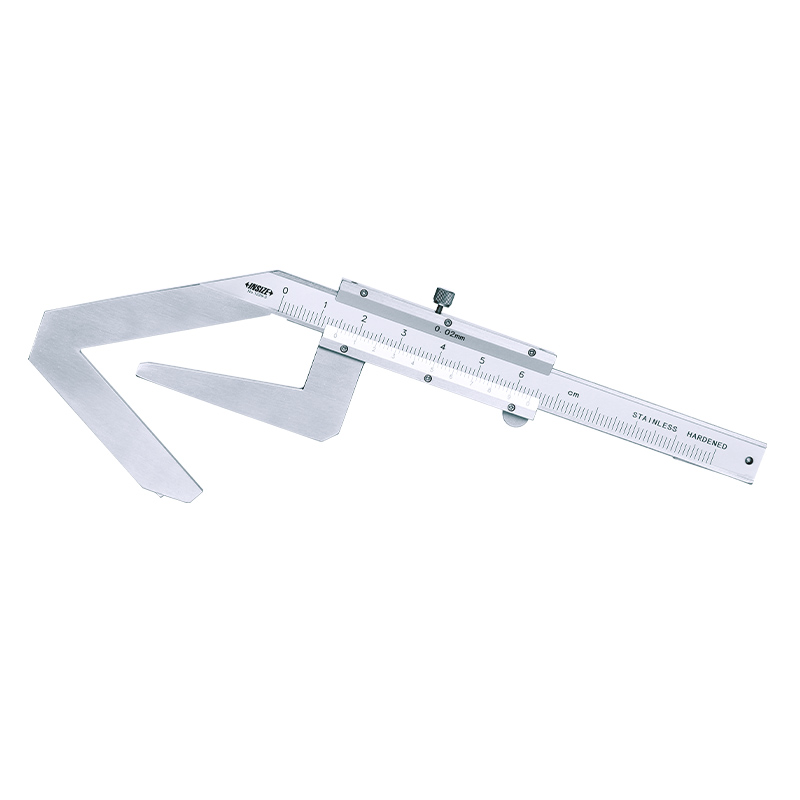

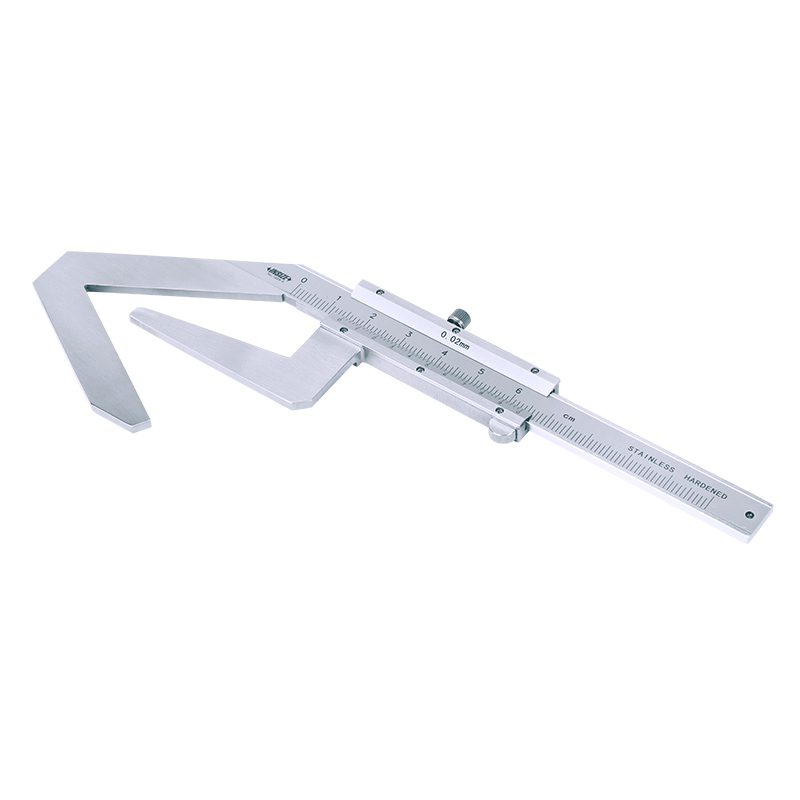

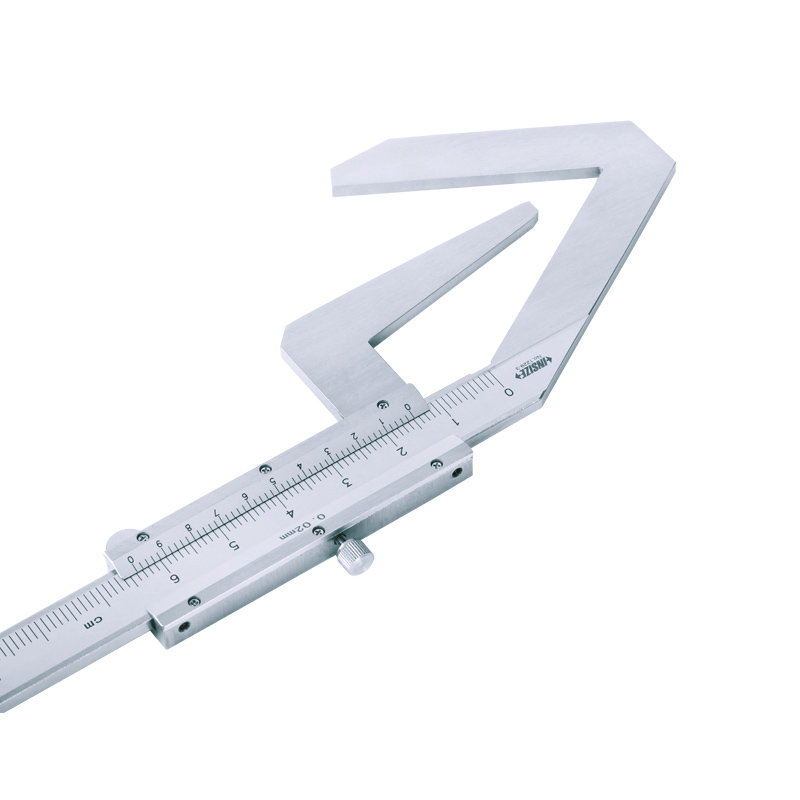

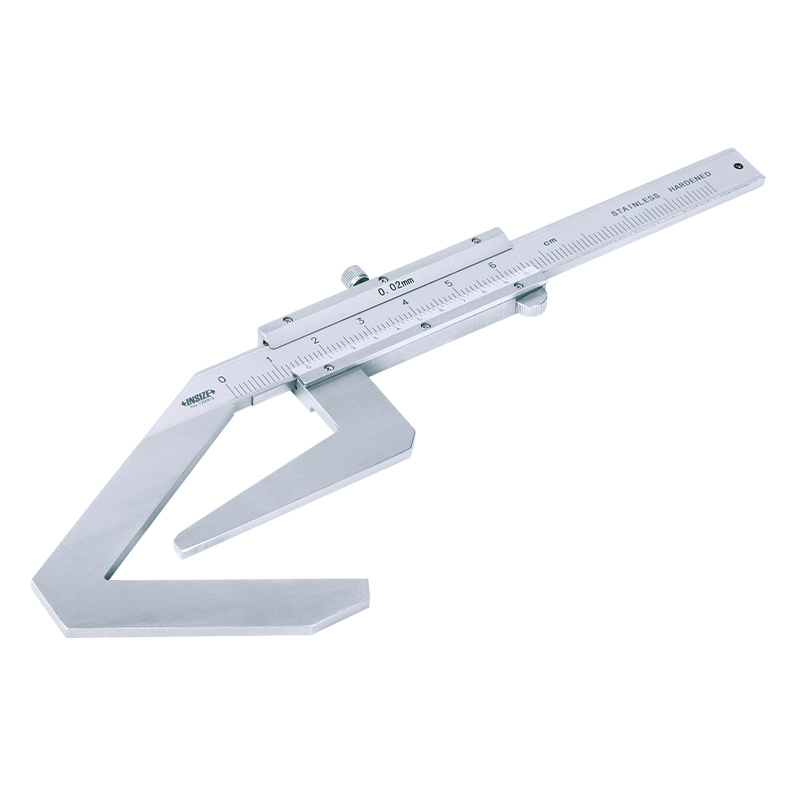

V Shape Vernier Calipers
Code: 1229
Measure outside diameter of odd number of flutes (such as taps, reamers, end mills and gears)
Made of stainless steel
Satin chrome plated reading surface
Optional accessory: 4mm pin gauge (code 4110-4D00), Ø50mm calibration cylinder (code 6316-50)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 1229-3 | Ø4-60mm | ±0.04mm | 0.02mm |
| 1229-35 | Ø50-200mm | ±0.06mm | 0.02mm |
| 1229-5 | Ø4-60mm | ±0.04mm | 0.02mm |
| 1229-55 | Ø50-200mm | ±0.06mm | 0.02mm |
