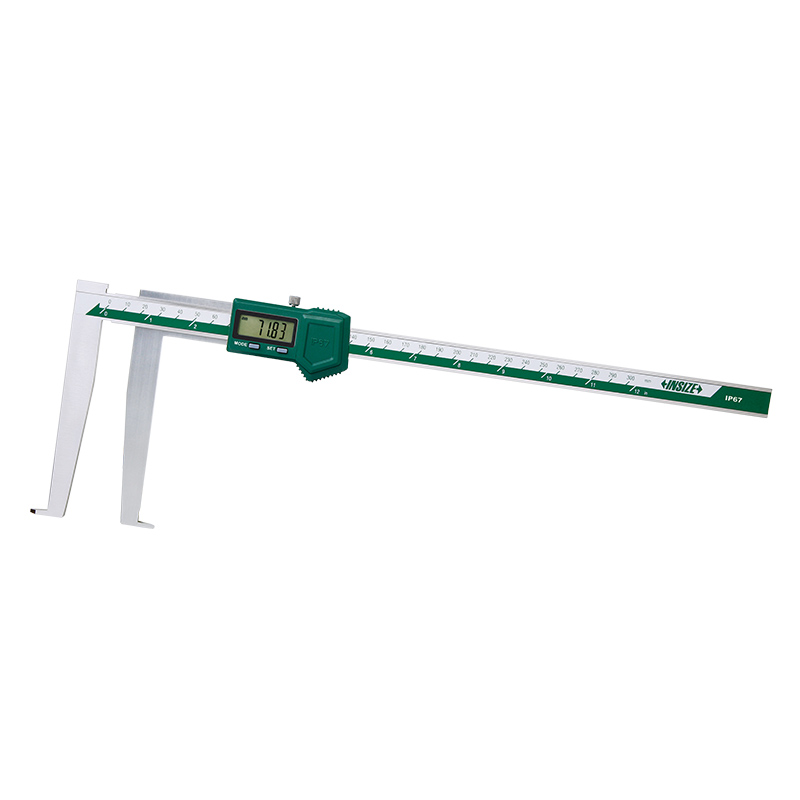

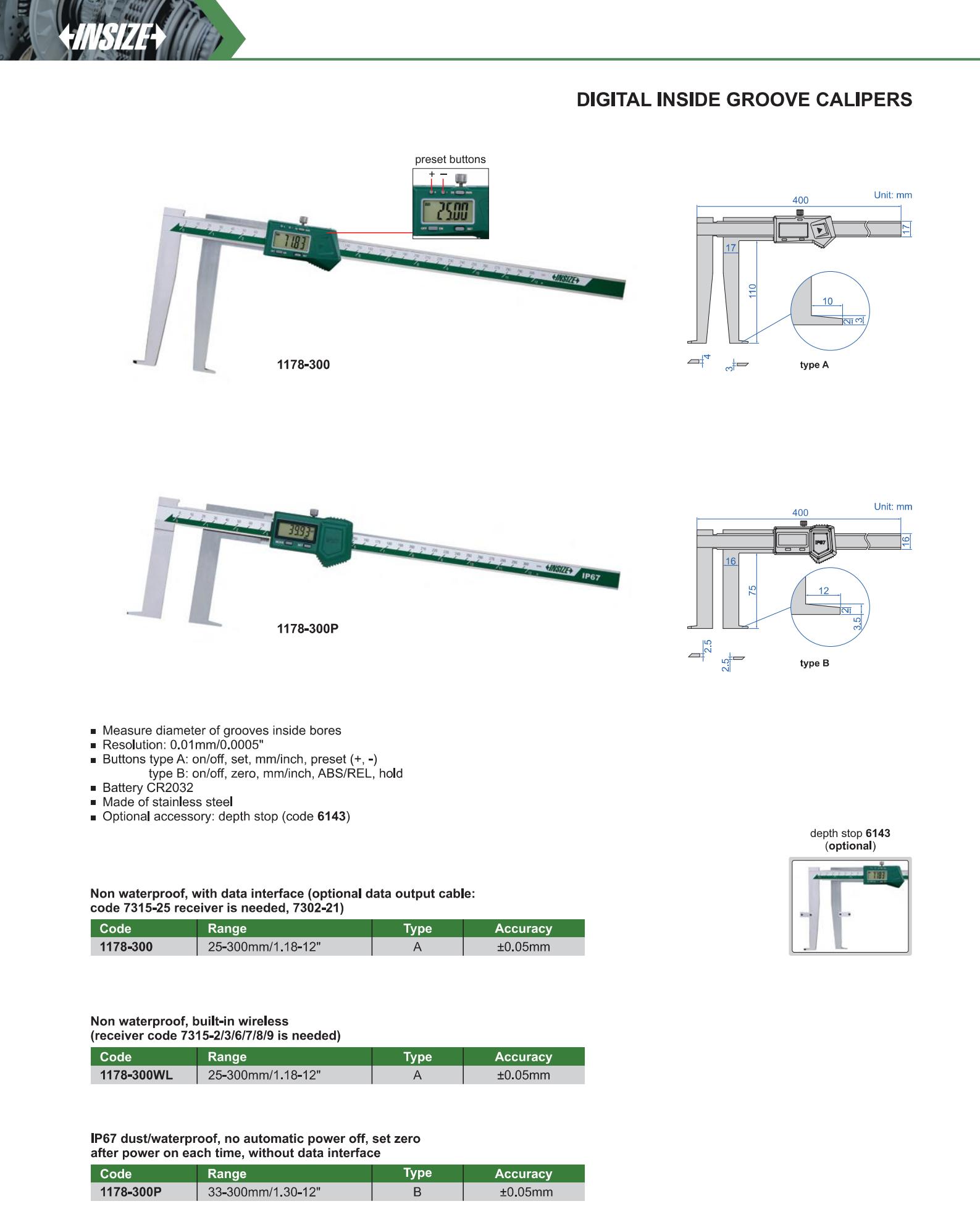

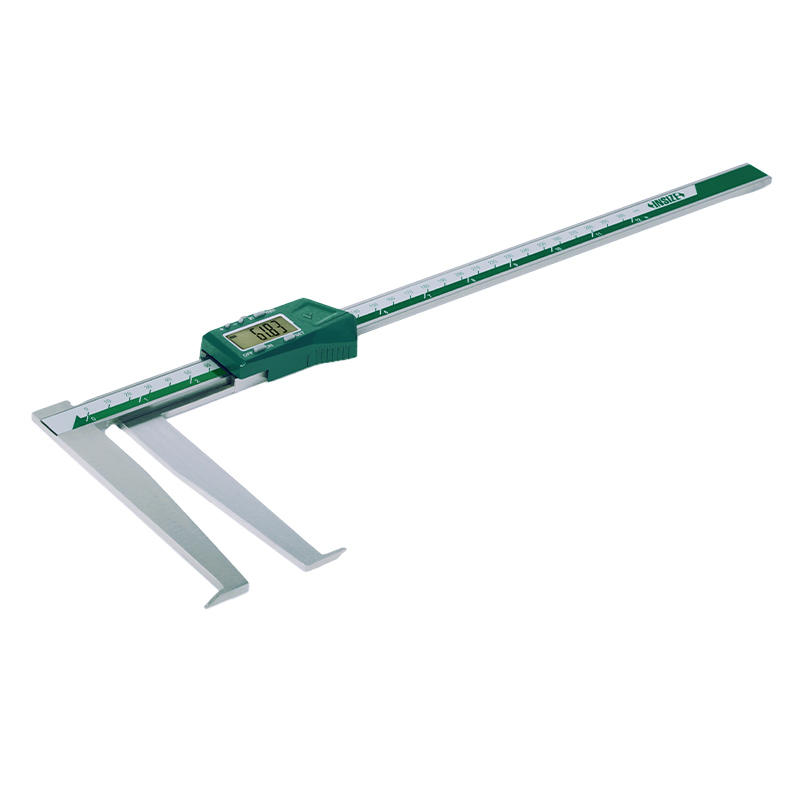

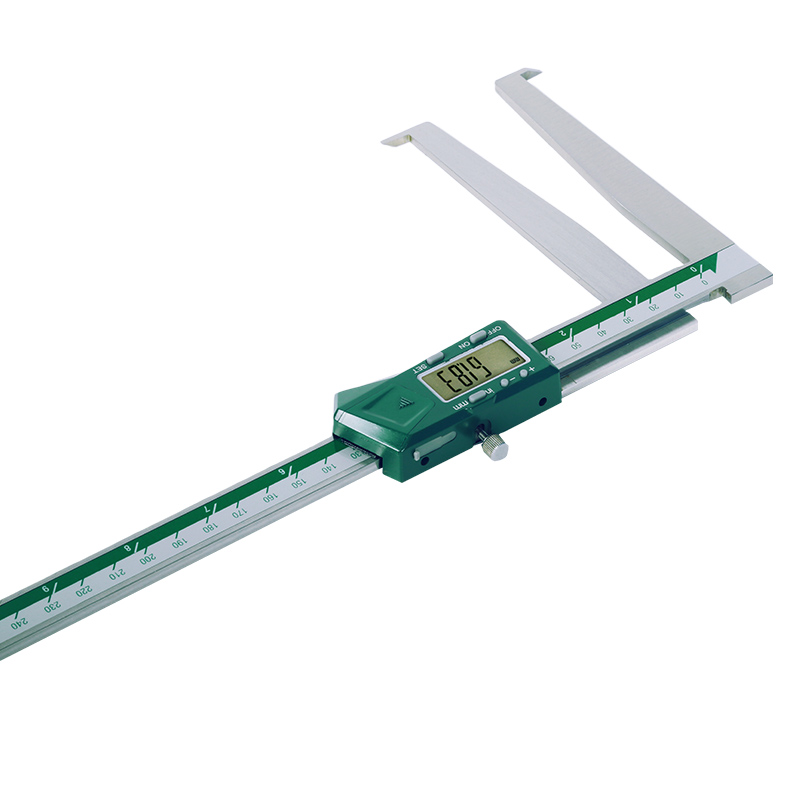

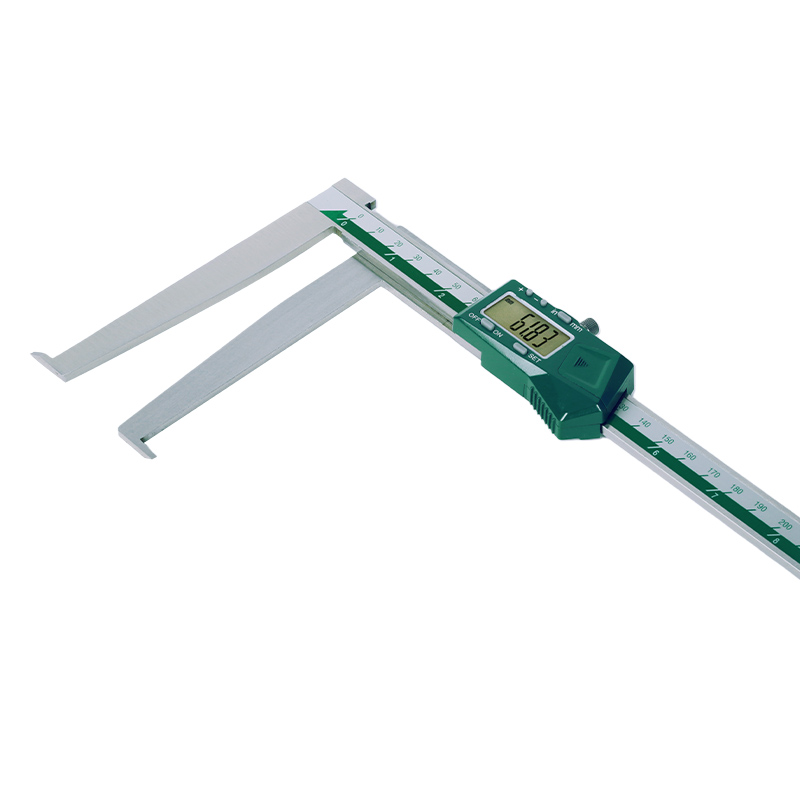

Digital Inside Groove Calipers
Code: 1178
Measure diameter of grooves inside bores
Buttons type A: on/off, set, mm/inch, preset (+, -), type B: on/off, zero, mm/inch, ABS/REL, hold
Battery CR2032
Made of stainless steel
Optional accessory: depth stop (code 6143)
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1178-300 | 25-300mm/1.18-12" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1178-300WL | 25-300mm/1.18-12" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1178-300P | 33-300mm/1.30-12" | ±0.05mm | 0.01mm/0.0005" | without data interface |
