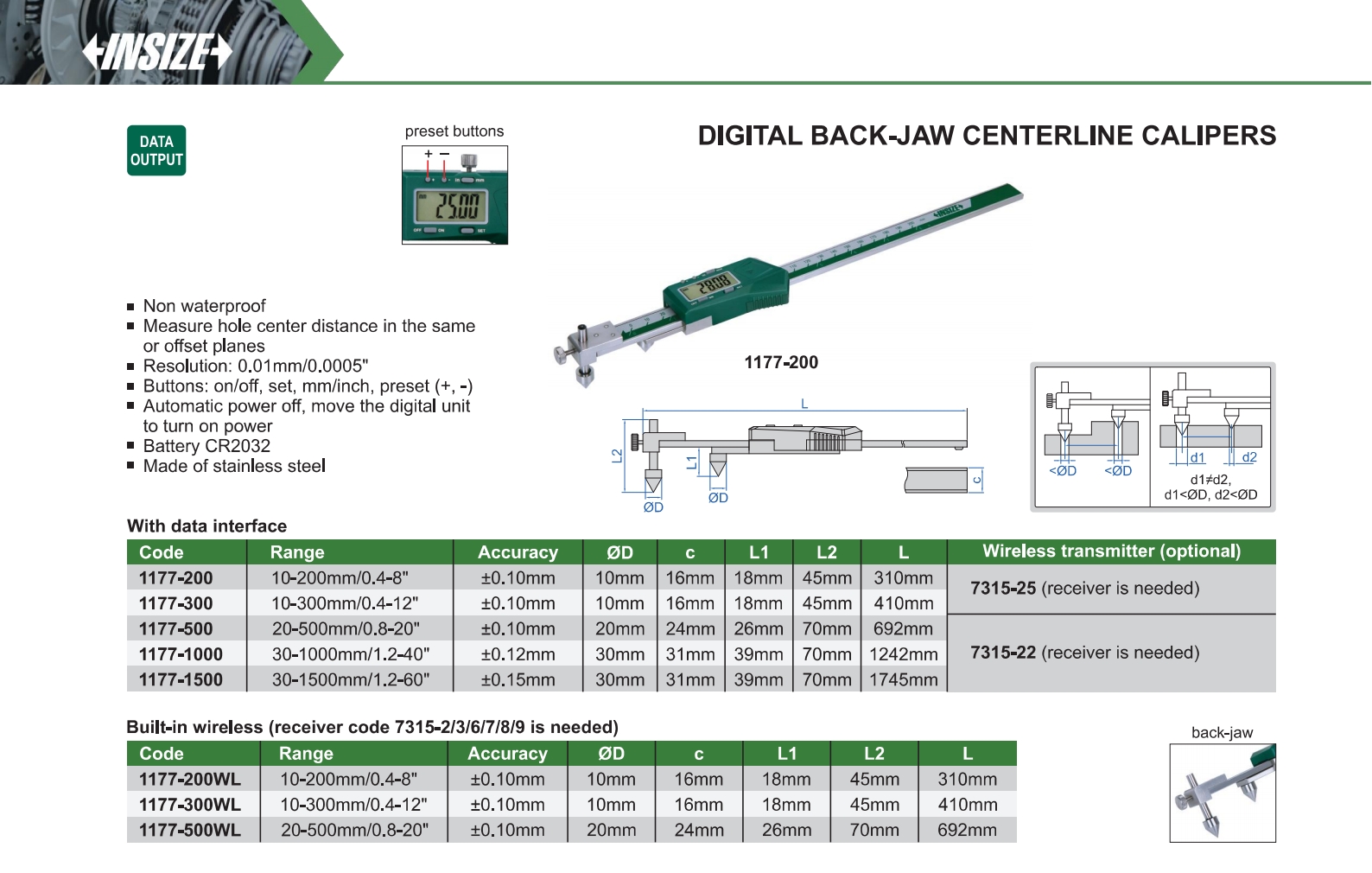

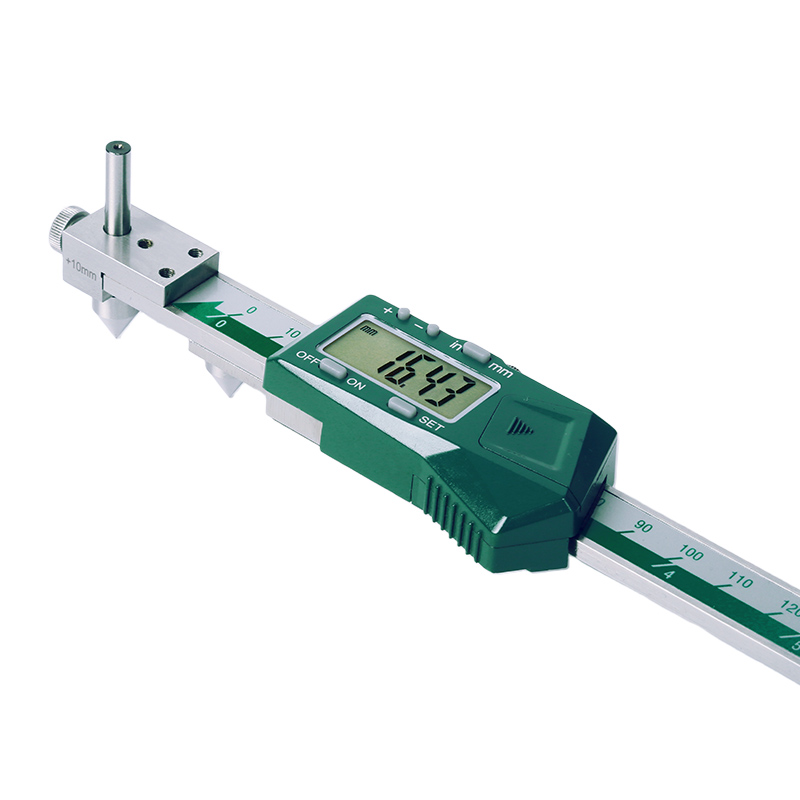

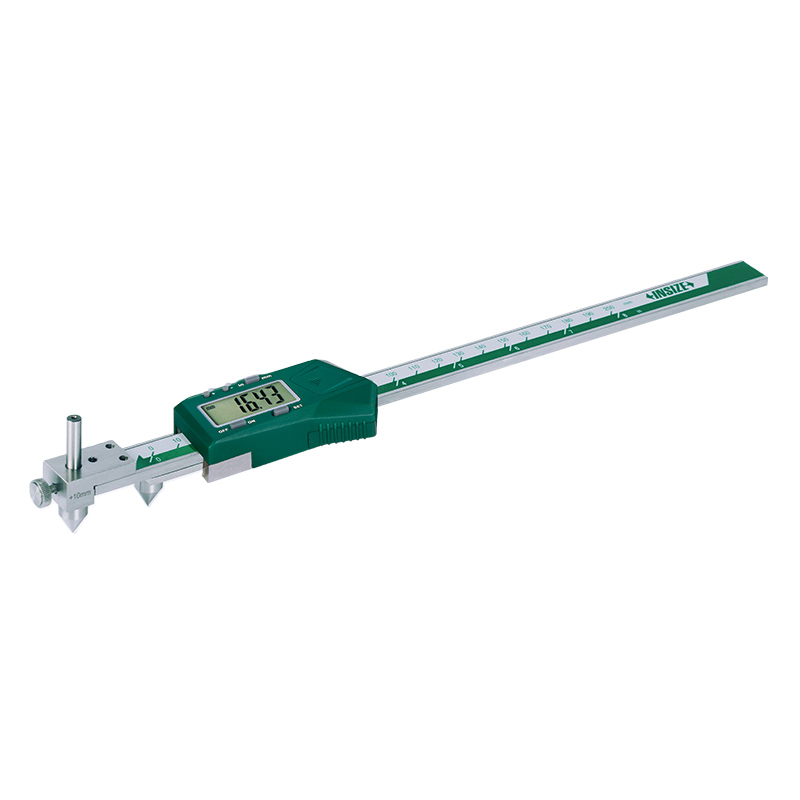

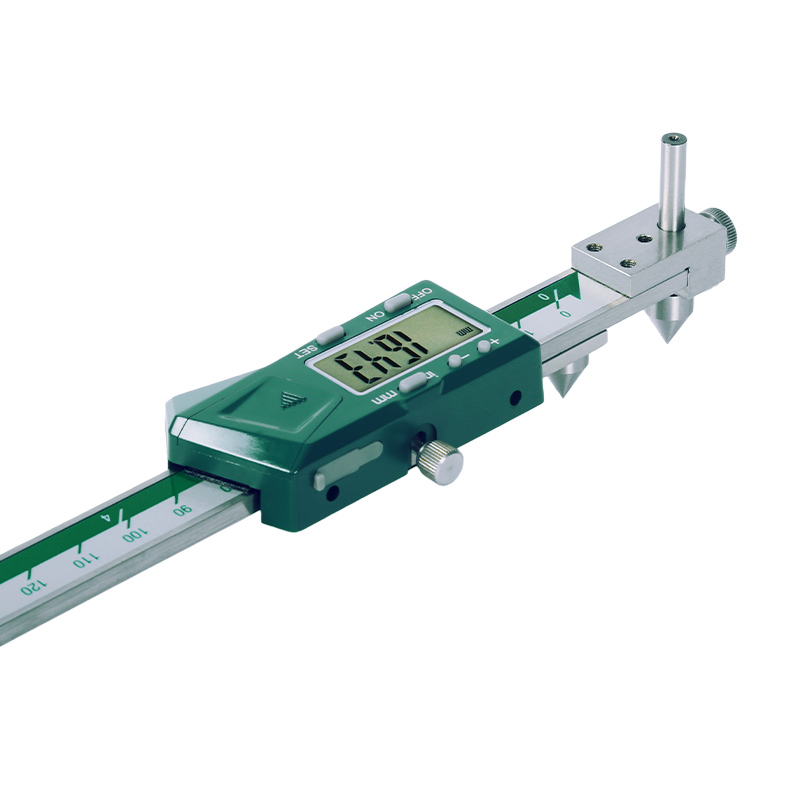

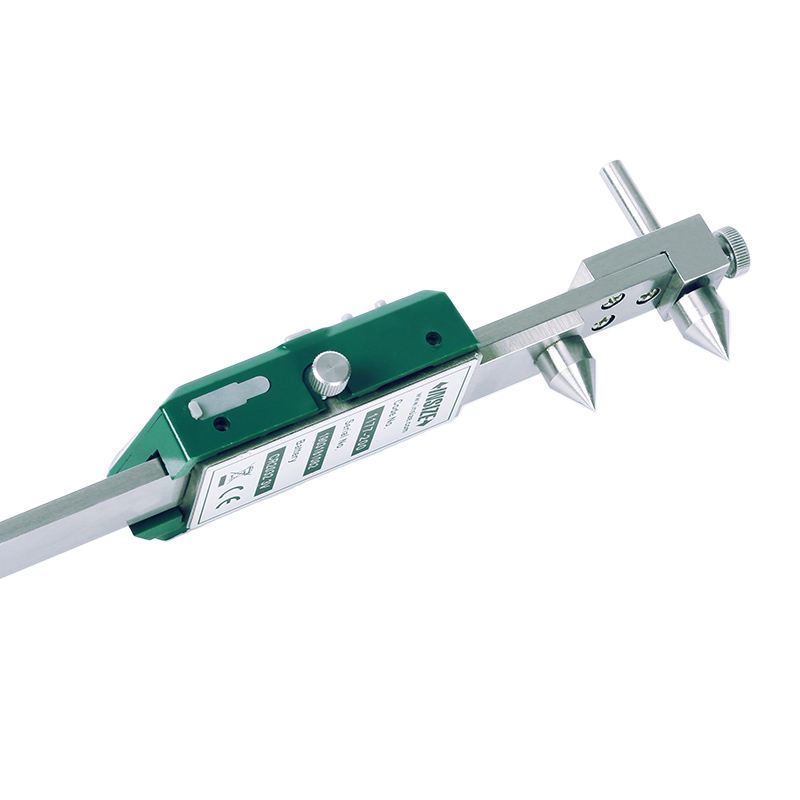

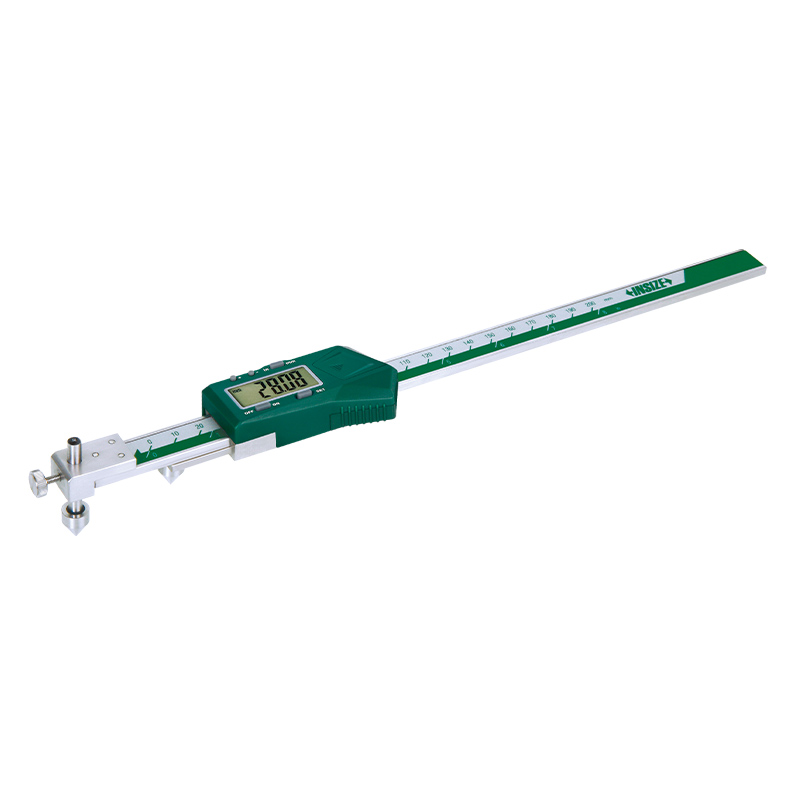

Digital Back-Jaw Centerline Calipers
Code: 1177
Non waterproof
Measure hole center distance in the same or offset planes
Buttons: on/off, set, mm/inch, preset (+, -)
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1177-200 | 10-200mm/0.4-8" | ±0.10mm | 0.01mm/0.0005" | with data interface |
| 1177-300 | 10-300mm/0.4-12" | ±0.10mm | 0.01mm/0.0005" | with data interface |
| 1177-500 | 20-500mm/0.8-20" | ±0.10mm | 0.01mm/0.0005" | with data interface |
| 1177-1000 | 30-1000mm/1.2-40" | ±0.12mm | 0.01mm/0.0005" | with data interface |
| 1177-1500 | 30-1500mm/1.2-60" | ±0.15mm | 0.01mm/0.0005" | with data interface |
| 1177-200WL | 10-200mm/0.4-8" | ±0.10mm | 0.01mm/0.0005" | built-in wireless |
| 1177-300WL | 10-300mm/0.4-12" | ±0.10mm | 0.01mm/0.0005" | built-in wireless |
| 1177-500WL | 20-500mm/0.8-20" | ±0.10mm | 0.01mm/0.0005" | built-in wireless |
