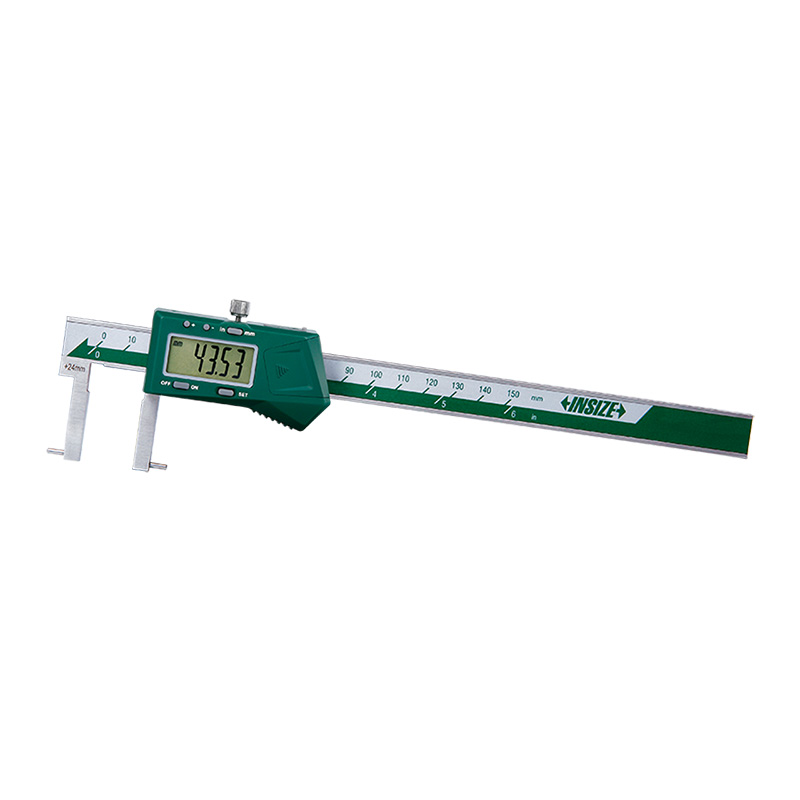

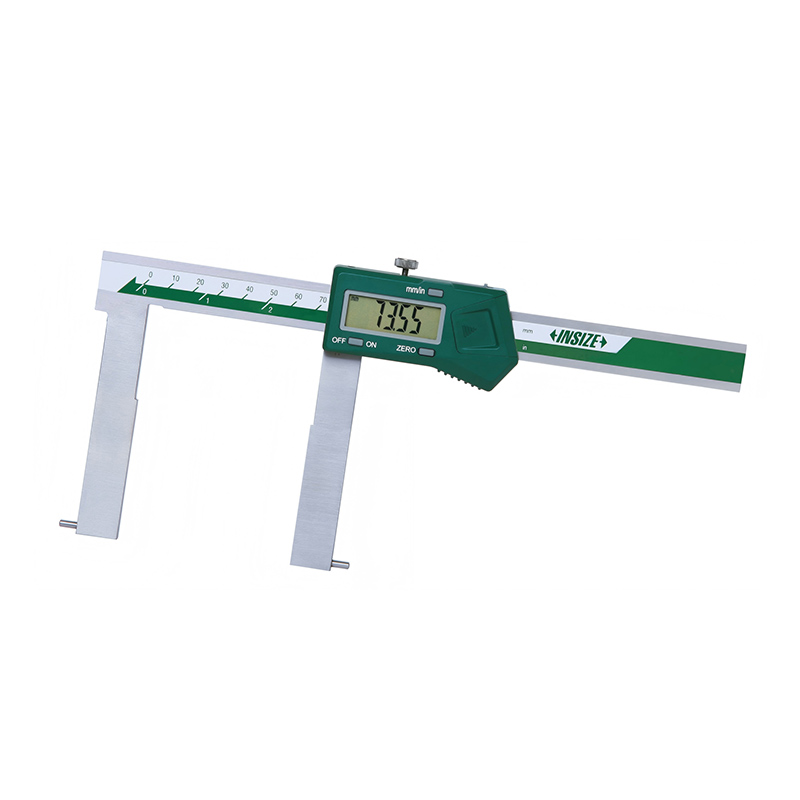

Digital Inside Point Calipers
Code: 1121
Non waterproof
Measure groove diameter
Buttons type A: on/off, set, mm/inch, preset (+, -), type B: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Data output
Made of stainless steel
Optional accessory: depth stop (code 6143, for calipers with c=16mm)
| Code | Type | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|---|
| 1121-150A | A | 24-150mm/0.94-6" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1121-1501 | A | 35-150mm/1.38-6" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1121-200A | A | 25-200mm/0.98-8" | ±0.04mm | 0.01mm/0.0005" | with data interface |
| 1121-2001 | A | 40-200mm/1.57-8" | ±0.05mm | 0.01mm/0.0005" | with data interface |
| 1121-300A | A | 30-300mm/1.18-12" | ±0.07mm | 0.01mm/0.0005" | with data interface |
| 1121-3001A | A | 50-300mm/1.97-12" | ±0.07mm | 0.01mm/0.0005" | with data interface |
| 1121-500A | A | 40-500mm/1.57-20" | ±0.07mm | 0.01mm/0.0005" | with data interface |
| 1121-5001 | A | 60-500mm/2.36-20" | ±0.08mm | 0.01mm/0.0005" | with data interface |
| 1121-5002 | A | 80-500mm/3.15-20" | ±0.08mm | 0.01mm/0.0005" | with data interface |
| 1121-150AWL | A | 24-150mm/0.94-6" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
| 1121-1501WL | A | 35-150mm/1.38-6" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1121-200AWL | A | 25-200mm/0.98-8" | ±0.04mm | 0.01mm/0.0005" | built-in wireless |
| 1121-2001WL | A | 40-200mm/1.57-8" | ±0.05mm | 0.01mm/0.0005" | built-in wireless |
| 1121-300AWL | A | 30-300mm/1.18-12" | ±0.07mm | 0.01mm/0.0005" | built-in wireless |
| 1121-3001AWL | A | 50-300mm/1.97-12" | ±0.07mm | 0.01mm/0.0005" | built-in wireless |
| 1121-500AWL | A | 40-500mm/1.57-20" | ±0.07mm | 0.01mm/0.0005" | built-in wireless |
| 1121-5001WL | A | 60-500mm/2.36-20" | ±0.08mm | 0.01mm/0.0005" | built-in wireless |
| 1121-5002WL | A | 80-500mm/3.15-20" | ±0.08mm | 0.01mm/0.0005" | built-in wireless |
| 1121-150B | B | 50-150mm/1.97-6" | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1121-200B | B | 60-200mm/2.36-8" | ±0.06mm | 0.01mm/0.0005" | with data interface |
| 1121-300B | B | 60-300mm/2.36-12" | ±0.07mm | 0.01mm/0.0005" | with data interface |
