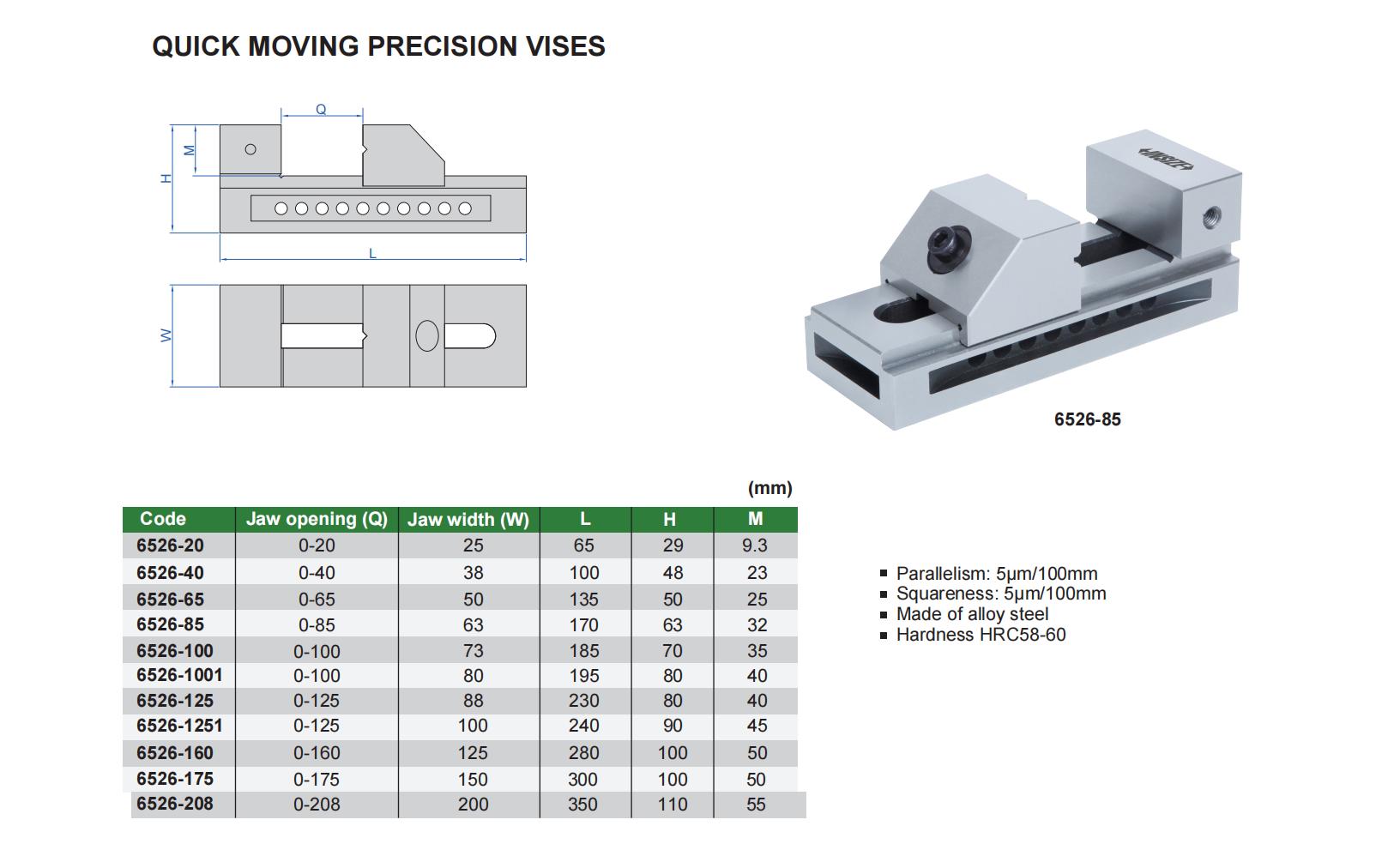

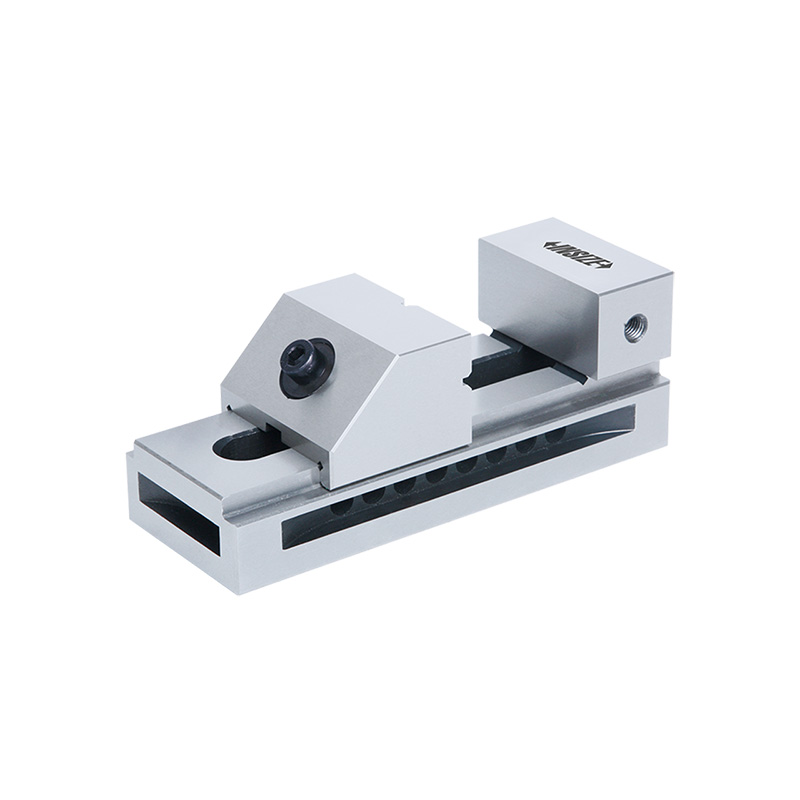

Quick Moving Precision Vises
Code: 6526
Made of alloy steel
Hardness HRC58-60
| Code | Jaw opening (Q) | Jaw width (W) | Parallelism | Squareness |
|---|---|---|---|---|
| 6526-20 | 0-20mm | 25mm | 5μm/100mm | 5μm/100mm |
| 6526-40 | 0-40mm | 38mm | 5μm/100mm | 5μm/100mm |
| 6526-65 | 0-65mm | 50mm | 5μm/100mm | 5μm/100mm |
| 6526-85 | 0-85mm | 63mm | 5μm/100mm | 5μm/100mm |
| 6526-100 | 0-100mm | 73mm | 5μm/100mm | 5μm/100mm |
| 6526-1001 | 0-100mm | 80mm | 5μm/100mm | 5μm/100mm |
| 6526-125 | 0-125mm | 88mm | 5μm/100mm | 5μm/100mm |
| 6526-1251 | 0-125mm | 100mm | 5μm/100mm | 5μm/100mm |
| 6526-160 | 0-160mm | 125mm | 5μm/100mm | 5μm/100mm |
| 6526-175 | 0-175mm | 150mm | 5μm/100mm | 5μm/100mm |
| 6526-208 | 0-208mm | 200mm | 5μm/100mm | 5μm/100mm |
