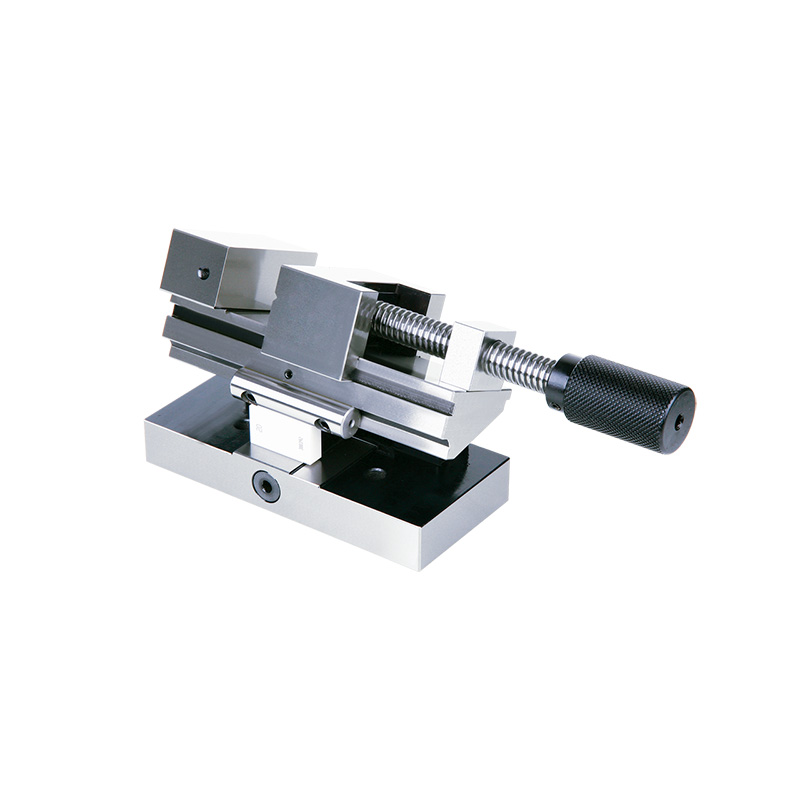

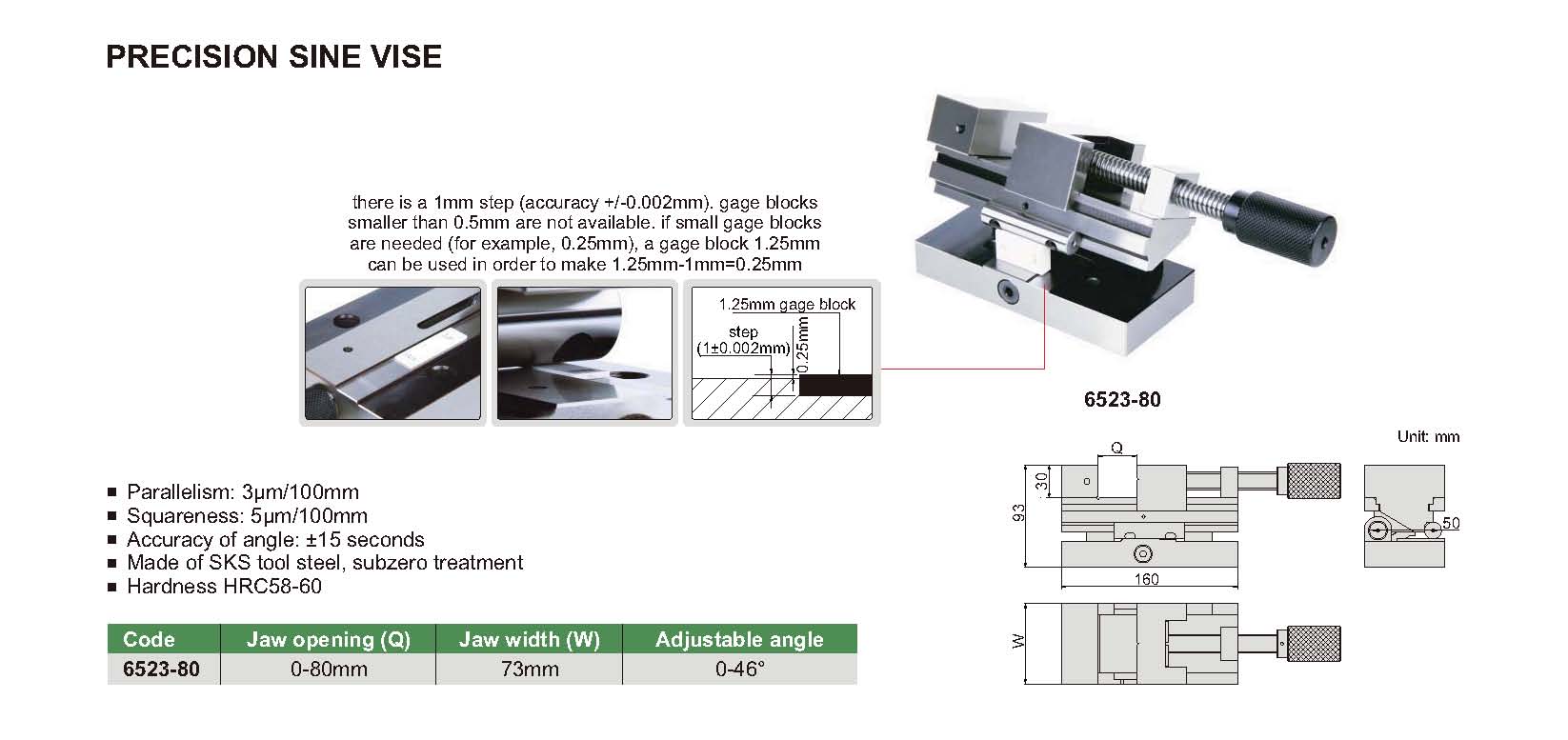

Precision Sine Vise
Code: 6523-80
Accuracy of angle: ±15 seconds
Made of SKS tool steel, subzero treatment
Hardness HRC58-60
| Code | Jaw opening (Q) | Jaw width (W) | Parallelism | Squareness | Adjustable angle |
|---|---|---|---|---|---|
| 6523-80 | 0-80mm | 73mm | 3μm/100mm | 5μm/100mm | 0-46° |
