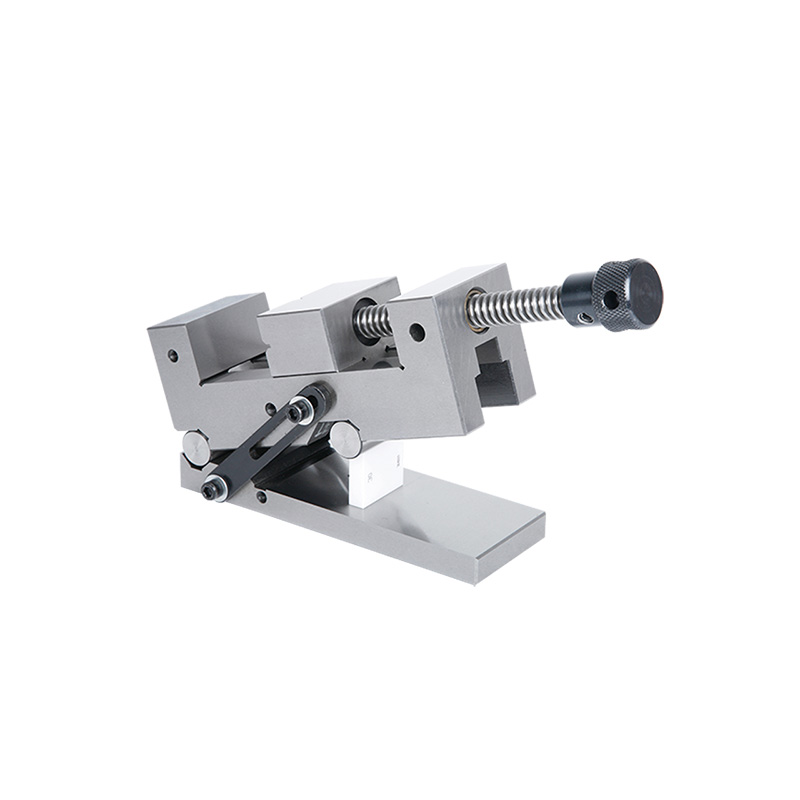

Precision Sine Vises
Code: 6513
Accuracy of angle: ±20 seconds
Made of alloy steel
Hardness HRC58-60

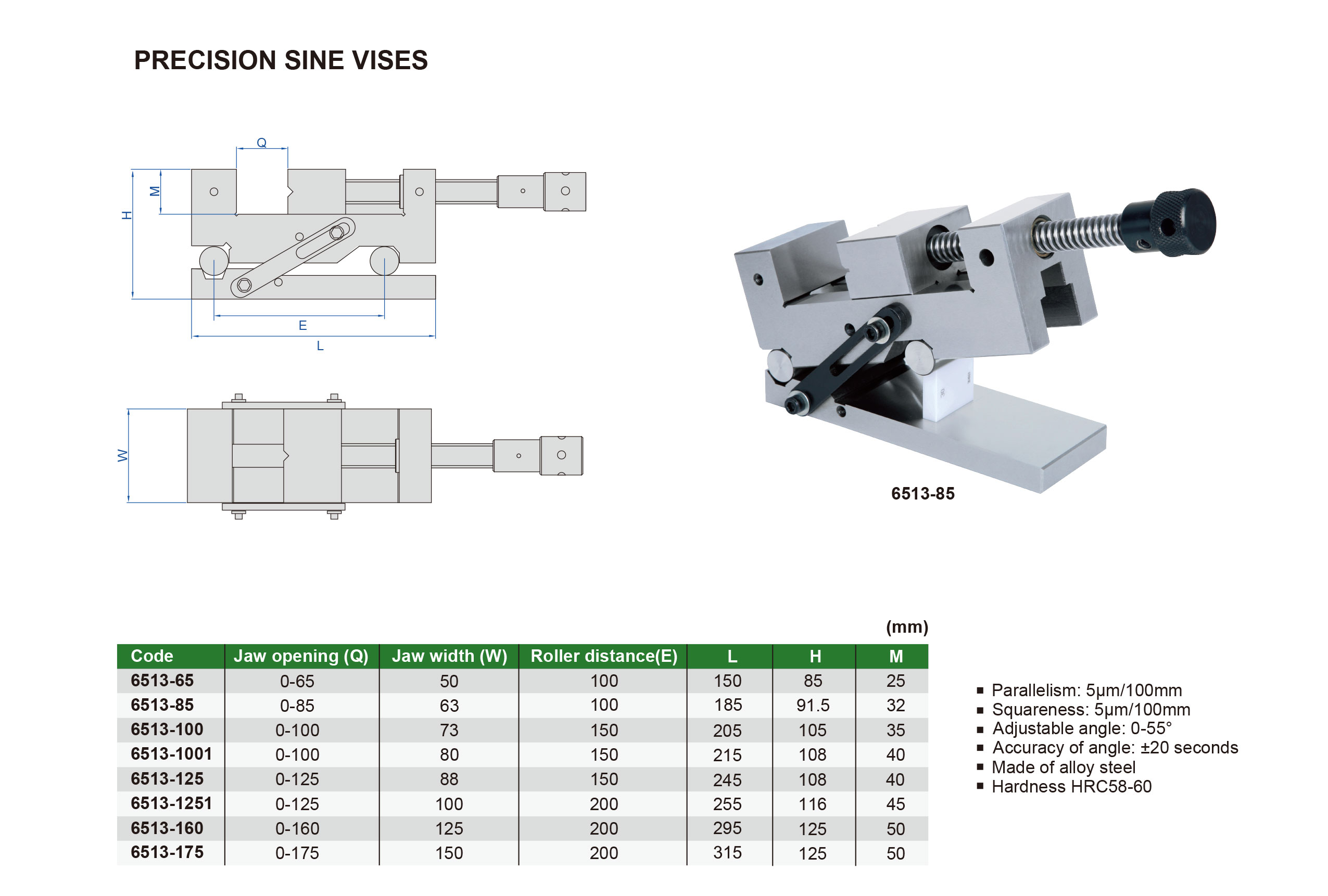

| Code | Jaw opening (Q) | Jaw width (W) | Parallelism | Squareness | Adjustable angle |
|---|---|---|---|---|---|
| 6513-65 | 0-65mm | 50mm | 5μm/100mm | 5μm/100mm | 0-55° |
| 6513-85 | 0-85mm | 63mm | 5μm/100mm | 5μm/100mm | 0-55° |
| 6513-100 | 0-100mm | 73mm | 5μm/100mm | 5μm/100mm | 0-55° |
| 6513-1001 | 0-100mm | 80mm | 5μm/100mm | 5μm/100mm | 0-55° |
| 6513-125 | 0-125mm | 88mm | 5μm/100mm | 5μm/100mm | 0-55° |
| 6513-1251 | 0-125mm | 100mm | 5μm/100mm | 5μm/100mm | 0-55° |
| 6513-160 | 0-160mm | 125mm | 5μm/100mm | 5μm/100mm | 0-55° |
| 6513-175 | 0-175mm | 150mm | 5μm/100mm | 5μm/100mm | 0-55° |
