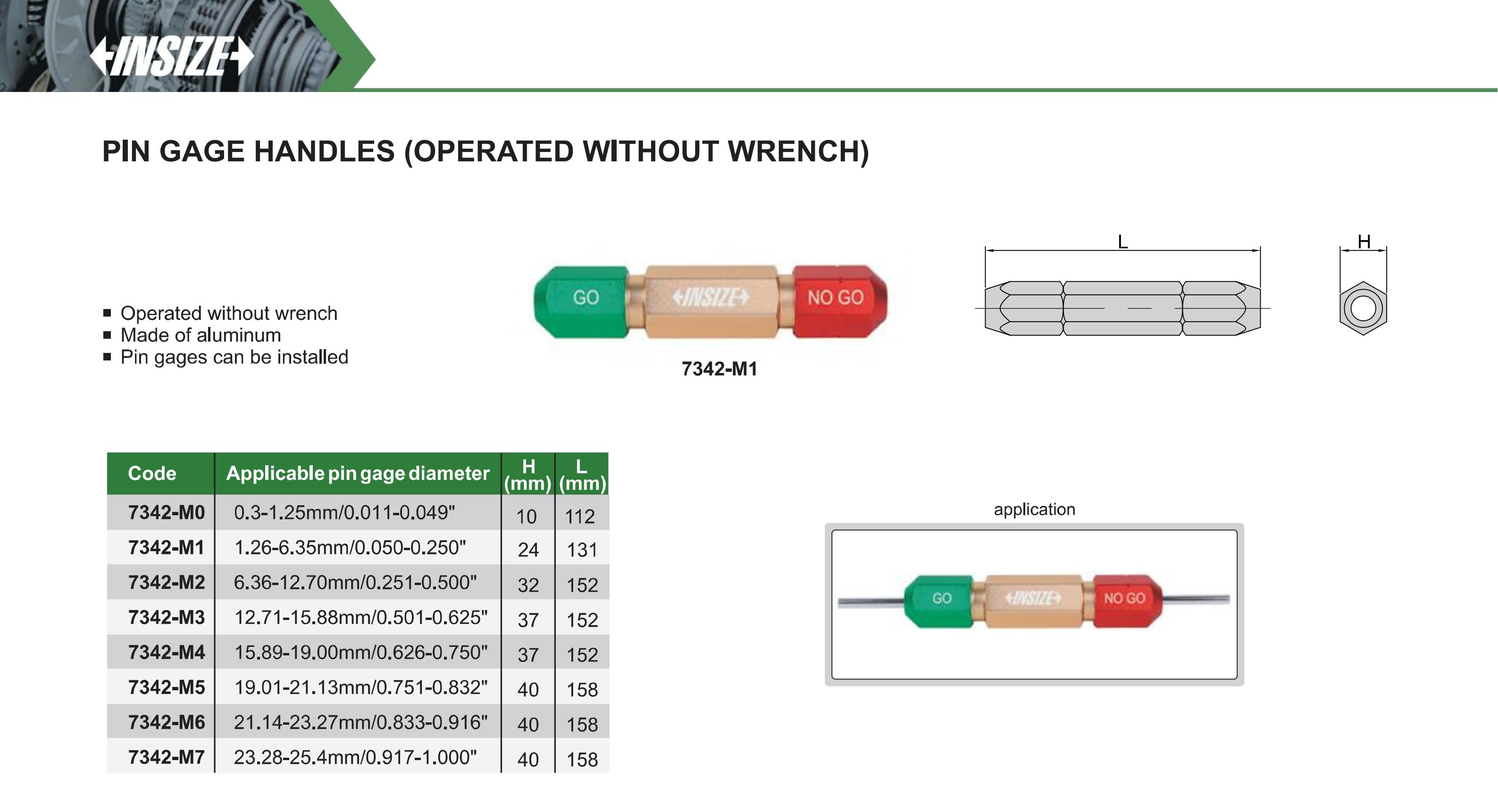

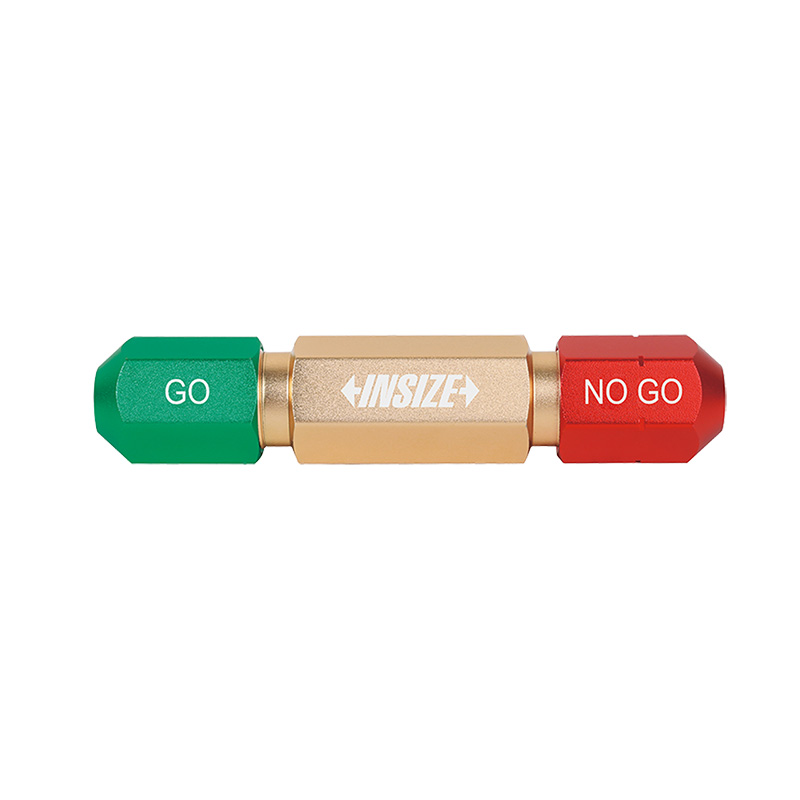

Pin Gauge Handles (Operated Without Wrench)
Code: 7342
Operated without wrench
Made of aluminum
Pin gauges can be installed
| Code | Material | Applicable pin gauge diameter |
|---|---|---|
| 7342-M0 | aluminum | 0.30-1.25mm |
| 7342-M1 | aluminum | 1.26-6.35mm |
| 7342-M2 | aluminum | 6.36-12.70mm |
| 7342-M3 | aluminum | 12.71-15.88mm |
| 7342-M4 | aluminum | 15.89-19.00mm |
| 7342-M5 | aluminum | 19.01-21.13mm |
| 7342-M6 | aluminum | 21.14-23.27mm |
| 7342-M7 | aluminum | 23.28-25.40mm |
