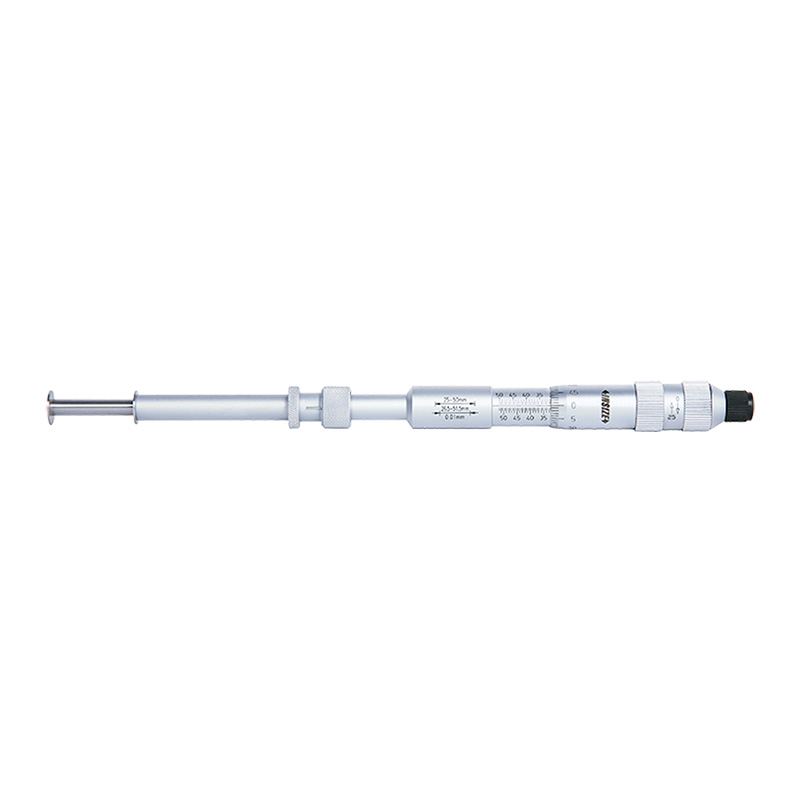

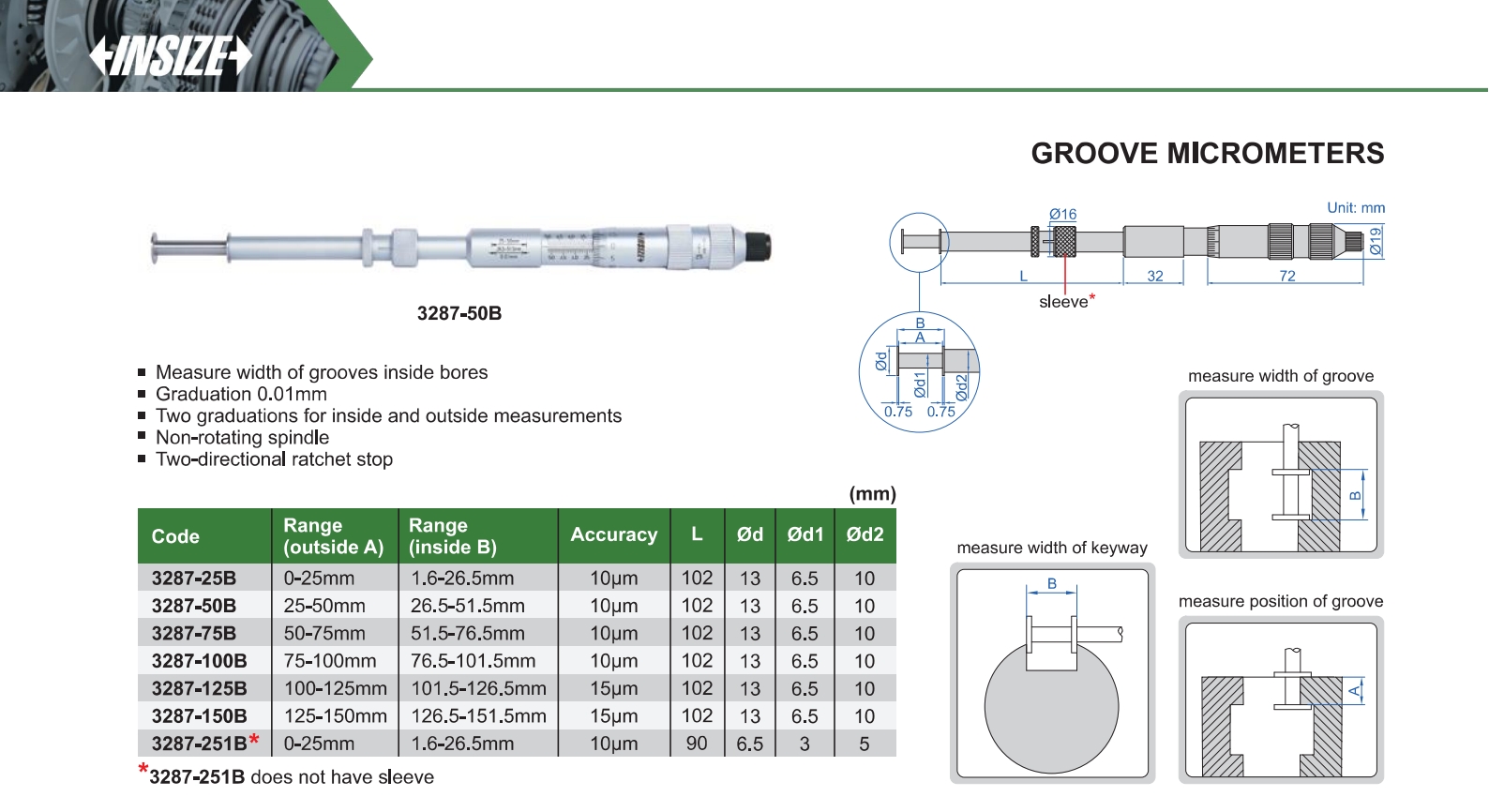

Groove Micrometers
Code: 3287
Measure width of grooves inside bores
Two graduations for inside and outside measurements
Non-rotating spindle
Two-directional ratchet stop
| Code | Graduation | Range (outside A) | Range (inside B) | Remark |
|---|---|---|---|---|
| 3287-25B | 0.01mm | 0-25mm | 1.6-26.5mm | have sleeve |
| 3287-50B | 0.01mm | 25-50mm | 26.5-51.5mm | have sleeve |
| 3287-75B | 0.01mm | 50-75mm | 51.5-76.5mm | have sleeve |
| 3287-100B | 0.01mm | 75-100mm | 76.5-101.5mm | have sleeve |
| 3287-125B | 0.01mm | 100-125mm | 101.5-126.5mm | have sleeve |
| 3287-150B | 0.01mm | 125-150mm | 126.5-151.5mm | have sleeve |
| 3287-251B | 0.01mm | 0-25mm | 1.6-26.5mm | does not have sleeve |
