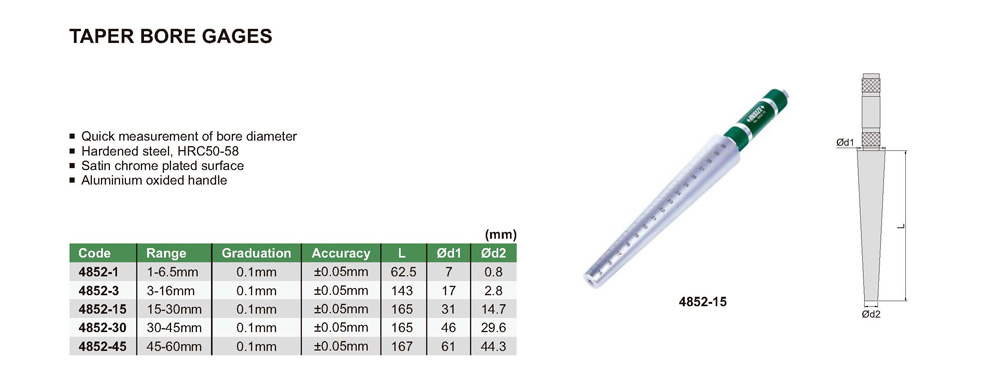

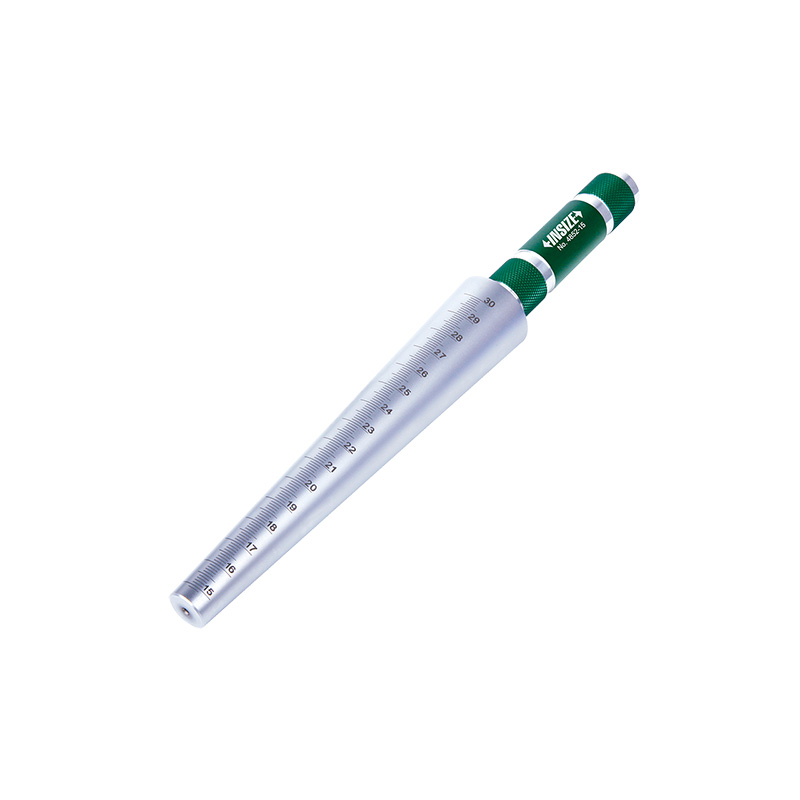

Taper Bore Gauges
Code: 4852
Quick measurement of bore diameter
Hardened steel, HRC50-58
Satin chrome plated surface
Aluminium oxided handle
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 4852-1 | 1-6.5mm | ±0.05mm | 0.1mm |
| 4852-3 | 3-16mm | ±0.05mm | 0.1mm |
| 4852-15 | 15-30mm | ±0.05mm | 0.1mm |
| 4852-30 | 30-45mm | ±0.05mm | 0.1mm |
| 4852-45 | 45-60mm | ±0.05mm | 0.1mm |
