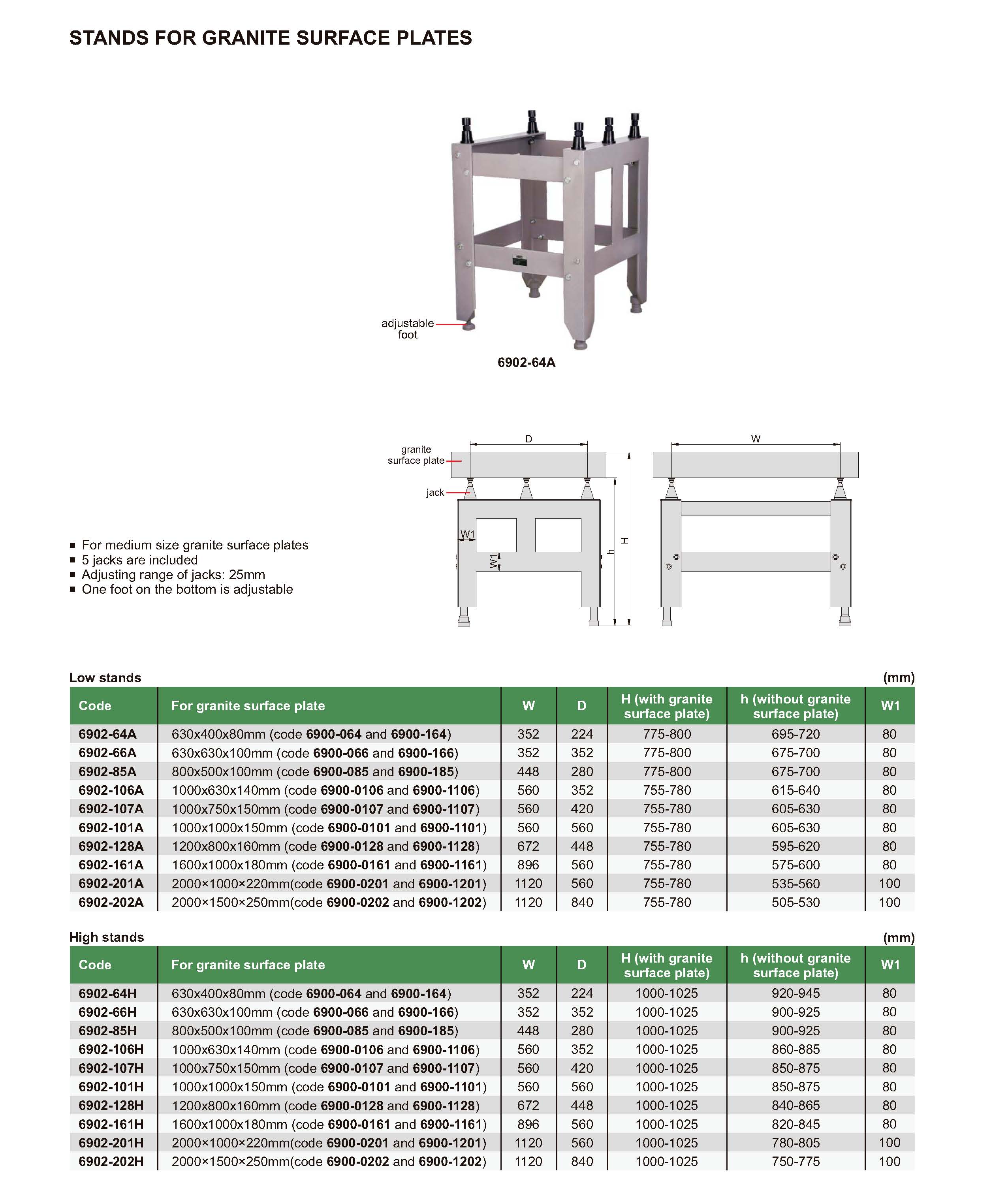

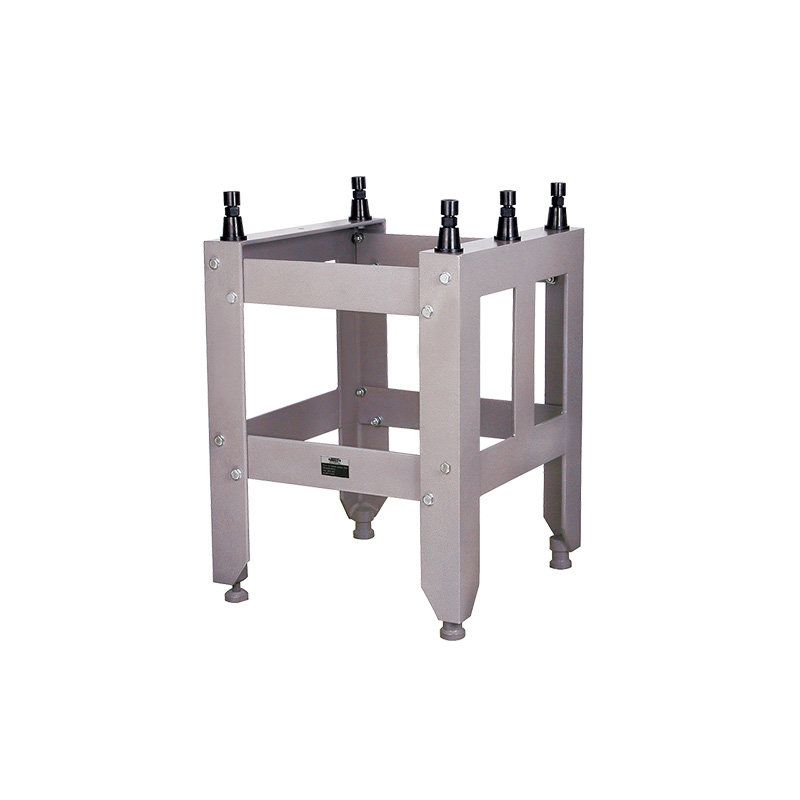

Stands For Granite Surface Plates
Code: 6902
For medium size granite surface plates
5 jacks are included
Adjusting range of jacks: 25mm
One foot on the bottom is adjustable
| Code | Type | For granite surface plate |
|---|---|---|
| 6902-64A | Low stands | 630×400×80mm (code 6900-064 and 6900-164) |
| 6902-66A | Low stands | 630×630×100mm (code 6900-066 and 6900-166) |
| 6902-85A | Low stands | 800×500×100mm (code 6900-085 and 6900-185) |
| 6902-106A | Low stands | 1000×630×140mm (code 6900-0106 and 6900-1106) |
| 6902-107A | Low stands | 1000×750×150mm (code 6900-0107 and 6900-1107) |
| 6902-101A | Low stands | 1000×1000×150mm (code 6900-0101 and 6900-1101) |
| 6902-128A | Low stands | 1200×800×160mm (code 6900-0128 and 6900-1128) |
| 6902-161A | Low stands | 1600×1000×180mm (code 6900-0161 and 6900-1161) |
| 6902-201A | Low stands | 2000×1000×220mm (code 6900-0201 and 6900-1201) |
| 6902-202A | Low stands | 2000×1500×250mm (code 6900-0202 and 6900-1202) |
| 6902-64H | High stands | 630×400×80mm (code 6900-064 and 6900-164) |
| 6902-66H | High stands | 630×630×100mm (code 6900-066 and 6900-166) |
| 6902-85H | High stands | 800×500×100mm (code 6900-085 and 6900-185) |
| 6902-106H | High stands | 1000×630×140mm (code 6900-0106 and 6900-1106) |
| 6902-107H | High stands | 1000×750×150mm (code 6900-0107 and 6900-1107) |
| 6902-101H | High stands | 1000×1000×150mm (code 6900-0101 and 6900-1101) |
| 6902-128H | High stands | 1200×800×160mm (code 6900-0128 and 6900-1128) |
| 6902-161H | High stands | 1600×1000×180mm (code 6900-0161 and 6900-1161) |
| 6902-201H | High stands | 2000×1000×220mm (code 6900-0201 and 6900-1201) |
| 6902-202H | High stands | 2000×1500×250mm (code 6900-0202 and 6900-1202) |
