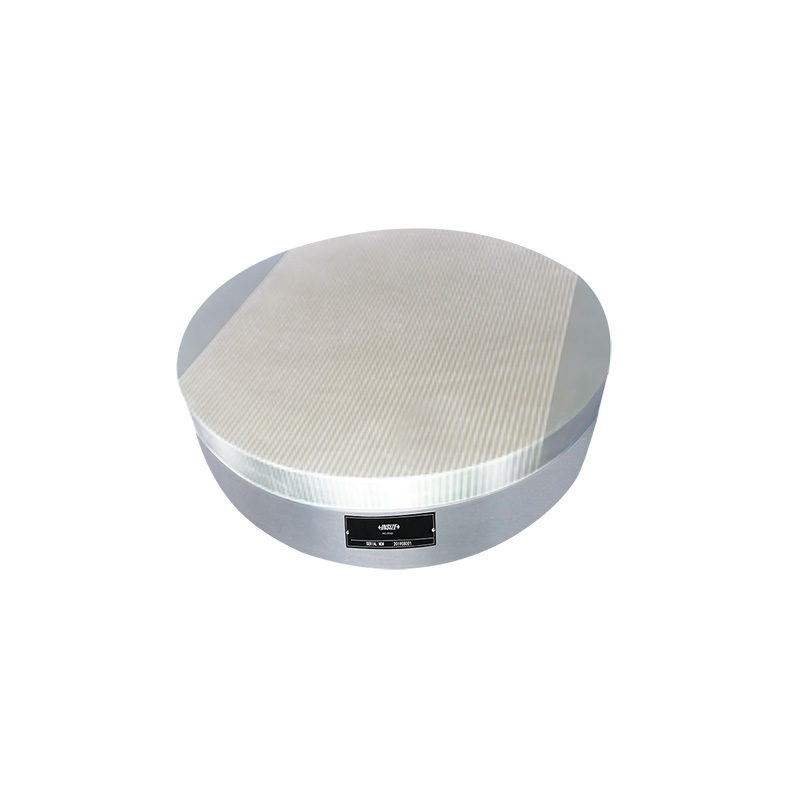

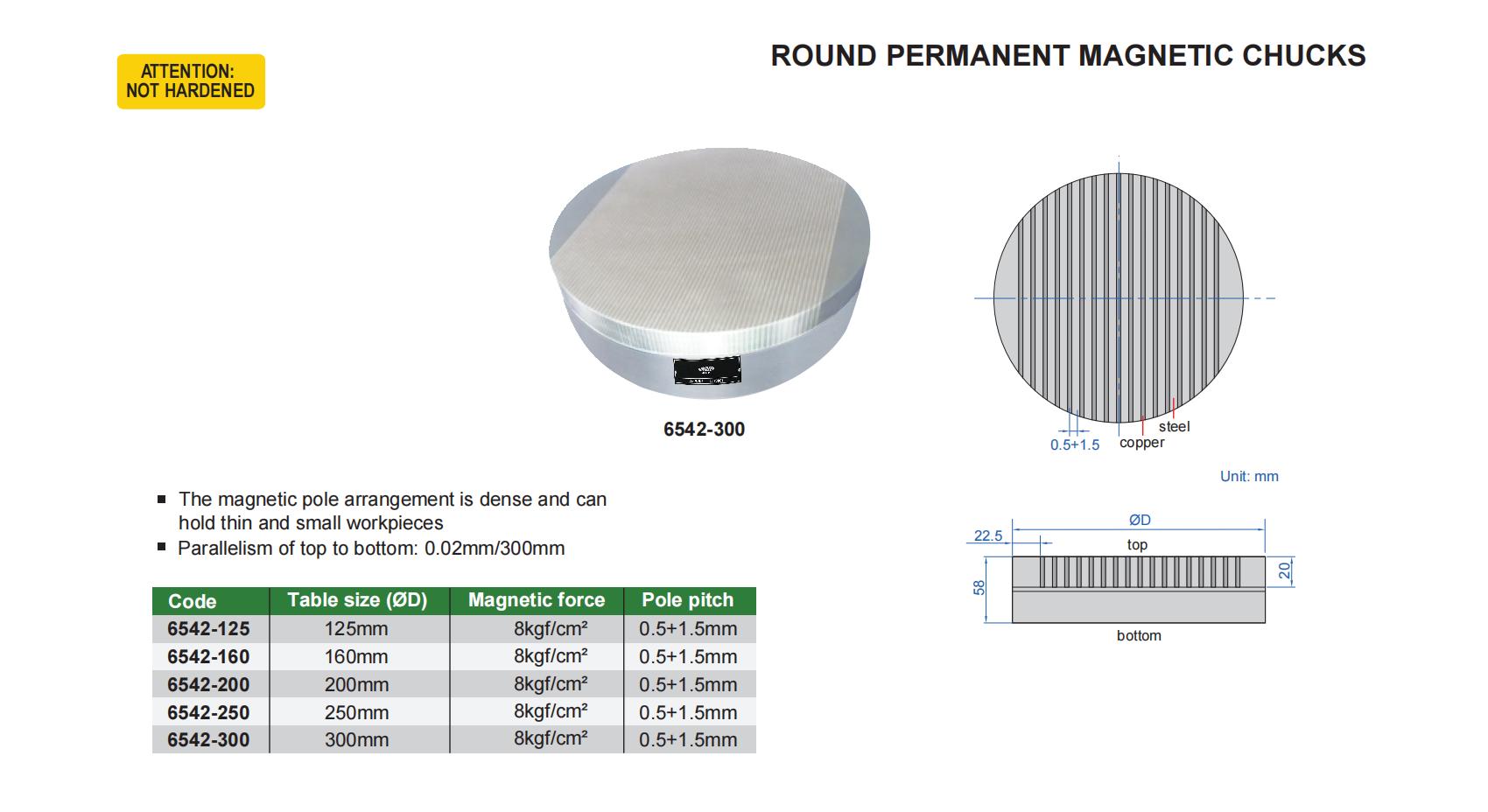

Round Permanent Magnetic Chucks
Code: 6542
The magnetic pole arrangement is dense and can hold thin and small workpieces
Parallelism of top to bottom: 0.02mm/300mm
| Code | Magnetic force | Pole pitch | Table size |
|---|---|---|---|
| 6542-125 | 8kgf/cm2 | 0.5+1.5mm | 125mm |
| 6542-160 | 8kgf/cm2 | 0.5+1.5mm | 160mm |
| 6542-200 | 8kgf/cm2 | 0.5+1.5mm | 200mm |
| 6542-250 | 8kgf/cm2 | 0.5+1.5mm | 250mm |
| 6542-300 | 8kgf/cm2 | 0.5+1.5mm | 300mm |
