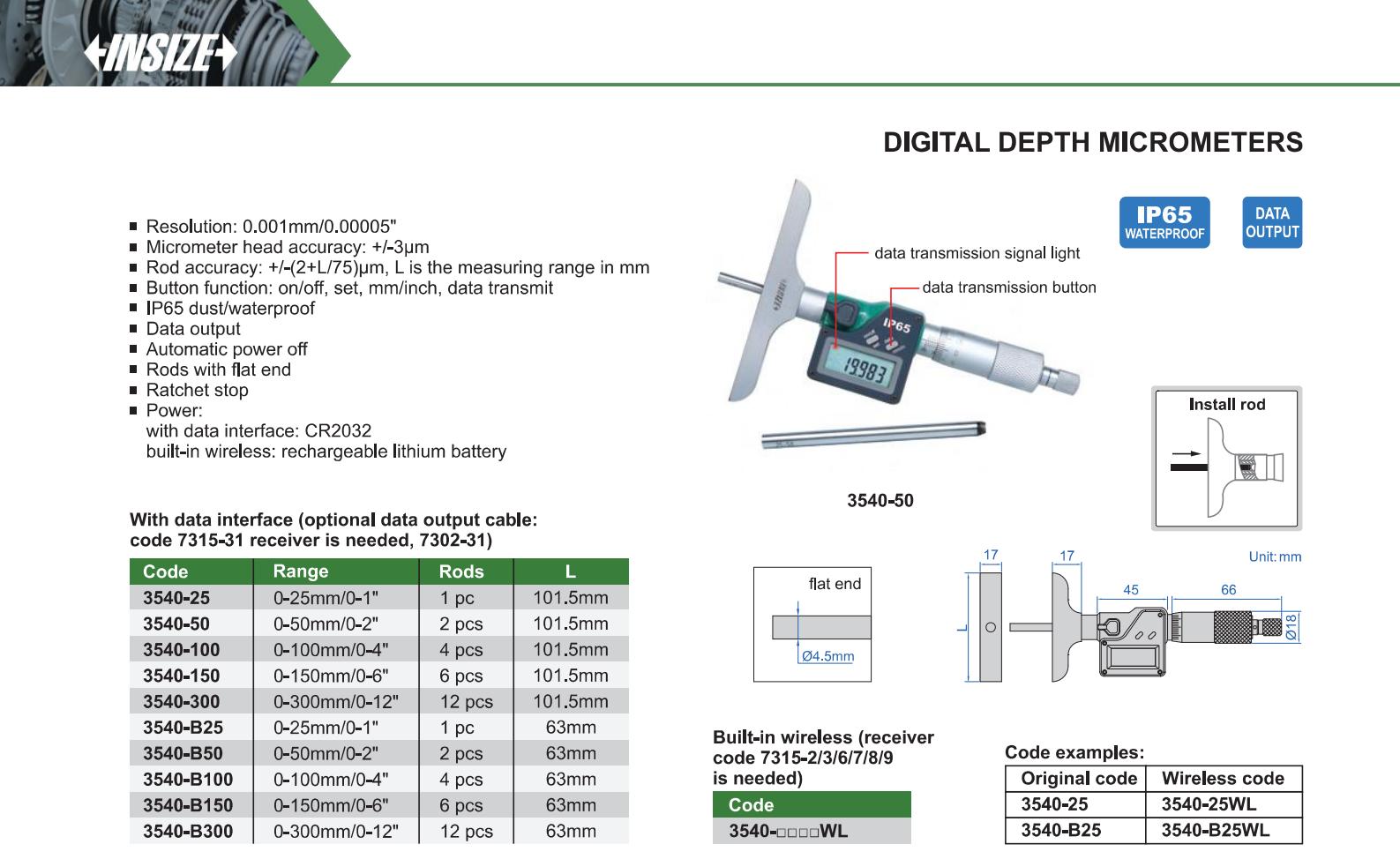

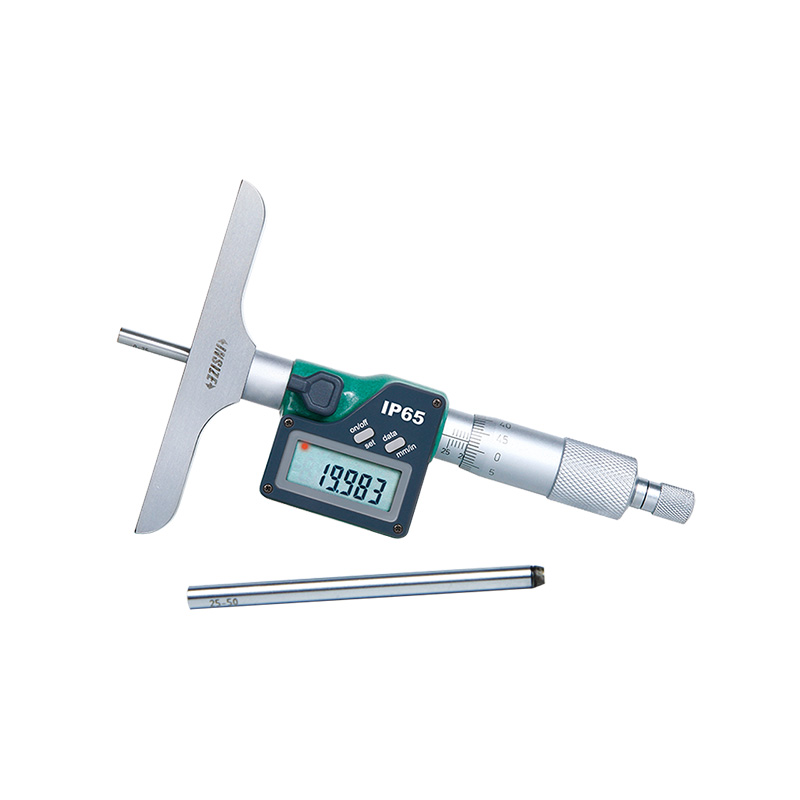

Digital Depth Micrometers
Code: 3540
Micrometer head accuracy: +/-3μm
Rod accuracy: +/-(2+L/75)μm, L is the measuring range in mm
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Rods with flat end
Ratchet stop
| Code | Range | Resolution | Data output | Length of Base Plate Measuring Surface |
|---|---|---|---|---|
| 3540-25 | 0-25mm/0-1" | 0.001mm/0.00005" | with data interface | 101.5mm |
| 3540-50 | 0-50mm/0-2" | 0.001mm/0.00005" | with data interface | 101.5mm |
| 3540-100 | 0-100mm/0-4" | 0.001mm/0.00005" | with data interface | 101.5mm |
| 3540-150 | 0-150mm/0-6" | 0.001mm/0.00005" | with data interface | 101.5mm |
| 3540-300 | 0-300mm/0-12" | 0.001mm/0.00005" | with data interface | 101.5mm |
| 3540-B25 | 0-25mm/0-1" | 0.001mm/0.00005" | with data interface | 63mm |
| 3540-B50 | 0-50mm/0-2" | 0.001mm/0.00005" | with data interface | 63mm |
| 3540-B100 | 0-100mm/0-4" | 0.001mm/0.00005" | with data interface | 63mm |
| 3540-B150 | 0-150mm/0-6" | 0.001mm/0.00005" | with data interface | 63mm |
| 3540-B300 | 0-300mm/0-12" | 0.001mm/0.00005" | with data interface | 63mm |
| 3540-25WL | 0-25mm/0-1" | 0.001mm/0.00005" | built-in wireless | 101.5mm |
| 3540-50WL | 0-50mm/0-2" | 0.001mm/0.00005" | built-in wireless | 101.5mm |
| 3540-100WL | 0-100mm/0-4" | 0.001mm/0.00005" | built-in wireless | 101.5mm |
| 3540-150WL | 0-150mm/0-6" | 0.001mm/0.00005" | built-in wireless | 101.5mm |
| 3540-300WL | 0-300mm/0-12" | 0.001mm/0.00005" | built-in wireless | 101.5mm |
| 3540-B25WL | 0-25mm/0-1" | 0.001mm/0.00005" | built-in wireless | 63mm |
| 3540-B50WL | 0-50mm/0-2" | 0.001mm/0.00005" | built-in wireless | 63mm |
| 3540-B100WL | 0-100mm/0-4" | 0.001mm/0.00005" | built-in wireless | 63mm |
| 3540-B150WL | 0-150mm/0-6" | 0.001mm/0.00005" | built-in wireless | 63mm |
| 3540-B300WL | 0-300mm/0-12" | 0.001mm/0.00005" | built-in wireless | 63mm |
