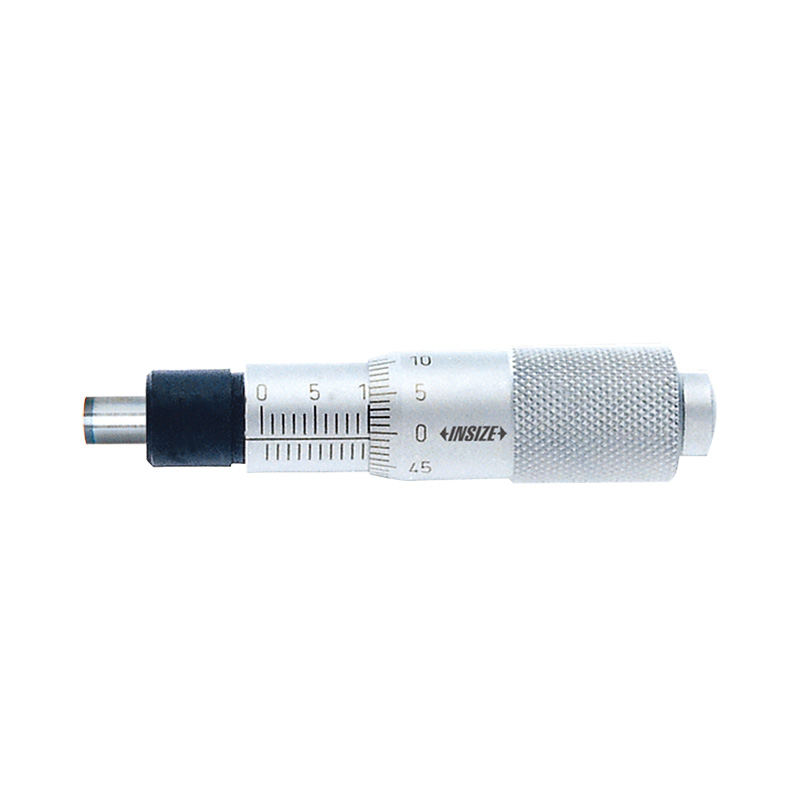

Micrometer Heads
Code: 6387
Meet DIN863-2

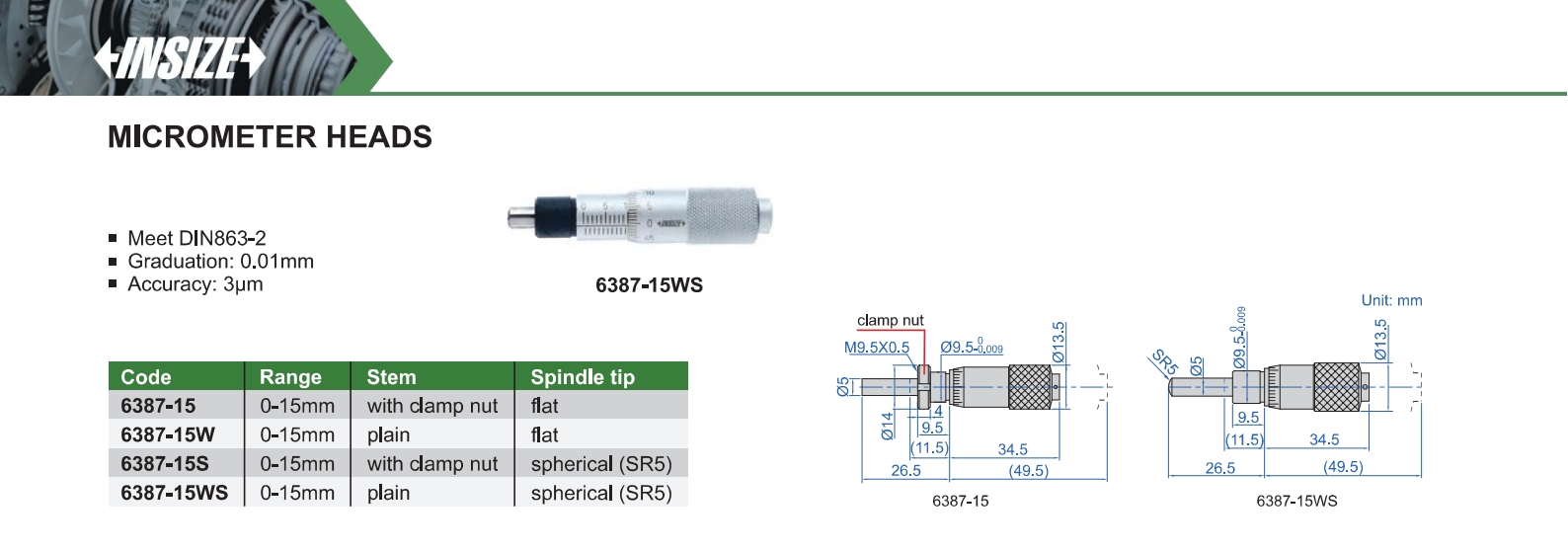

| Code | Range | Accuracy | Graduation | Stem | Spindle tip |
|---|---|---|---|---|---|
| 6387-15 | 0-15mm | 3μm | 0.01mm | with clamp nut | flat |
| 6387-15W | 0-15mm | 3μm | 0.01mm | plain | flat |
| 6387-15S | 0-15mm | 3μm | 0.01mm | with clamp nut | spherical (SR5) |
| 6387-15WS | 0-15mm | 3μm | 0.01mm | plain | spherical (SR5) |
View the complete
product specifications
