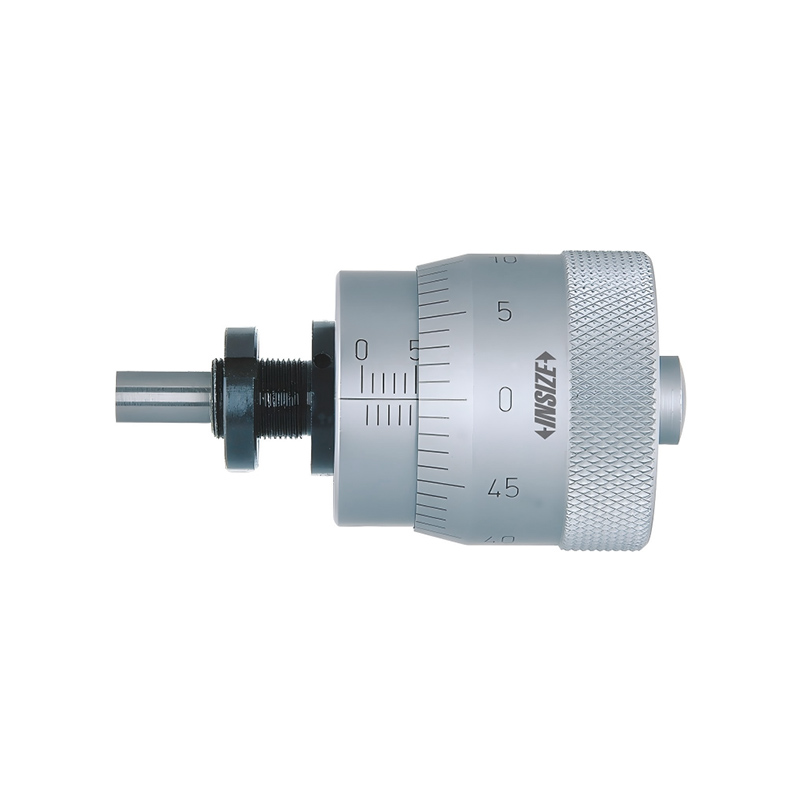

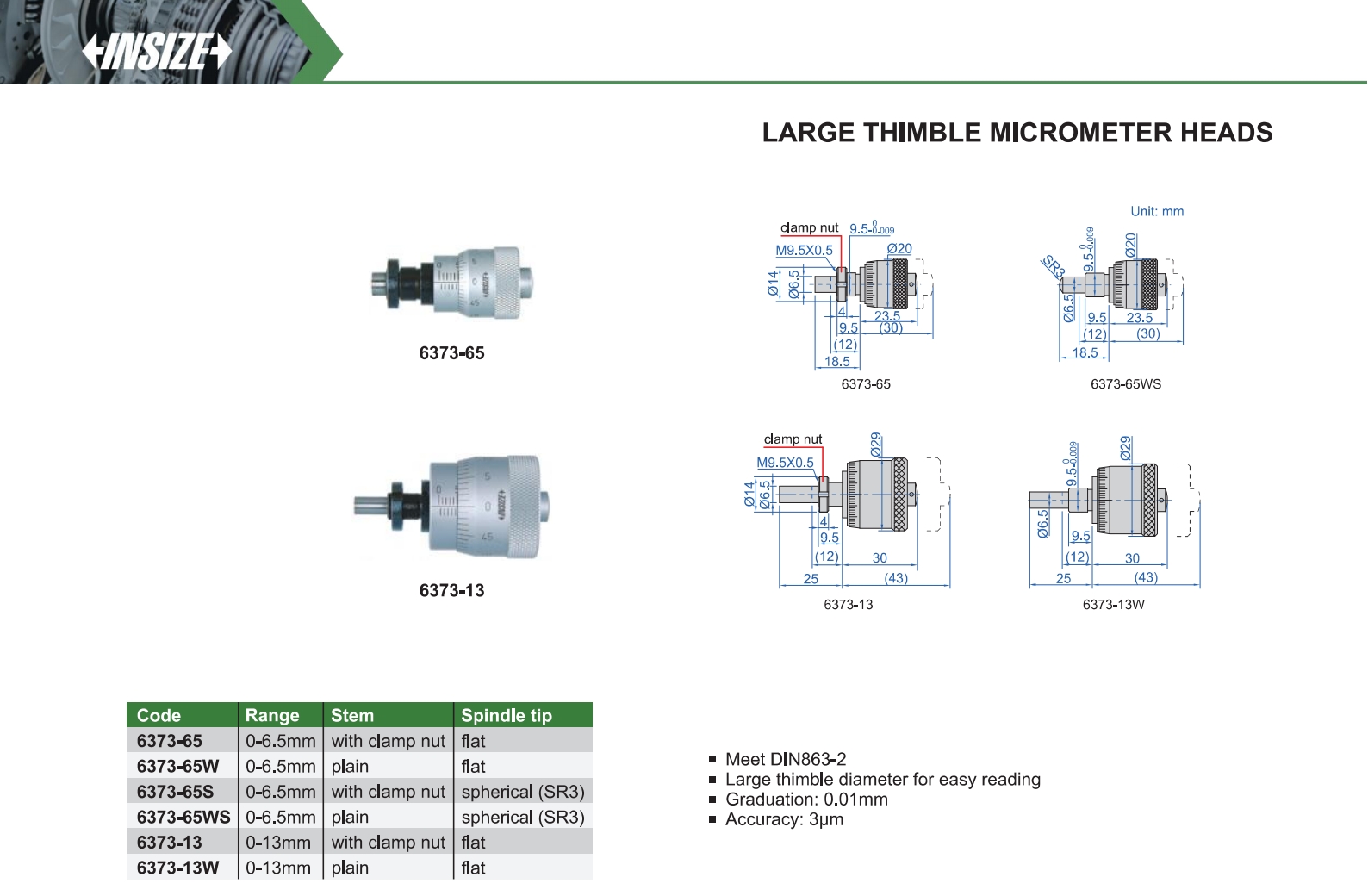

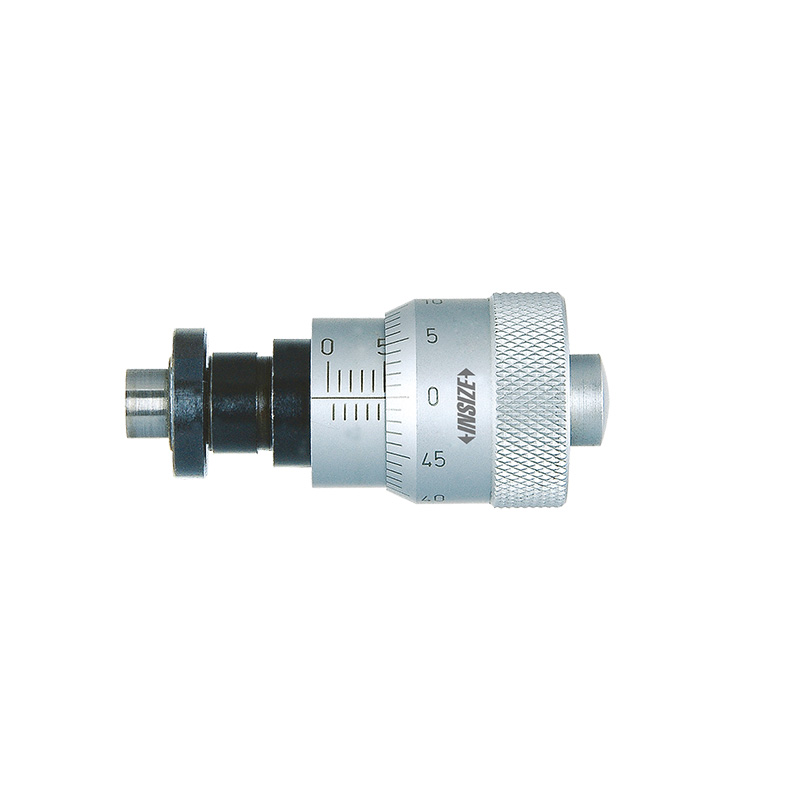

Large Thimble Micrometer Heads
Code: 6373
Meet DIN863-2
Large thimble diameter for easy reading
| Code | Range | Accuracy | Graduation | Stem | Spindle tip |
|---|---|---|---|---|---|
| 6373-65 | 0-6.5mm | 3μm | 0.01mm | with clamp nut | flat |
| 6373-65W | 0-6.5mm | 3μm | 0.01mm | plain | flat |
| 6373-65S | 0-6.5mm | 3μm | 0.01mm | with clamp nut | spherical (SR3) |
| 6373-65WS | 0-6.5mm | 3μm | 0.01mm | plain | spherical (SR3) |
| 6373-13 | 0-13mm | 3μm | 0.01mm | with clamp nut | flat |
| 6373-13W | 0-13mm | 3μm | 0.01mm | plain | flat |
View the complete
product specifications
