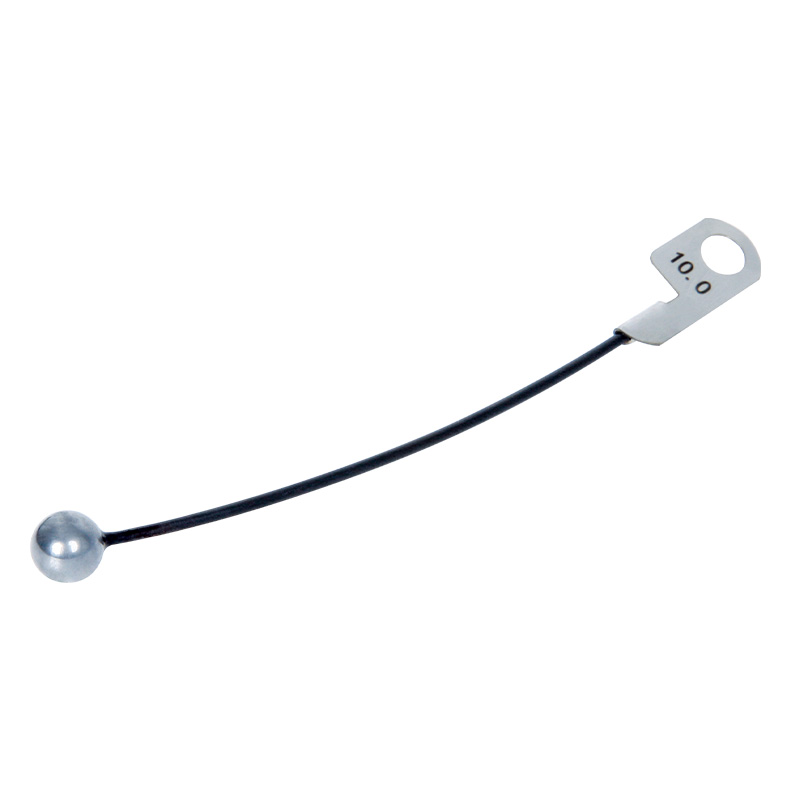

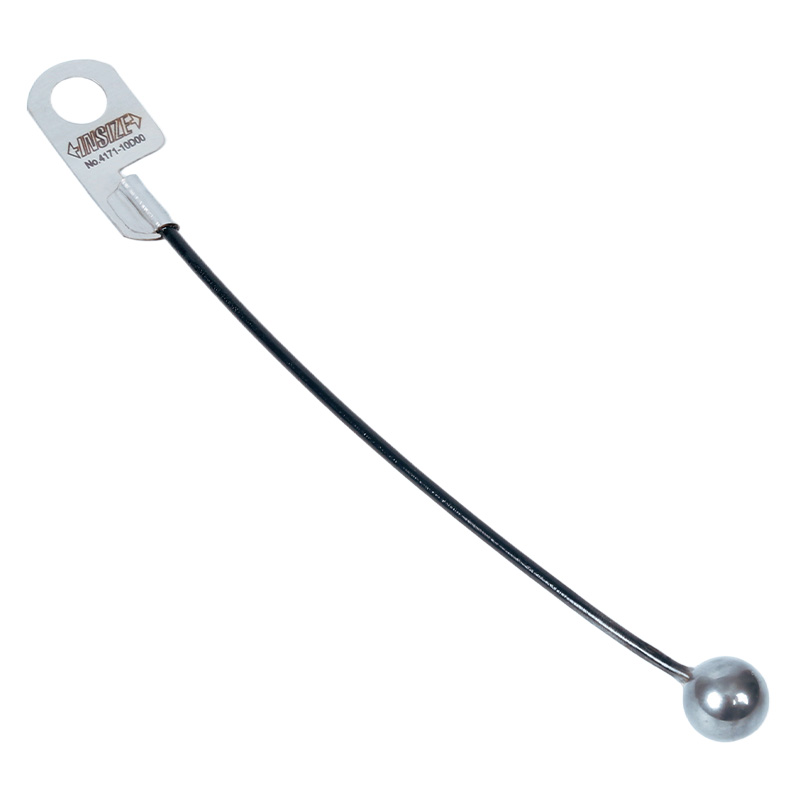

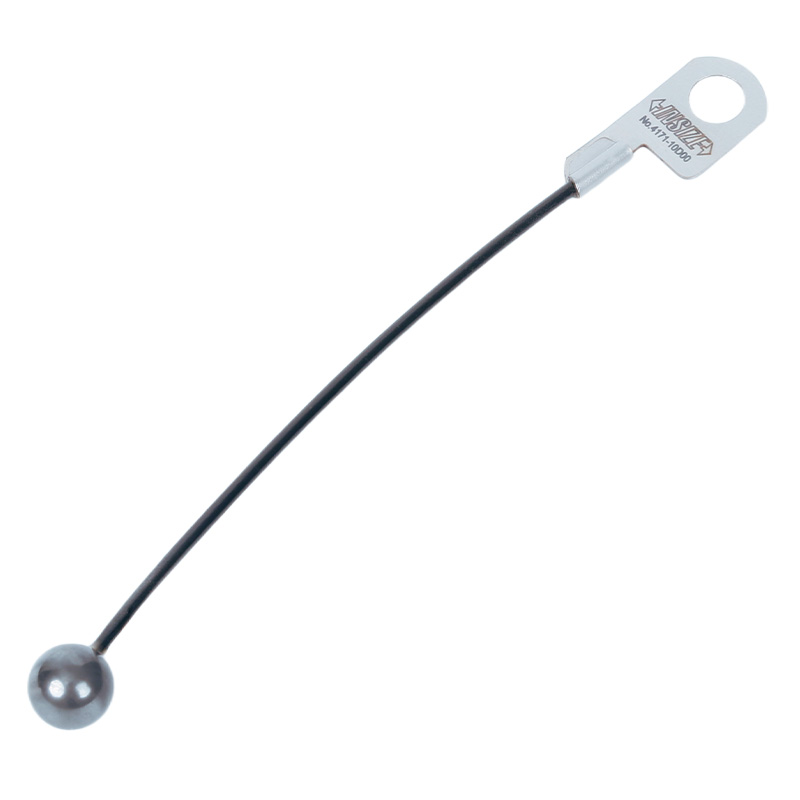

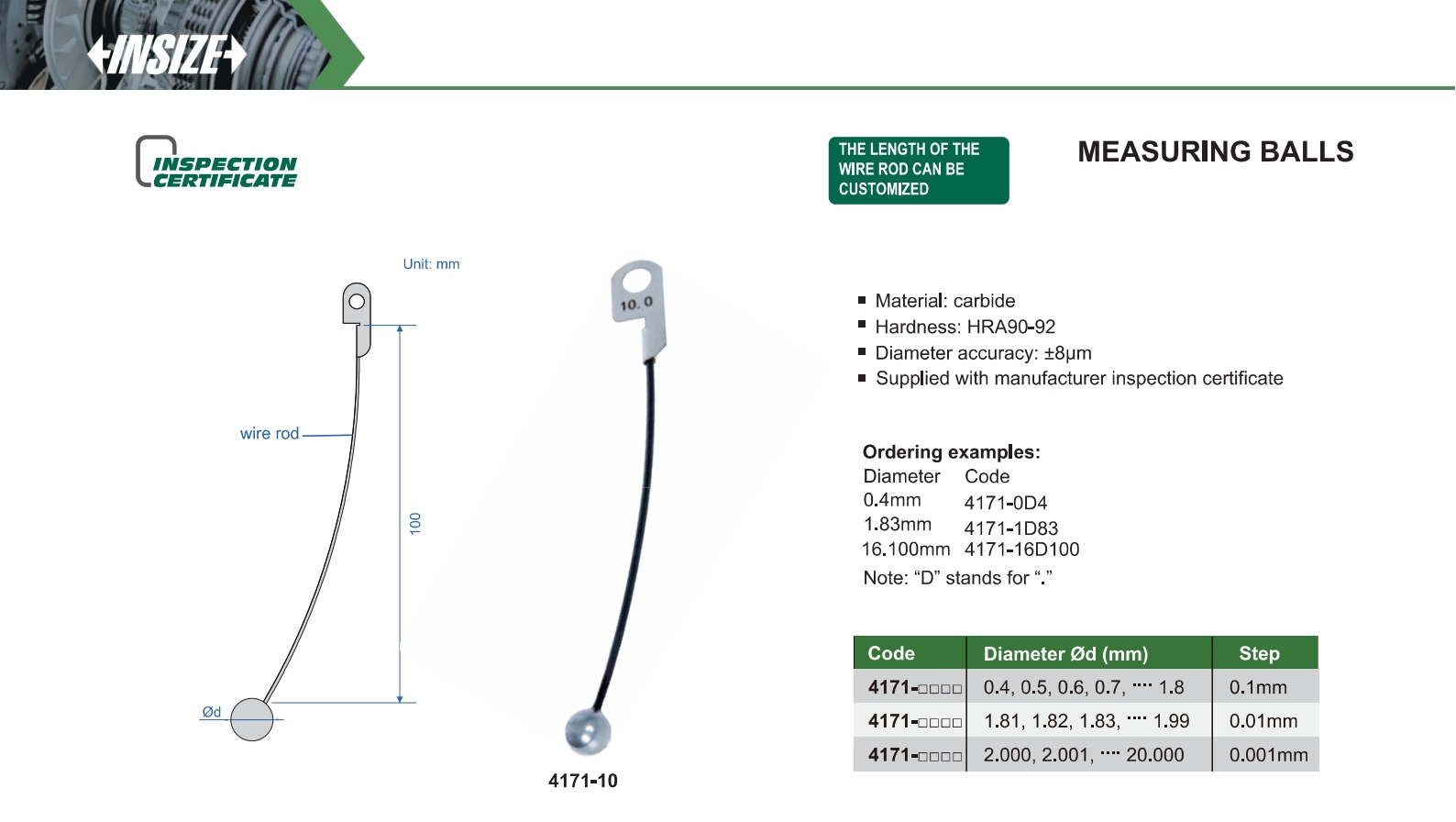

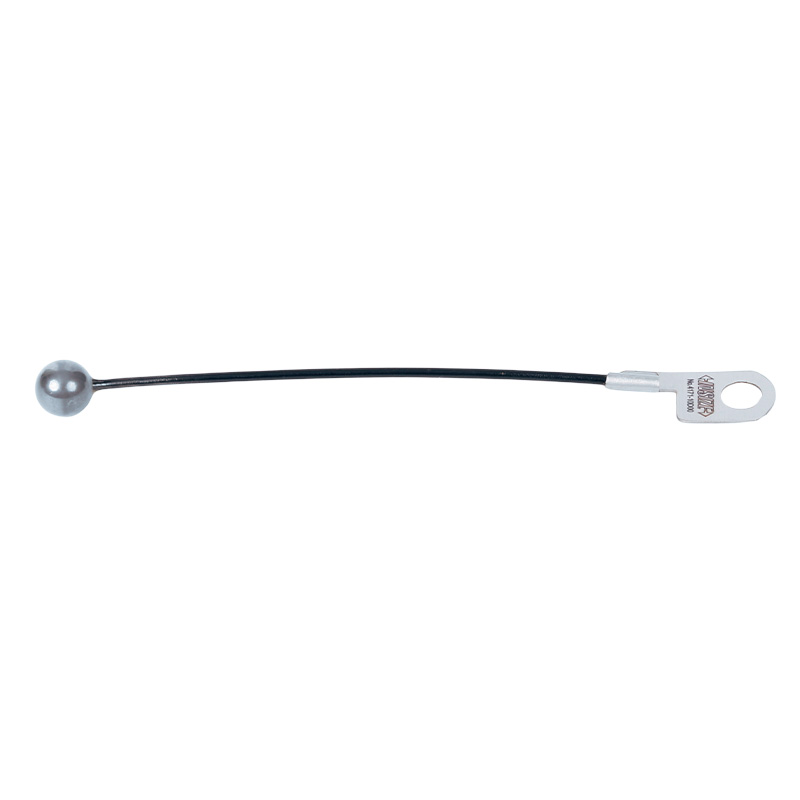

Measuring Balls
Code: 4171
Material: carbide
Hardness: HRA90-92
Diameter accuracy: ±8µm
Supplied with manufacturer inspection certificate
| Code | Diameter range | Step |
|---|---|---|
| 4171-□□□□ | 0.4, 0.5, 0.6, 0.7, ···· 1.8 | 0.1mm |
| 4171-□□□□ | 1.81, 1.82, 1.83, ···· 1.99 | 0.01mm |
| 4171-□□□□ | 2.000, 2.001, ···· 20.000 | 0.001mm |
