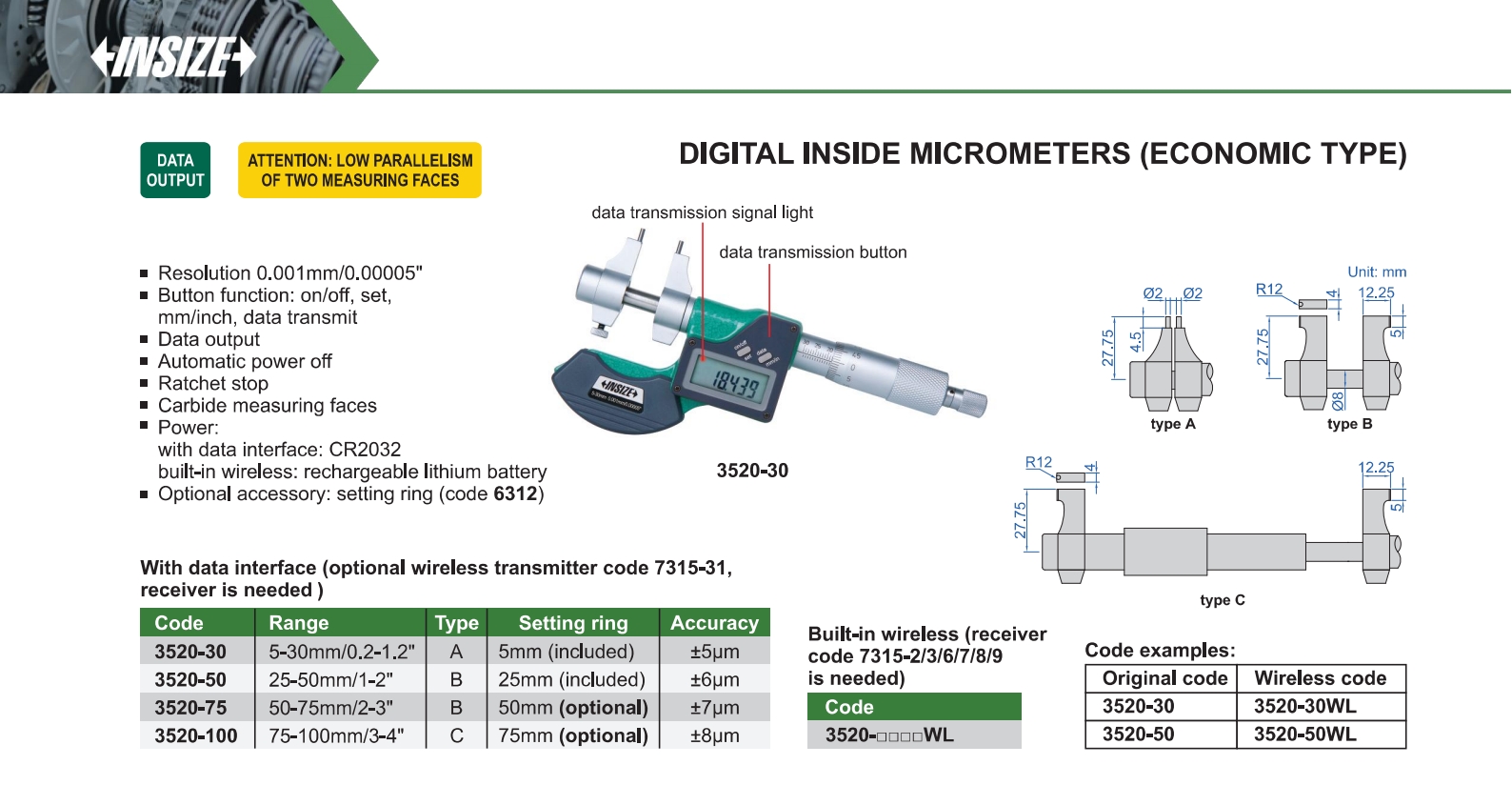

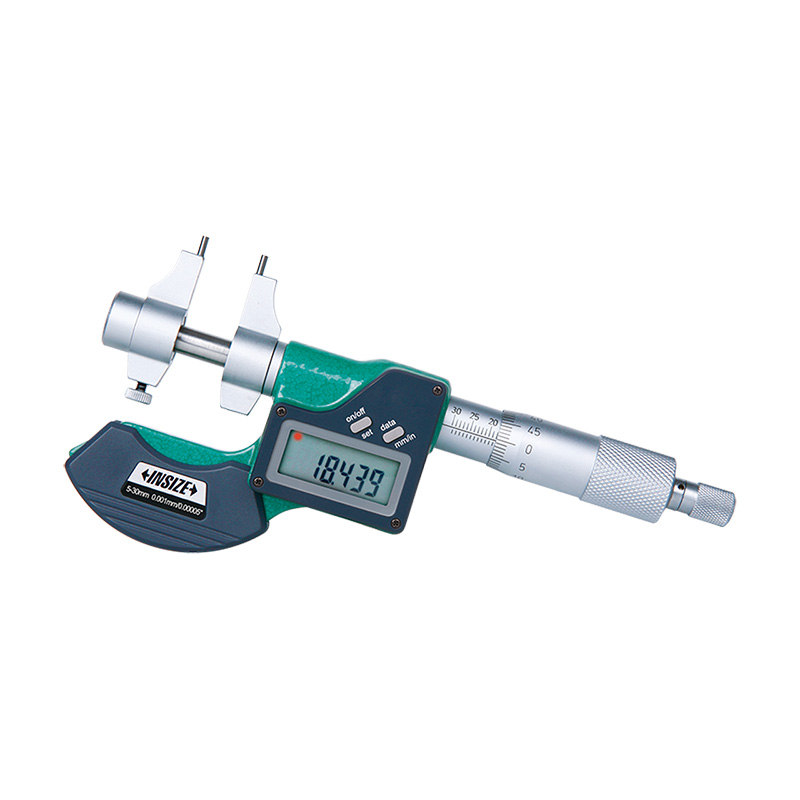

Digital Inside Micrometers (Economic Type)
Code: 3520
Button function: on/off, set, mm/inch, data transmit
Automatic power off
Ratchet stop
Carbide measuring faces
| Code | Range | Resolution | Data output |
|---|---|---|---|
| 3520-30 | 5-30mm/0.2-1.2" | 0.001mm/0.00005" | with data interface |
| 3520-50 | 25-50mm/1-2" | 0.001mm/0.00005" | with data interface |
| 3520-75 | 50-75mm/2-3" | 0.001mm/0.00005" | with data interface |
| 3520-100 | 75-100mm/3-4" | 0.001mm/0.00005" | with data interface |
| 3520-30WL | 5-30mm/0.2-1.2" | 0.001mm/0.00005" | built-in wireless |
| 3520-50WL | 25-50mm/1-2" | 0.001mm/0.00005" | built-in wireless |
| 3520-75WL | 50-75mm/2-3" | 0.001mm/0.00005" | built-in wireless |
| 3520-100WL | 75-100mm/3-4" | 0.001mm/0.00005" | built-in wireless |
