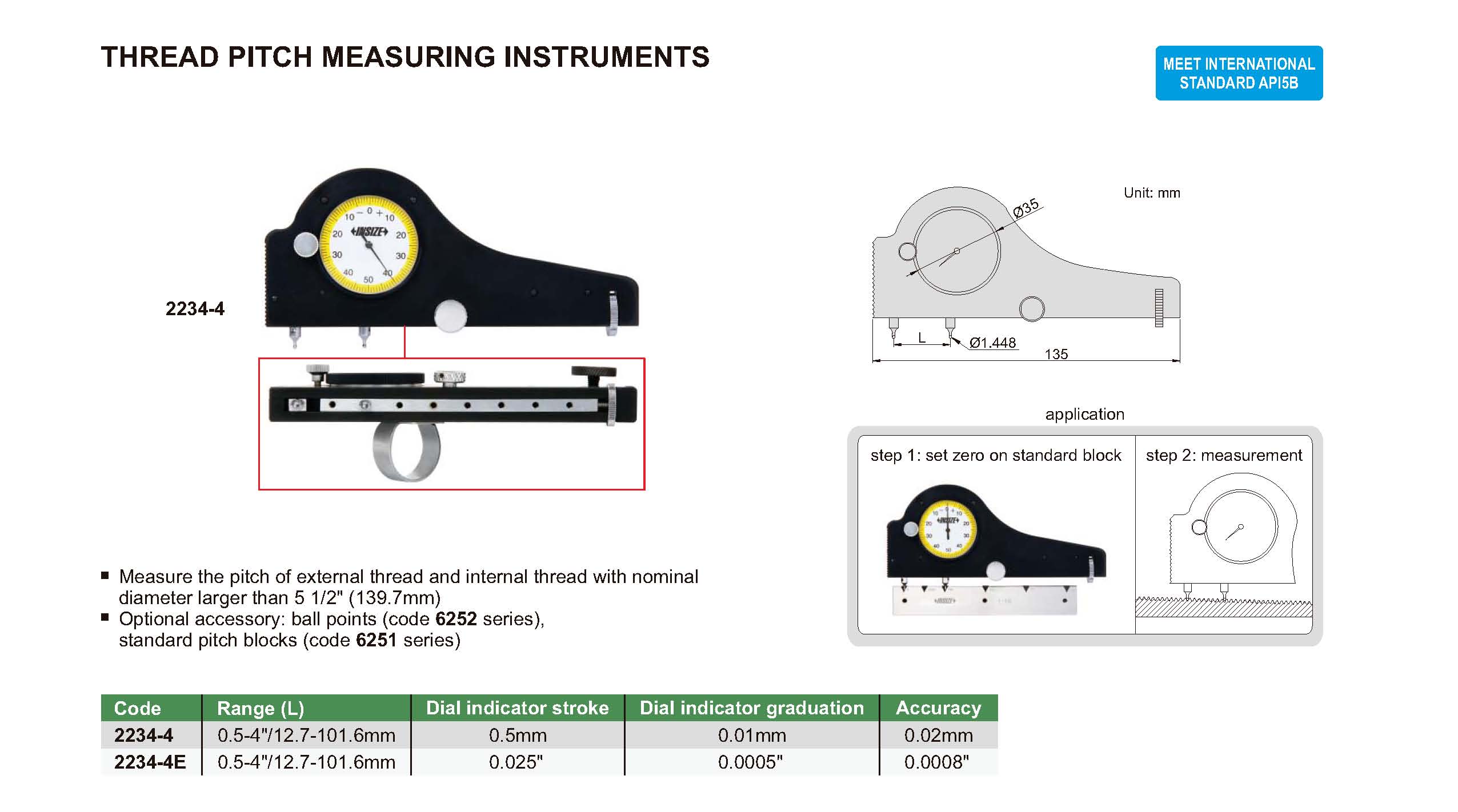

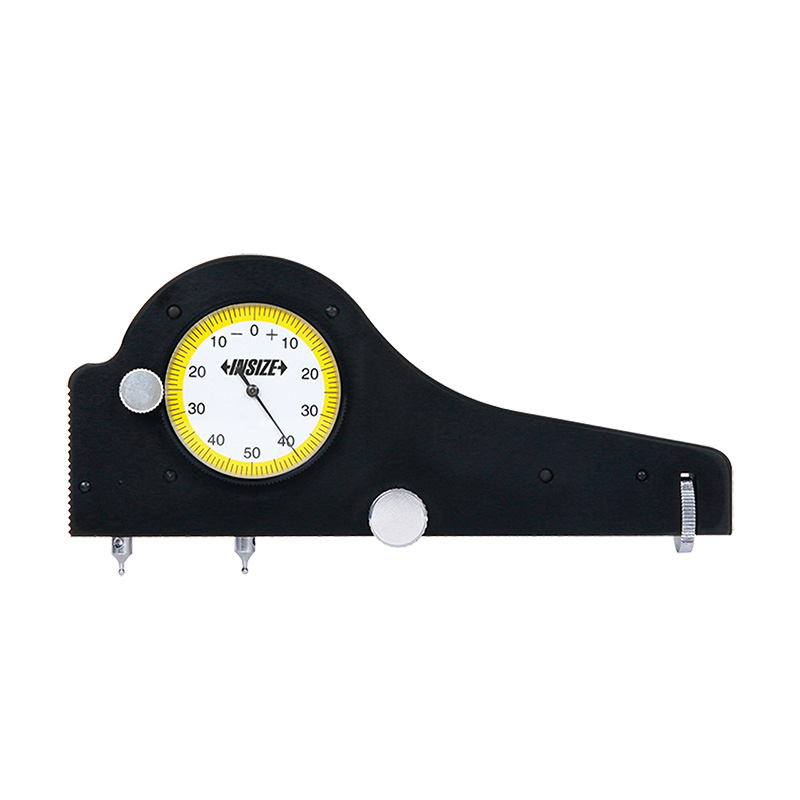

Thread Pitch Measuring Instruments
Code: 2234
Measure the pitch of external thread and internal thread with nominal diameter larger than 5 1/2" (139.7mm)
| Code | Range | Accuracy | Graduation |
|---|---|---|---|
| 2234-4 | 0.5-4"/12.7-101.6mm | 0.02mm | 0.01mm |
| 2234-4E | 0.5-4"/12.7-101.6mm | 0.0008" | 0.0005" |
