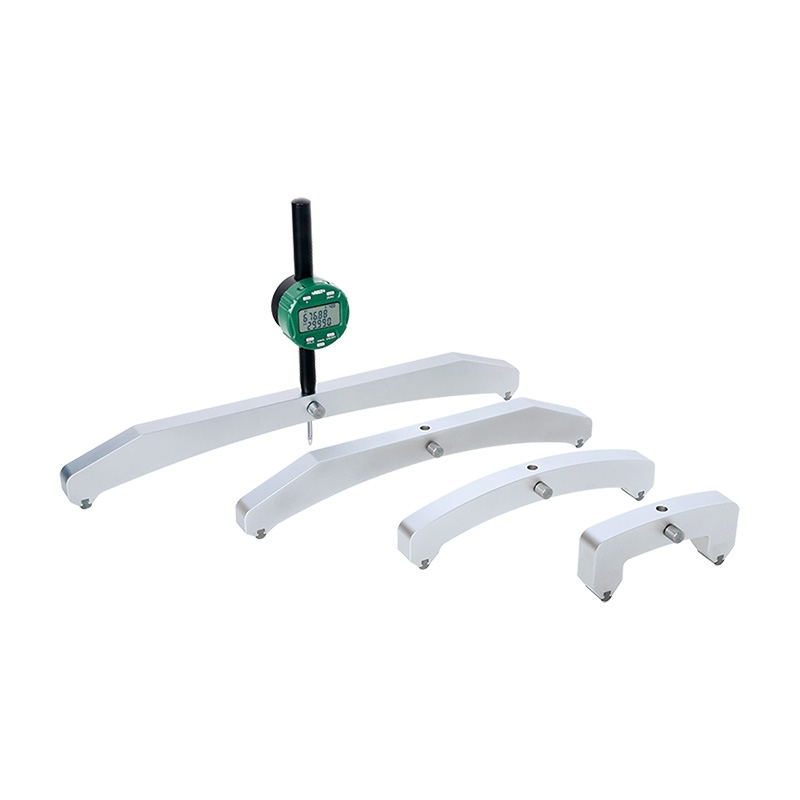

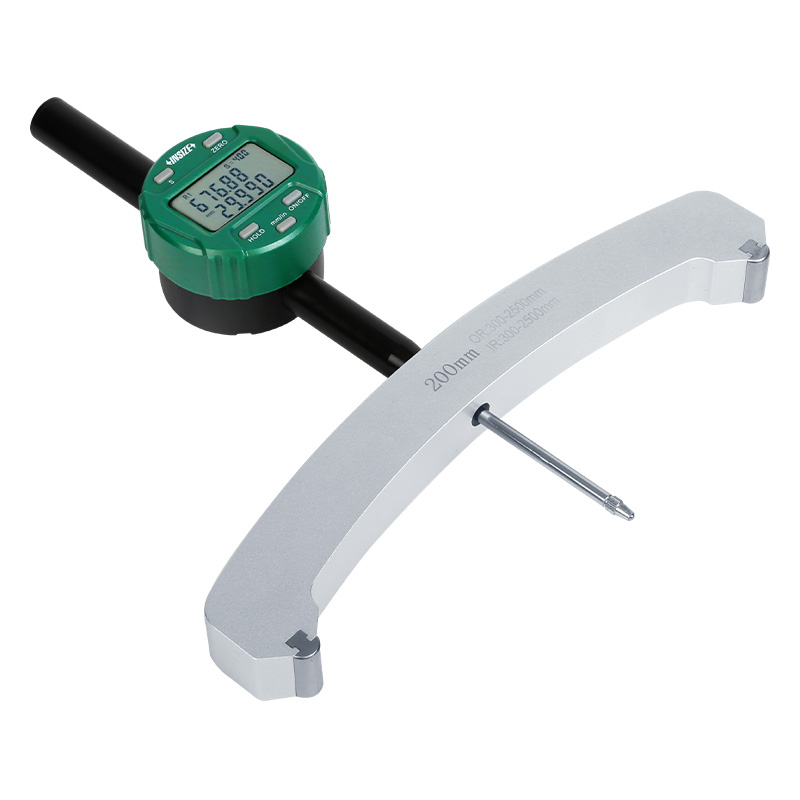

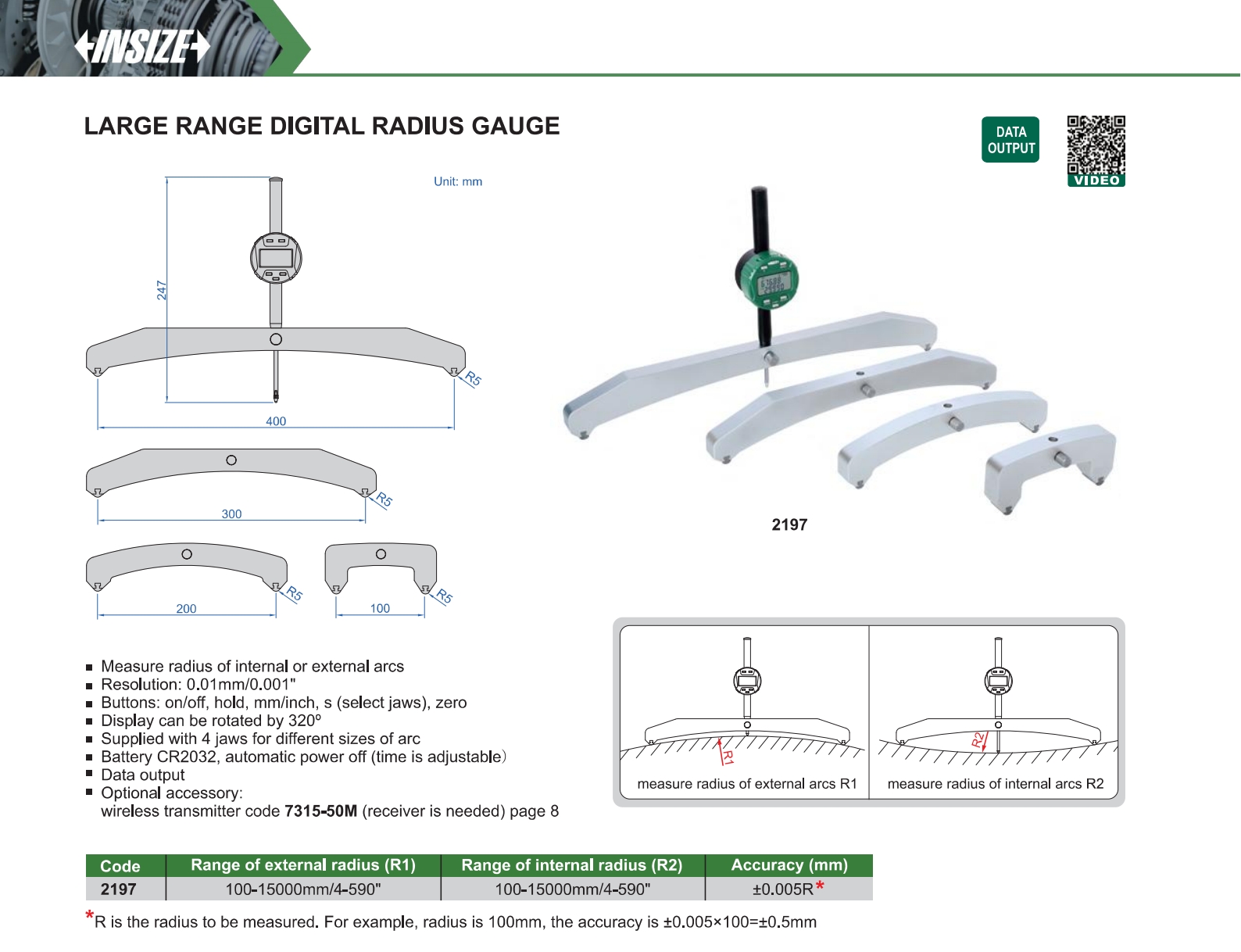

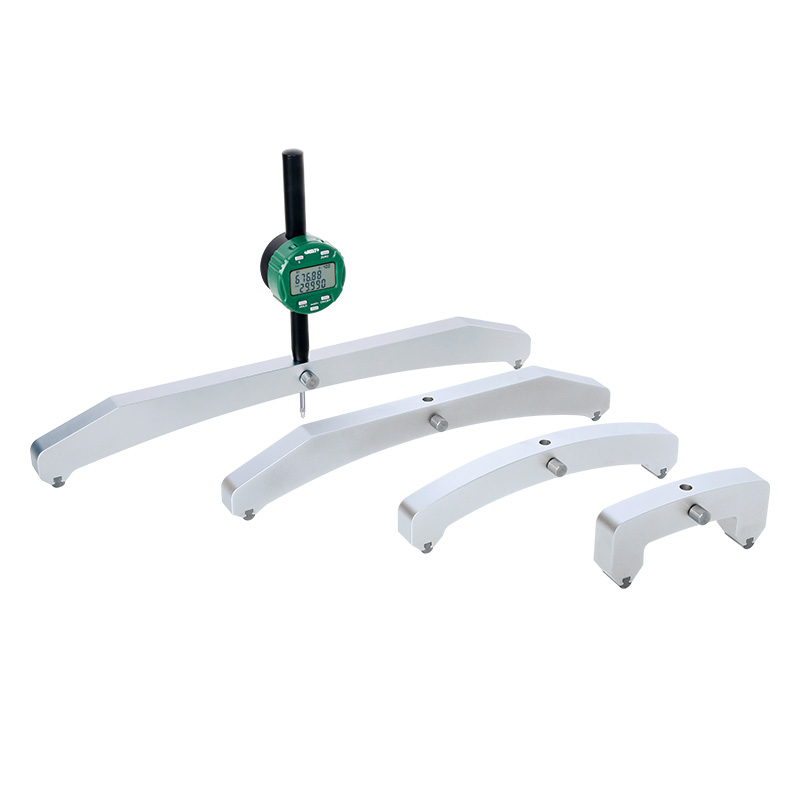

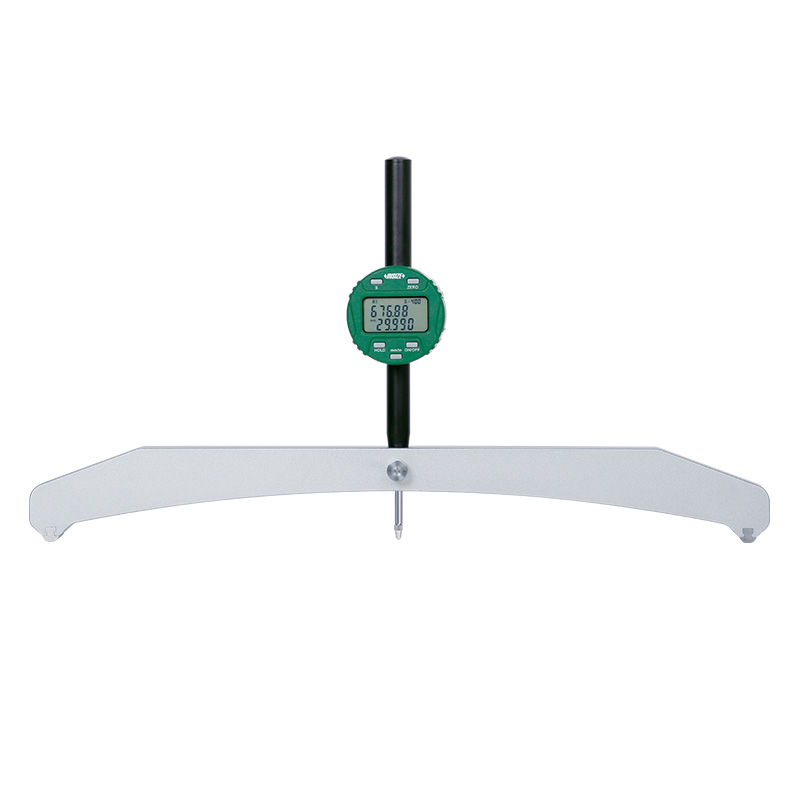

Measure radius of internal or external arcs
Buttons: on/off, hold, mm/inch, s (select jaws), zero
Display can be rotated by 320º
Supplied with 4 jaws for different sizes of arc
Battery CR2032, automatic power off (time is adjustable)
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2197 | 100-15000mm/4-590" | ±0.005R(mm) | 0.01mm/0.001" |
