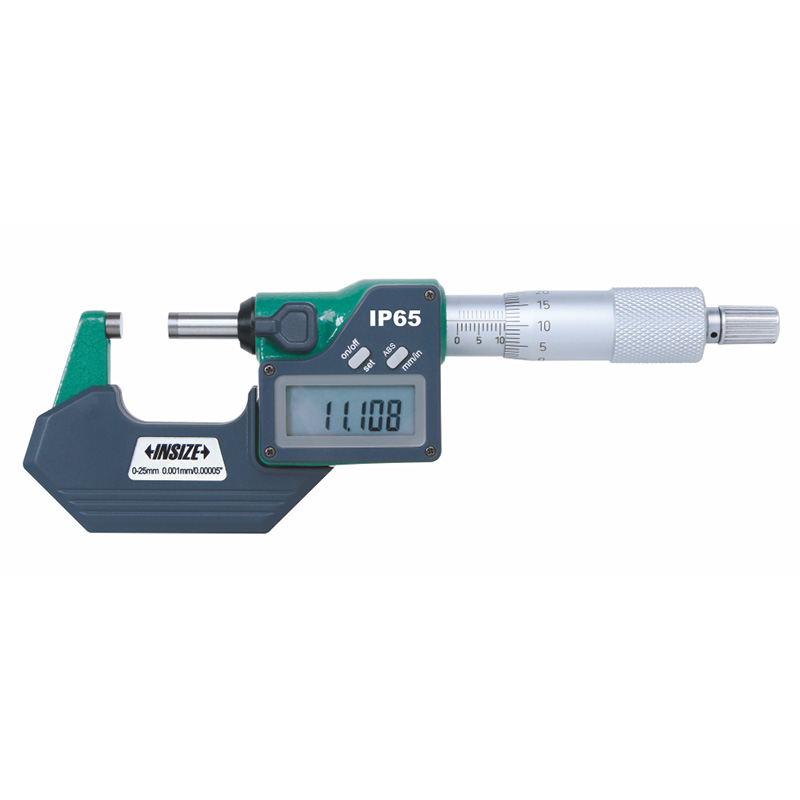

Waterproof Digital Outside Micrometers (Without Data Output)
Code: 3108
Button function: on/off, set, mm/inch, ABS/INC
No data output
Automatic power off
Carbide measuring faces
Supplied with spherical anvil
| Code | Type | Range | Accuracy | Resolution |
|---|---|---|---|---|
| 3108-25A | ratchet stop | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |
| 3108-50A | ratchet stop | 25-50mm/1-2" | ±2μm | 0.001mm/0.00005" |
| 3108-75A | ratchet stop | 50-75mm/2-3" | ±3μm | 0.001mm/0.00005" |
| 3108-100A | ratchet stop | 75-100mm/3-4" | ±3μm | 0.001mm/0.00005" |
| 3108-125A | ratchet stop | 100-125mm/4-5" | ±3μm | 0.001mm/0.00005" |
| 3108-150A | ratchet stop | 125-150mm/5-6" | ±3μm | 0.001mm/0.00005" |
| 3108-175A | ratchet stop | 150-175mm/6-7" | ±4μm | 0.001mm/0.00005" |
| 3108-200A | ratchet stop | 175-200mm/7-8" | ±4μm | 0.001mm/0.00005" |
| 3108-25FA | friction thimble | 0-25mm/0-1" | ±2μm | 0.001mm/0.00005" |

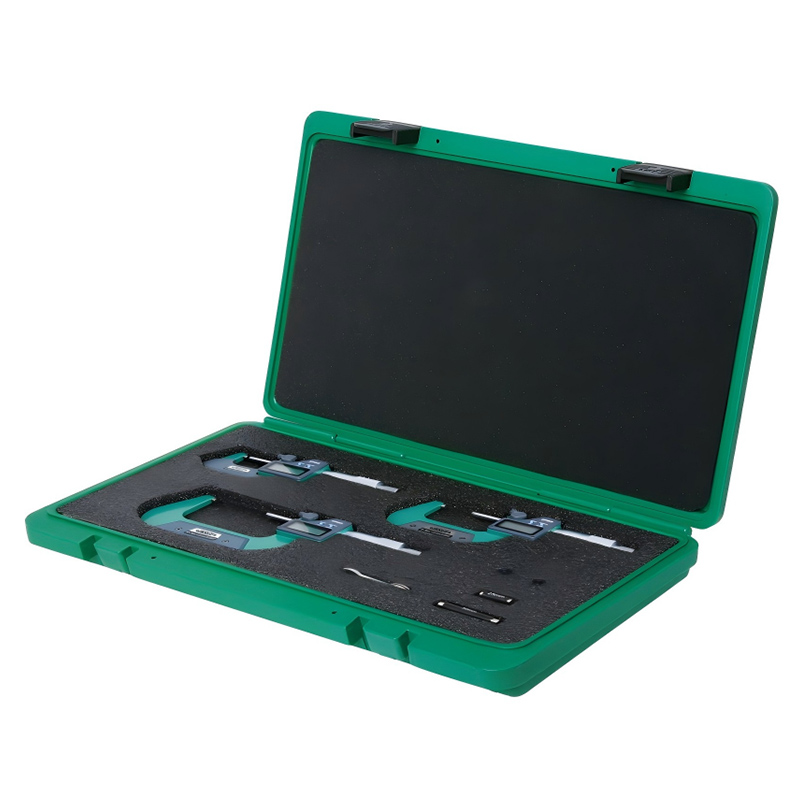

| 3108-753A(set) | ratchet stop | 0-75mm/0-3" | ±2~±3μm | 0.001mm/0.00005" |
| 3108-1004A(set) | ratchet stop | 0-100mm/0-4" | ±2~±3μm | 0.001mm/0.00005" |

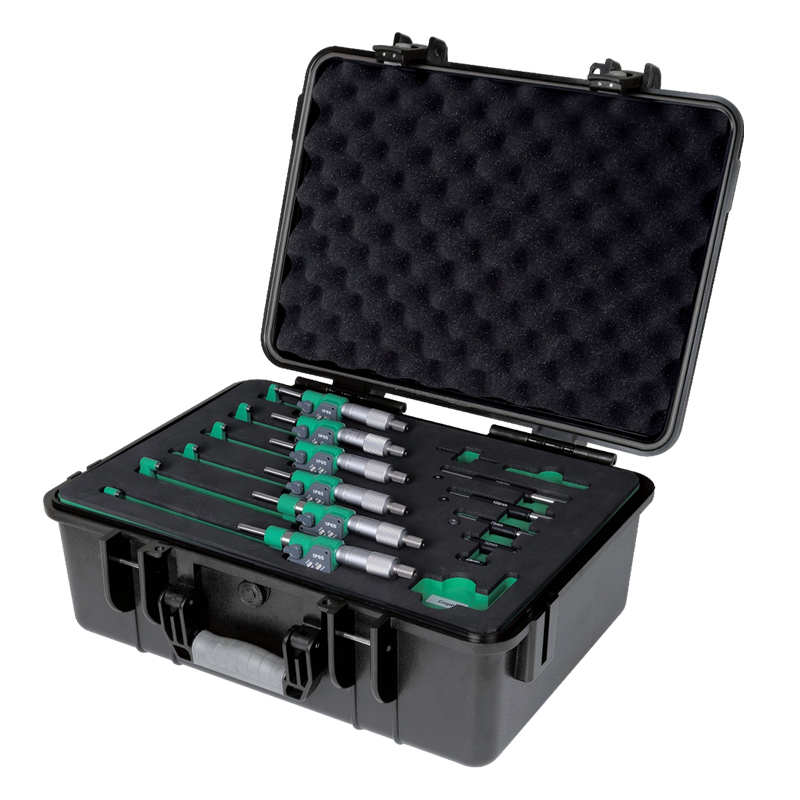

| 3108-1506A(set) | ratchet stop | 0-150mm/0-6" | ±2~±3μm | 0.001mm/0.00005" |
