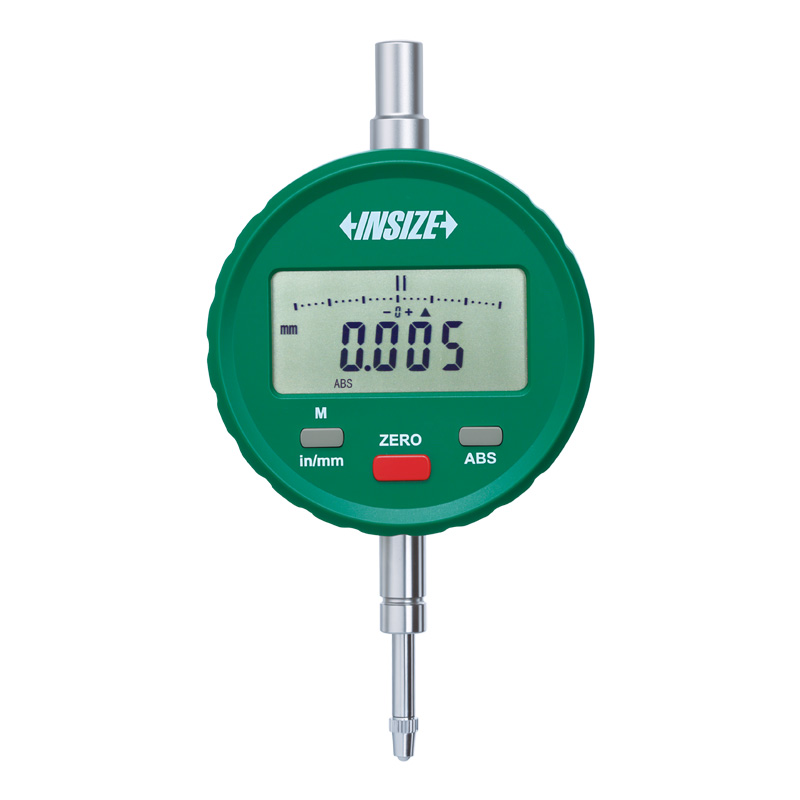

Digital Indicators (Standard Type)
Code: 2504
Reading in digital and analog
Button function: on/off, zero, inch/metric conversion, measuring direction change, absolute/incremental measurement, switch resolution (for 2504-101F)
Absolute system, data remains after power off
CR2032 battery, automatic power off (time is adjustable)
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2504-10F | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2504-101F | 12.7mm/0.5" | 10µm | 0.005mm/0.0005" (can switch to 0.01mm/0.0005") |
View the complete
product specifications
