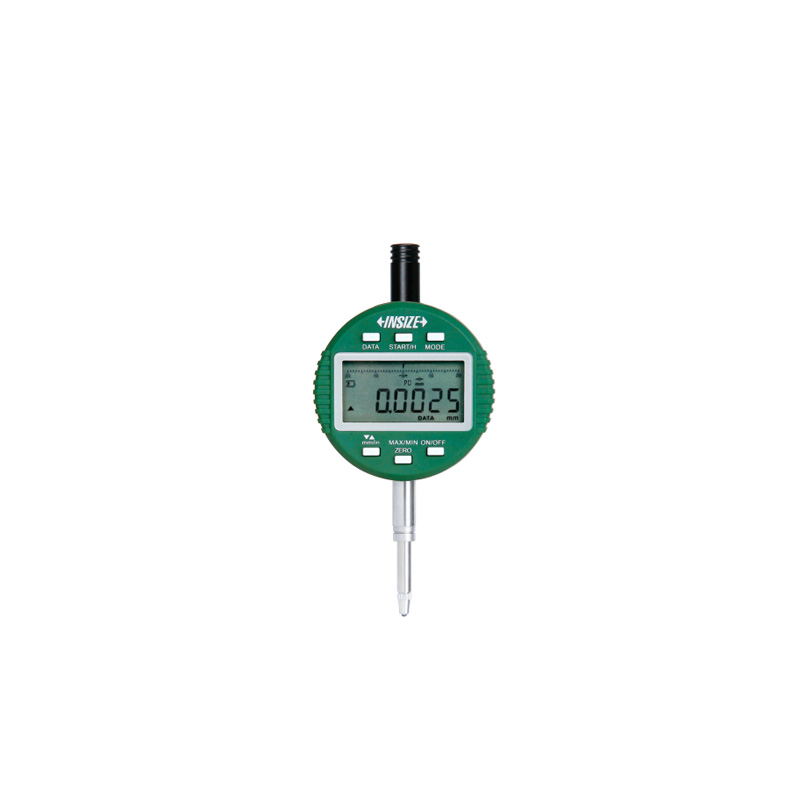

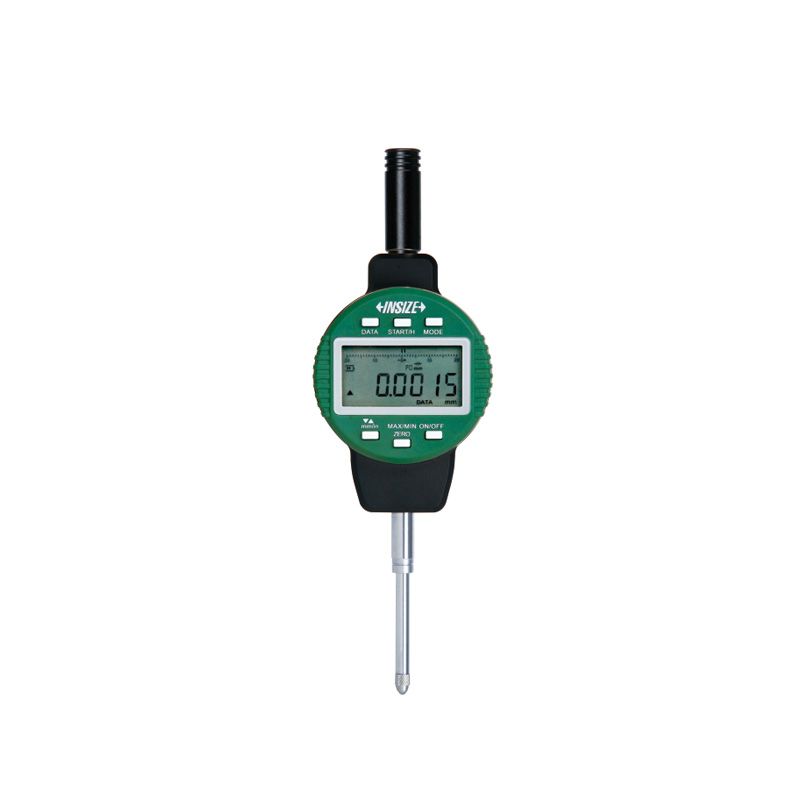

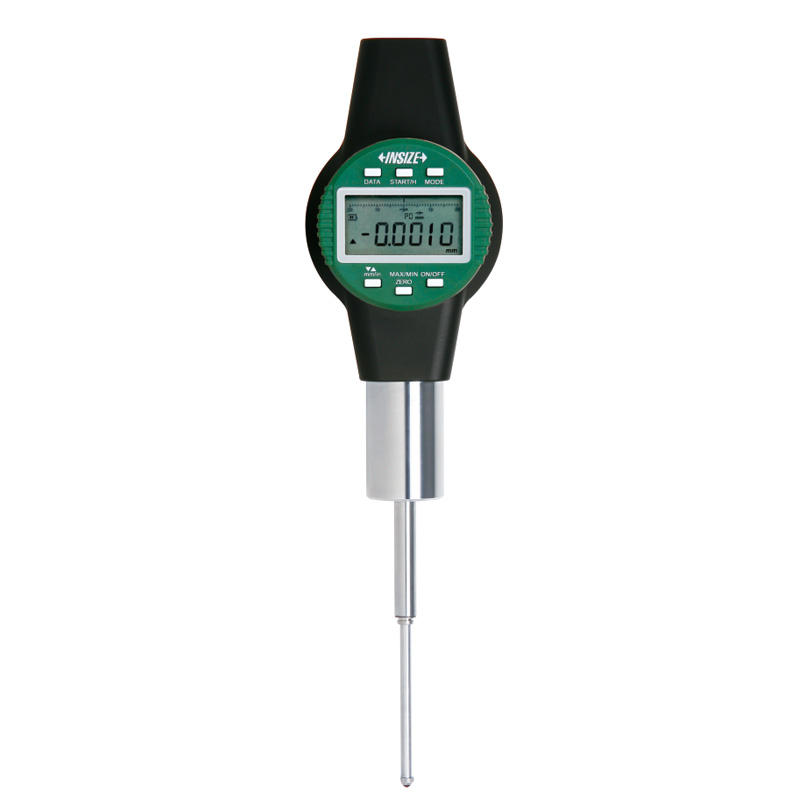

Wireless High Precision Digital Indicators
Code: 2134
Built-in wireless transmission
Transmission distance is 10 meters (under the condition of no obstruction and no electromagnetic interference)
Linear ball bearings for ten million times use
Absolute encoder, the original data remains after power off
Reading in digital and analog
Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, mm/inch, adjust resolution
Power: rechargeable battery, for 24 hours continuous working
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2134-10A | 12.7mm/0.5" | 3µm | 0.0005mm/0.00002" |
| 2134-10AL | 12.7mm/0.5" | 3µm | 0.0005mm/0.00002" |
| 2134-25A | 25.4mm/1" | 3µm | 0.0005mm/0.00002" |
| 2134-50A | 50.8mm/2" | 3µm | 0.0005mm/0.00002" |
| 2134-101A | 12.7mm/0.5" | 1.5µm | 0.0002mm/0.00001" |
| 2134-101AL | 12.7mm/0.5" | 1.5µm | 0.0002mm/0.00001" |
| 2134-251A | 25.4mm/1" | 1.8µm | 0.0002mm/0.00001" |
| 2134-10AS | 12.7mm/0.5" | 3µm | 0.0005mm/0.00002" |
| 2134-10ALS | 12.7mm/0.5" | 3µm | 0.0005mm/0.00002" |
| 2134-25AS | 25.4mm/1" | 3µm | 0.0005mm/0.00002" |
| 2134-50AS | 50.8mm/2" | 3µm | 0.0005mm/0.00002" |
| 2134-101AS | 12.7mm/0.5" | 1.5µm | 0.0002mm/0.00001" |
| 2134-101ALS | 12.7mm/0.5" | 1.5µm | 0.0002mm/0.00001" |
| 2134-251AS | 25.4mm/1" | 1.8µm | 0.0002mm/0.00001" |
