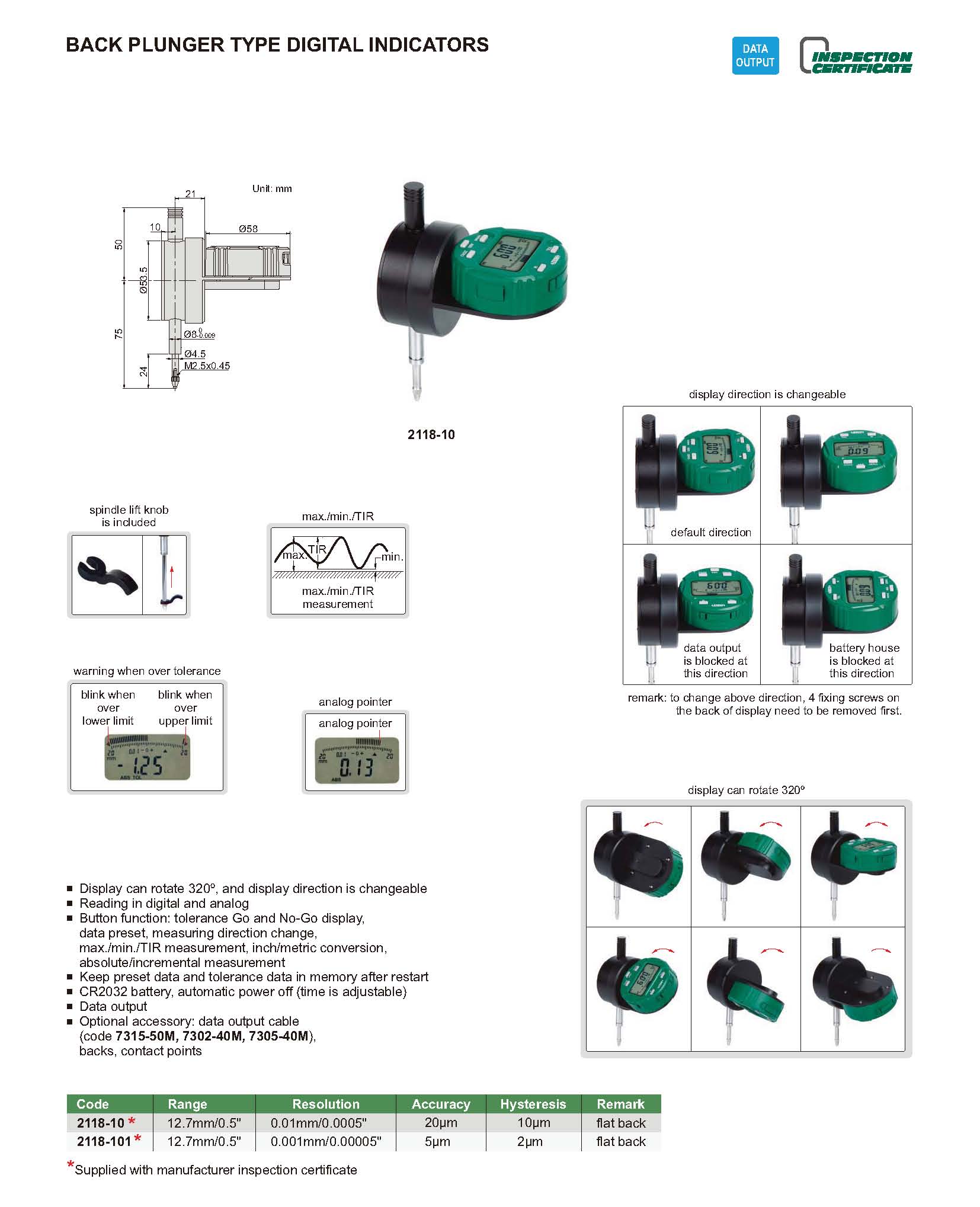

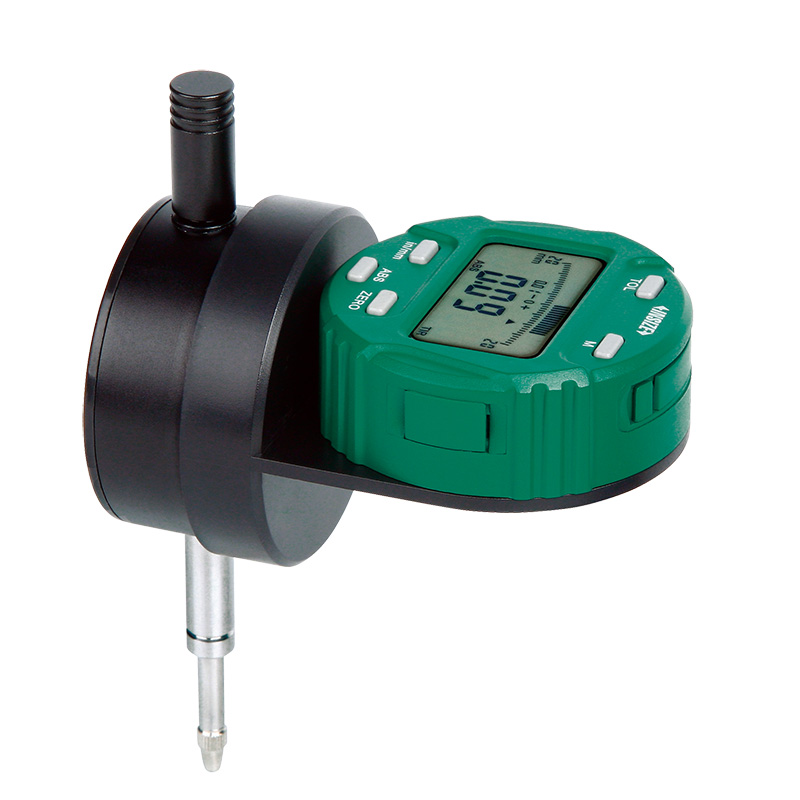

Back Plunger Type Digital Indicators
Code: 2118
Display can rotate 320º, and display direction is changeable
Reading in digital and analog
Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion,absolute/incremental measurement
Keep preset data and tolerance data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2118-10 | 12.7mm/0.5" | 20µm | 0.01mm/0.0005" |
| 2118-101 | 12.7mm/0.5" | 5µm | 0.001mm/0.00005" |
