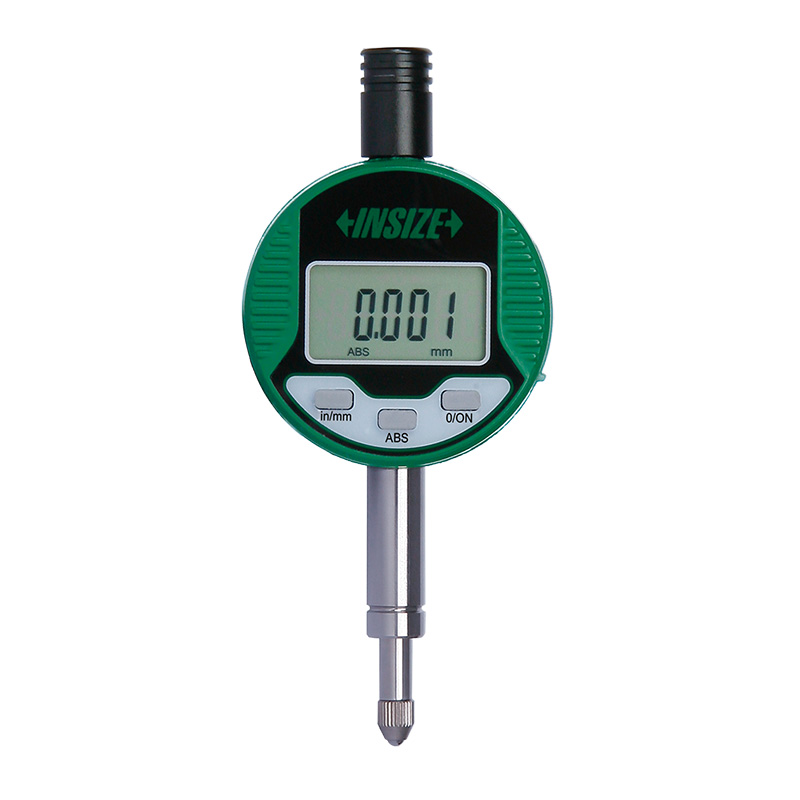

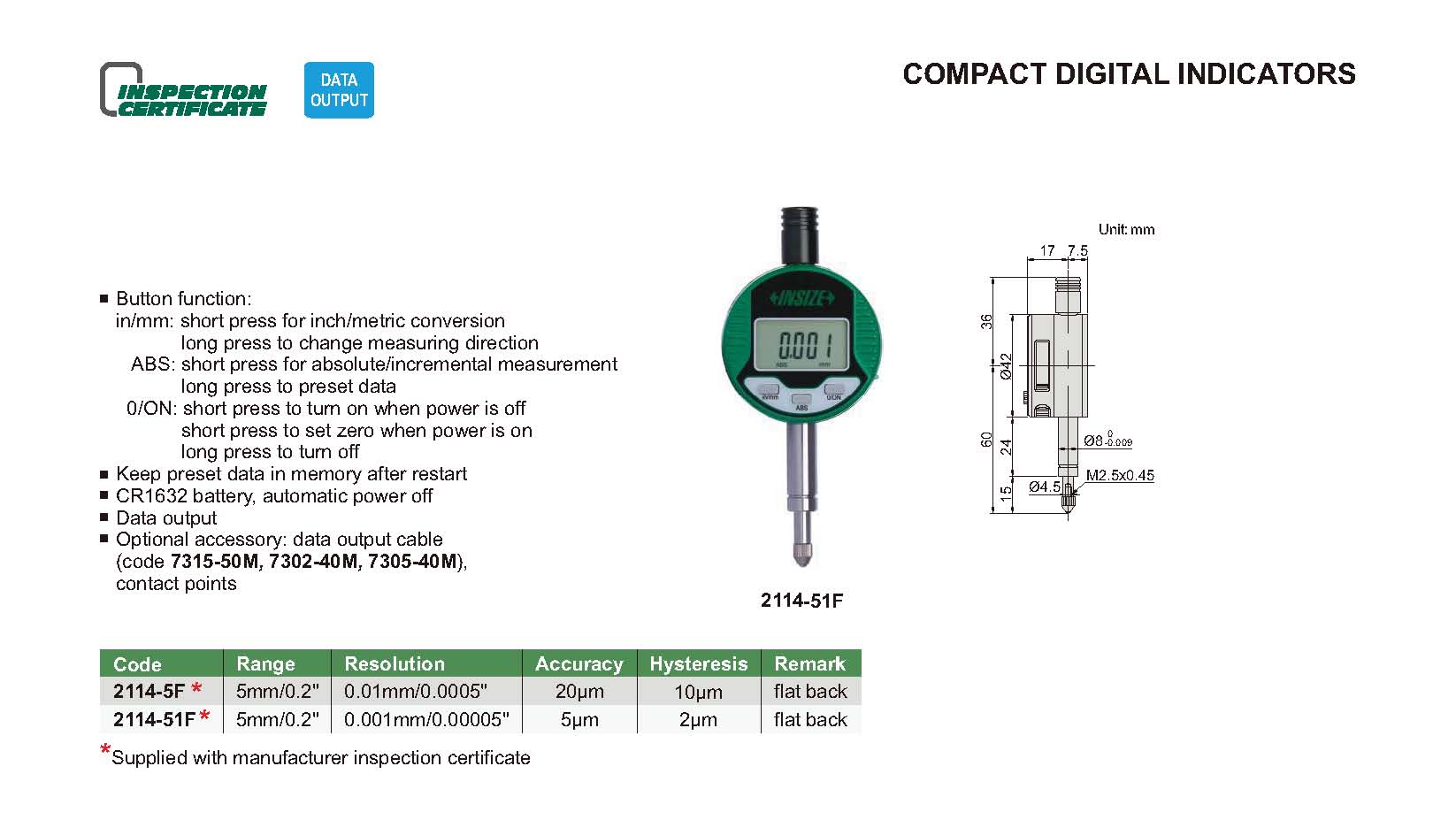

Compact Digital Indicators
Code: 2114
Button function:in/mm: short press for inch/metric conversion long press to change measuring direction, ABS: short press for absolute/incremental measurement long press to preset data, 0/ON: short press to turn on when power is off short press to set zero when power is on long press to turn off
Keep preset data in memory after restart
CR1632 battery, automatic power off
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2114-5F | 5mm/0.2" | 20µm | 0.01mm/0.0005" |
| 2114-51F | 5mm/0.2" | 5µm | 0.001mm/0.00005" |
