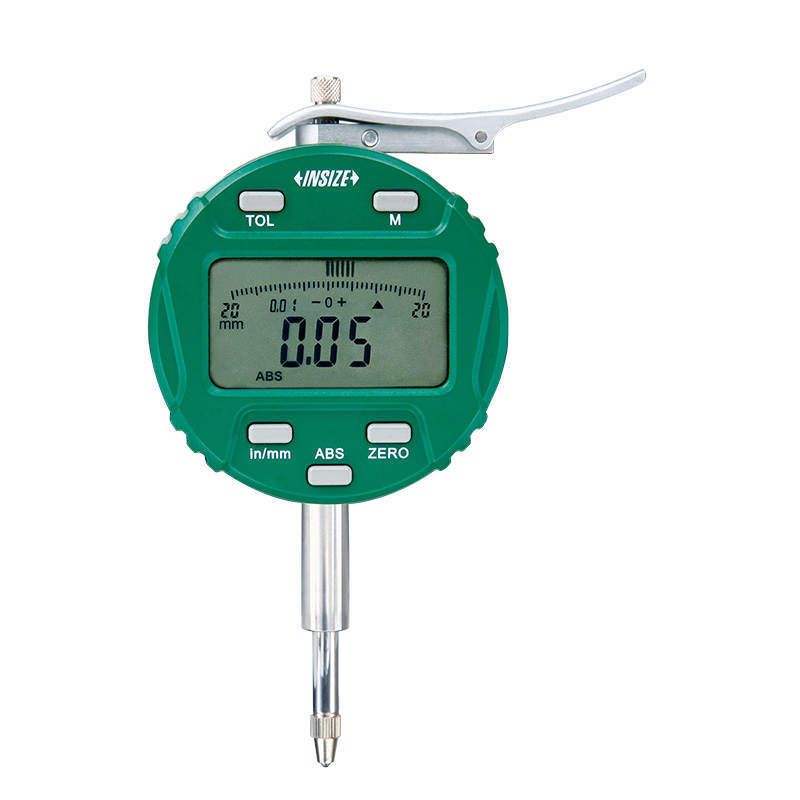

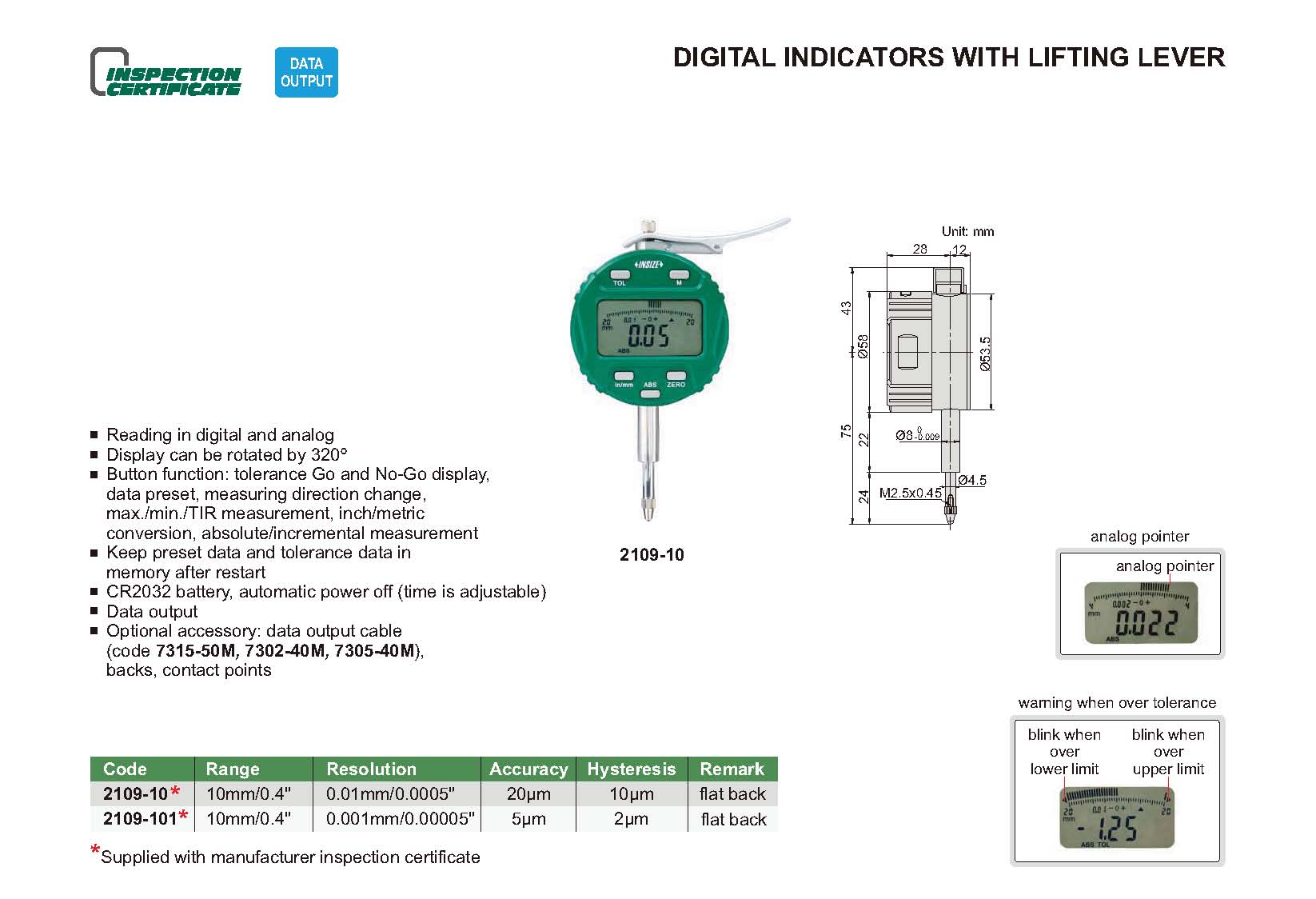

Digital Indicators With Lifting Lever
Code: 2109
Reading in digital and analog
Display can be rotated by 320º
Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion,absolute/incremental measurement
Keep preset data and tolerance data in memory after restart
CR2032 battery, automatic power off (time is adjustable)
| Code | Range | Accuracy | Resolution |
|---|---|---|---|
| 2109-10 | 10mm/0.4" | 20µm | 0.01mm/0.0005" |
| 2109-101 | 10mm/0.4" | 5µm | 0.001mm/0.00005" |
