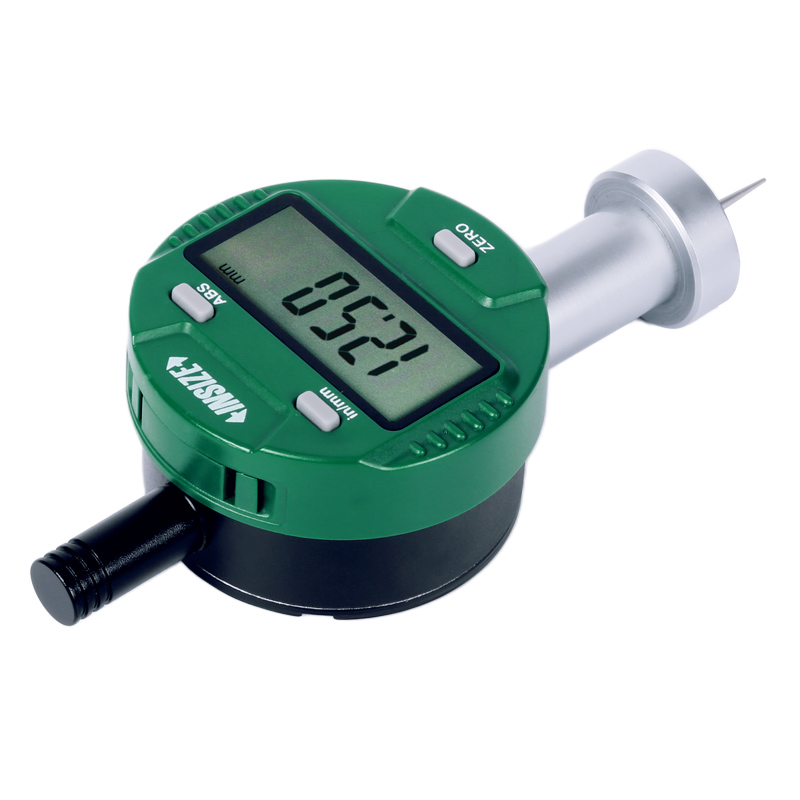

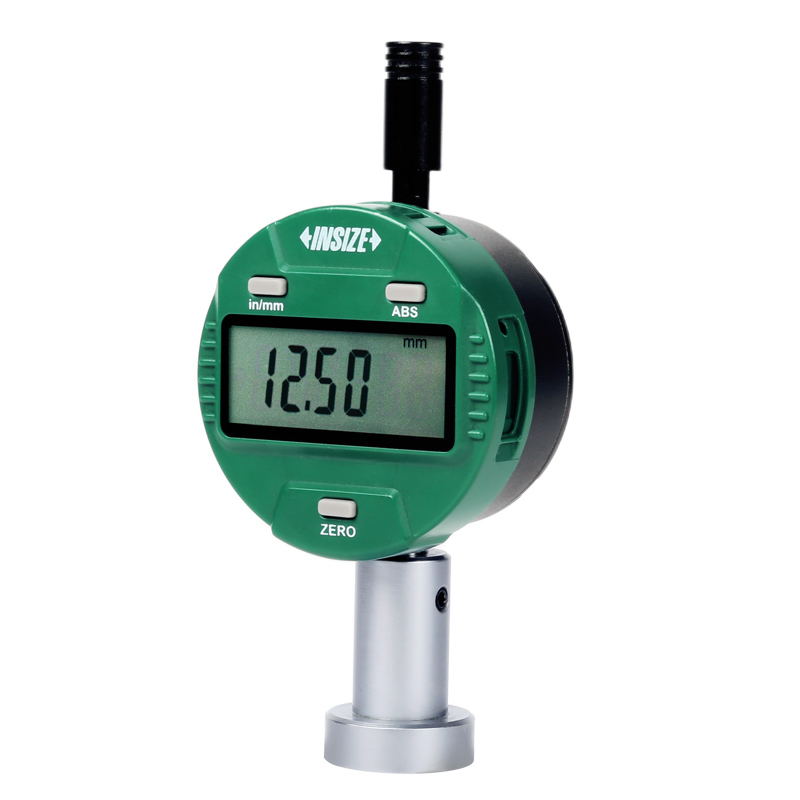

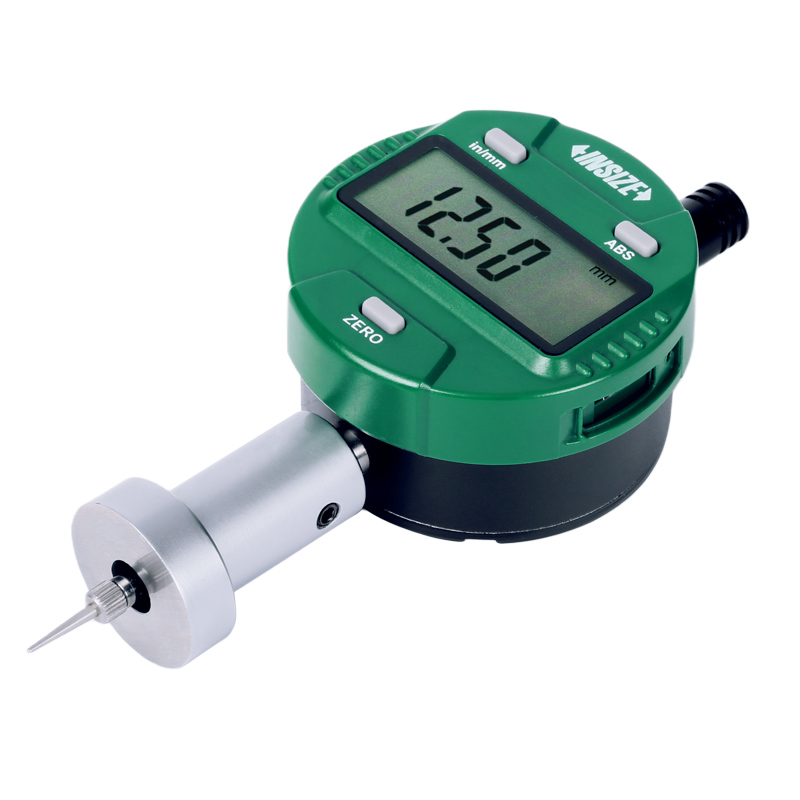

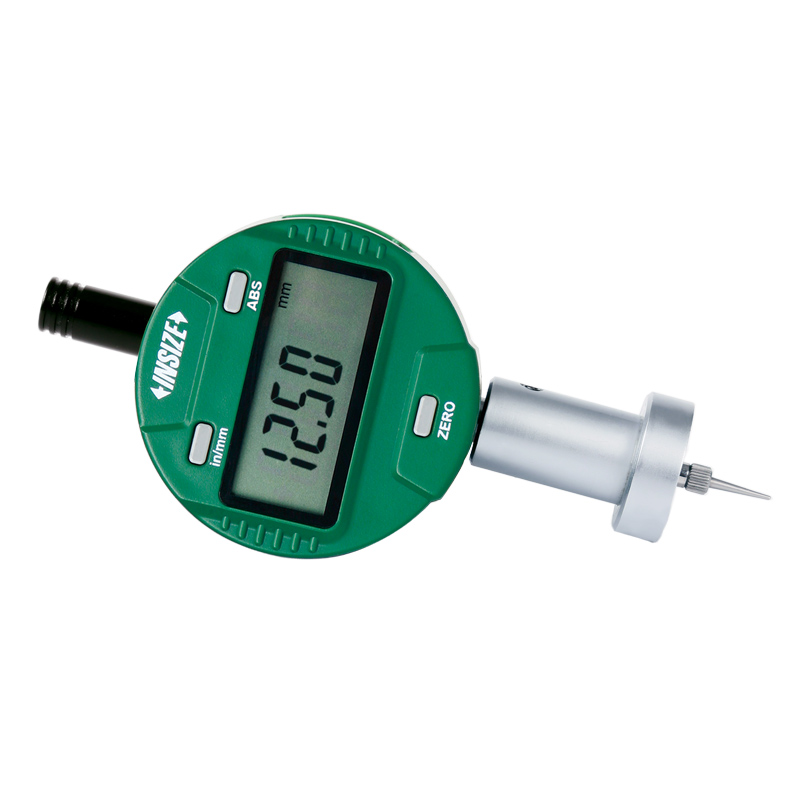

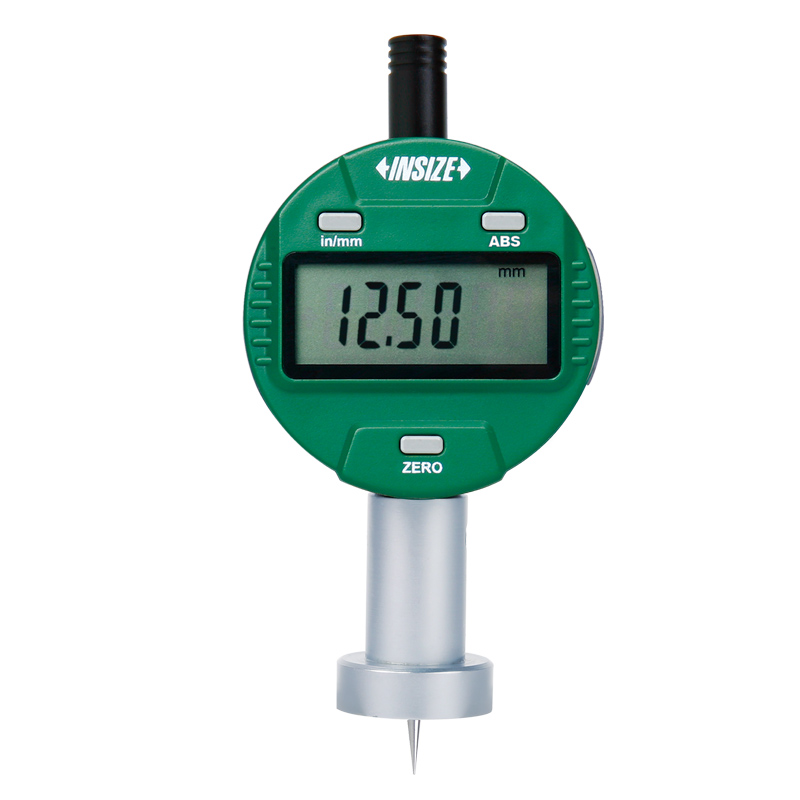

Digital Depth Gauges
Code: 2142
Button function: on/off, zero, mm/inch, ABS, data preset, change measuring direction
CR2032 battery, automatic power off (time is adjustable)
Data output
Stainless steel base
Pointed tip

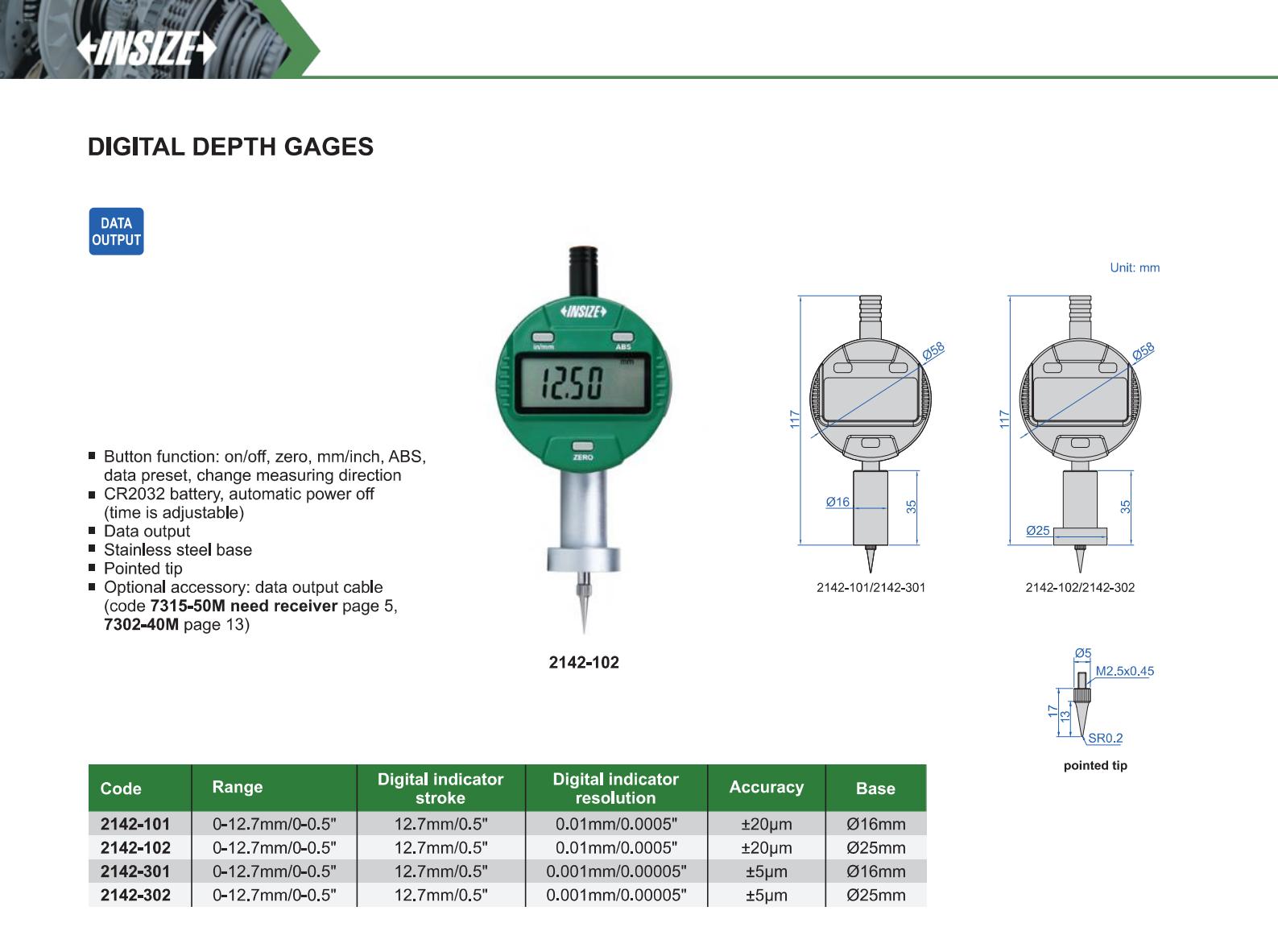

| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 2142-101 | 0-12.7mm/0-0.5" | ±20µm | 0.01mm/0.0005" | with data interface |
| 2142-102 | 0-12.7mm/0-0.5" | ±20µm | 0.01mm/0.0005" | with data interface |
| 2142-301 | 0-12.7mm/0-0.5" | ±5µm | 0.001mm/0.00005" | with data interface |
| 2142-302 | 0-12.7mm/0-0.5" | ±5µm | 0.001mm/0.00005" | with data interface |
